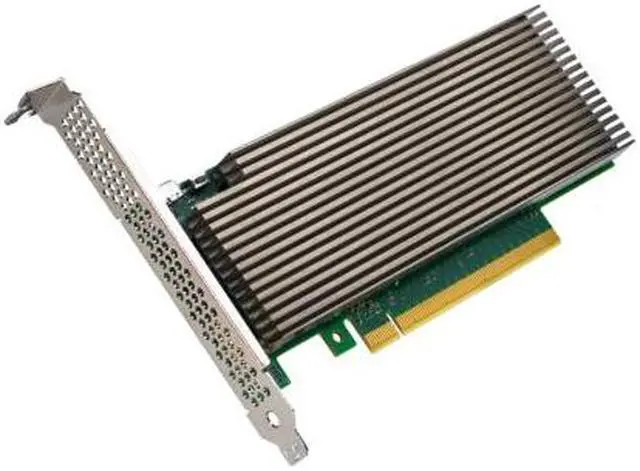

Dell VH5D6 Intel VRAN Accelerator ACC100 PCIe Adapter

DELL VH5D6 Intel Vran Accelerator Acc100 Pcie Adapter

Total

Specifications

:

Adapter Features:

Bus Type/bus Width Pcie 3.0 X16

Accelerator Intel Vran Dedicated Accelerator Acc100

Dimension: 6.67 In X 2.70 In (169 Mm X 69 Mm)

Fec Acceleration Features:

Ldpc Fec Processing For 3gpp 5g:


Ldpc Encoder/decoder

Code Block Crc Generation/checking

Rate Matching/de-matching

Harq Buffer Management

Turbo Fec Processing For 3gpp 4g:

Turbo Encoder/decoder

Code Block Crc Generation/checking

Rate Matching/de-matching

Load Balancing Supported By The Hardware Queue Manager (qmgr) Arbitrates Uplink And Downlink Block Requests Based On Bandwidth Allocation And Priority.

Manageability:

Smbus Operates At Up To 1mbps

Pldm Over Mctp Over Smbus: Supports Pldm 2.1


Voltage Sensors - All Primary And Secondary Adapter Voltages

Temperature Sensors - Adapter, Ddr, And Bracket Ambient

Power Sensor - Overall Board Power

Warning/fatal Thresholds - Can Be Programmed

Hardware-based Emergency Shutdown Shuts Down Controller When Card Is Over Temperature Or Over Voltage.

Power Consumption:

Power 53w

Thermals And Airflow


55 °c - 550 Lfm


61 °c - 650 Lfm

Supported Operating Systems And Software:


Interface Through The Dpdk Bbdev Library And Apis

Support In Flexran Software Reference Architecture

Linux Os Supported

Condition: Brand New.
Availability: In Stock.
Our Warranty: 30 Days.
