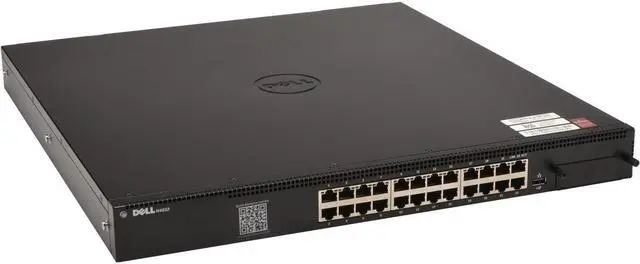

Dell 210-ABVY Networking N4032 Switch 24 Ports L3 Managed Stackable.

DELL 210-ABVY Networking N4032 Switch 24 Ports L3 Managed Stackable.

Key Features:


Device Type: Switch - 24 Ports - L3 - Managed - Stackable

Enclosure Type: Rack-mountable 1u

Subtype: 10 Gigabit Ethernet

Ports: 24 X 10gbase-t

Performance: Switching
Fabric Bandwidth: 640 Gbps Forwarding Performance: 476 Mpps

Capacity: Mac
Addresses: 131072
Ipv4 Routes (static): 1024
Ipv6 Routes (static): 1024
Ipv4 Routes (dynamic): 8160
Ipv6 Routes (dynamic): 4096
Maximum Member Ports Per Lag: 8 Maximum Dynamic Ports Per Switch Stack: 144
Lag Groups: 128
Priority Queues Per Port: 8
Ospf Routes: 8160
Rip Routes: 512
Ecmp Next Hops Per Route: 4
Ecmp Groups: 1024
Vlan Routing Interfaces: 128
Vlans Supported: 4094
Multicast Entries (ipv4): 512
Multicast Entries (ipv6): 256
Arp Entries: 6144
Ndp Entries: 400
Acl: 100
Maximum Rules Per Acl: 1023
Max Acl Rules System-wide: 3072 Maximum Acl Rules Per Interface (ipv4)
Egress Rules: 1023 Maximum Acl Rules Per Interface (ipv4)
Ingress Rules: 2047 Maximum Acl Rules Per Interface (ipv6)
Egress Rules: 512 Maximum Acl Rules Per Interface (ipv6)
Ingress Rules: 1021 Maximum Vlan Interfaces With Acls Applied: 24

Mac Address Table Size: 131072 Entries

Routing Protocol: Ospf, Rip-1, Rip-2, Igmpv2, Igmp, Vrrp, Ospfv2, Pim-sm, Pim-dm, Igmpv3, Ospfv3, Mldv2, Mld

Remote Management Protocol: Snmp 2, Snmp, Rmon, Http, Ssh

Encryption Algorithm: Aes, Ssl, Tls 1.0

Authentication Method: Radius, Tacacs+, Ldap

Features: Layer 3 Switching, Layer 2 Switching, Mdi/mdi-x Switch, Auto-negotiation, Port Mirroring, Stackable, Broadcast Storm Control, Ip Address Filtering, Access Control List (acl) Support, Quality Of Service (qos), Dynamic Arp Inspection (dai), Lldp Support, Remote Switch Port Analyzer (rspan), Management Information Base (mib), Dual Firmware Images, Redundant Fans, Mac And Ip-based Acls Support, Time-controlled Acls Support, Protocol-based Vlans Support

Compliant Standards: Ieee 802.2, Ieee 802.3, Ieee 802.3 u, Ieee 802.3 z, Ieee 802.1 d, Ieee 802.1 q, Ieee 802.3 ab, Ieee 802.1 p, Ieee 802.3 x, Ieee 802.3 ad (lacp), Ieee 802.1 w, Ieee 802.1 x, Ieee 802.3 ae, Ieee 802.3 ac, Ieee 802.1 s, Ieee 802.1 v, Ansi/tia-1057, Ieee 802.1 ag, Ieee 802.1 ab (lldp), Ieee 802.3 az, Ieee 802.1 qbb, Ieee 802.1 qaz

Ram: 2 Gb

Flash Memory: 256 Mb

Expansion / Connectivity:
Interfaces:

24 X 10gbase-t Rj-45

1 X Gigabit Lan Rj-45 Management

1 X Serial (rs-232) Rj-45 Management

1 X Usb Type A Management

Expansion Slots:

1 (total) / 1 (free) X Expansion Slot

Power:

Power Device: Internal Power Supply - Hot-plug

Installed Qty: 2 (installed) / 2 (max)

Power Redundancy: Yes

Power Provided: 460 Watt

Power Consumption Operational: 240 Watt
