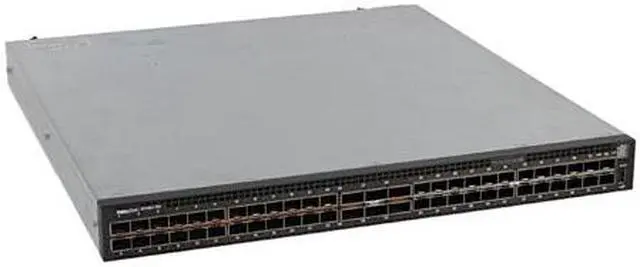

Dell CP2T8 Emc Networking S4148U-ON Managed L3 Switch

DELL CP2T8 Emc Networking S4148u-on Managed L3 Switch - 48 10-gigabit Sfp+ Ports & 4 100 Gigabit Qsfp28 Ports & 2 40-gigabit Qsfp+ Ports.

Key Features


Device Type: Switch - 48 Ports - L3 - Managed

Enclosure Type: Front To Back Airflow Rack-mountable 1u

Subtype: 10 Gigabit Ethernet

Ports: 48 X 10 Gigabit Sfp+ + 4 X 100 Gigabit Qsfp28 + 2 X 40 Gigabit Qsfp+

Performance: Switching Capacity: 1.76 Tbps Throughput: 1320 Mpps

Capacity: arp
Entries: 200000
Ipv4 Routes: 200000
Ipv6 Routes: 130000
Ipv6 Hosts: 130000
Multicast Hosts: 8000
Links Per Group: 32
Link Aggregation Groups: 128 Layer 2
Vlans: 4000 Layer 2
Vlans: 500
Mstp Instances: 32
Pvst Instances: 128 Maximum Acl Rules Per Interface (ipv4)
Ingress Rules: 6000 Maximum Acl Rules Per Interface (ipv4)
Egress Rules: 1000 Maximum Acl Rules Per Interface (ipv6)
Ingress Rules: 3000 Maximum Acl Rules Per Interface (ipv6)
Egress Rules: 500

Mac Address Table Size: 272000 Entries

Routing Protocol: Ospf, Bgp-4, Ospfv2, Policy-based Routing (pbr)

Remote Management Protocol: Snmp 1, Snmp 2

Encryption Algorithm: Md5

Authentication Method: Radius, Tacacs

Features: Flow Control, Arp Support, Port Mirroring, Spanning Tree Protocol (stp) Support, Rapid Spanning Tree Protocol (rstp) Support, Virtual Route Redundancy Protocol (vrrp) Support, Multiple Spanning Tree Protocol (mstp) Support, Access Control List (acl) Support, Quality Of Service (qos), Lacp Support, Lldp Support, Dynamic Vlan Support (gvrp), 4 Fans, Priority-based Flow Control (pfc), Internet Control Message Protocol (icmp), Dns Client

Compliant Standards: Ieee 802.3 u, Ieee 802.3 i, Ieee 802.3 z, Ieee 802.1 d, Ieee 802.1 q, Ieee 802.3 ab, Ieee 802.1 p, Ieee 802.3 x, Ieee 802.3 ad (lacp), Ieee 802.1 w, Ieee 802.1 x, Ieee 802.3 ae, Ieee 802.3 ac, Ieee 802.1 s, Ieee 802.1 t, Ieee 802.1 ab (lldp), Ieee 802.3 ba, Ieee 802.1 qbb, Ieee 802.1 qaz, Ieee 802.3 bj

Ram: 4 Gb

Expansion / Connectivity
Interfaces:

24 X 10gbit Lan Sfp+

24 X 8/16gb Fibre Channel Sfp+

2 X 40gbit Lan Qsfp+

4 X 25gbit Lan / 16/32gb Fibre Channel Qsfp28

1 X Serial (rs-232) Rj-45 Management

1 X 10/100/1000 Base-t Rj-45 Management

1 X Console (micro-usb) Rj-45

Power

Power Device: External Power Adapter - Hot-plug

Installed Qty: 2

Power Redundancy: Yes

Power Provided: 460 Watt

Voltage Required: Ac 120/230 V (50/60 Hz)

Power Consumption Operational: 460 Watt
