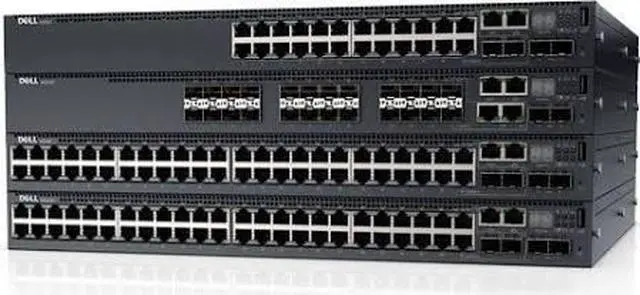

Dell 5T9WN EMC Networking N3048ET-ON 48 Ports Managed Switch

DELL 5T9WN Emc Networking N3048et-on Switch 48 Ports Managed Rack-mountable Switch

Key Features:

Device Type: Switch 48 Ports L3 Managed - Stackable

Enclosure Type: Rack-mountable 1u

Subtype: Gigabit Ethernet

Ports: 48 X 10/100/1000 + 2 X 10 Gigabit Sfp+ + 2 X Combo Gigabit Sfp

Performance: Switching Fabric Bandwidth: 260 Gbps Forwarding

Performance: 193 Mpps Stacking Bandwidth: 21 Gbps

Capacity: Ipv4
Routes (static): 1024
Ipv6 Routes (static): 1024
Ipv4 Routes (dynamic): 8160
Ipv6 Routes (dynamic): 4096 Maximum Member Ports Per
Lag: 8 Maximum Dynamic Ports Per Switch Stack: 144 Lag Groups: 128 Ospf
Routes: 8160
Rip Routes: 512
Ecmp Next Hops Per Route: 4
Ecmp Groups: 64
Vlan Routing Interfaces: 128
Vlans Supported: 4094
Multicast Entries (ipv4): 1536
Multicast Entries (ipv6): 512
Arp Entries: 6144
Ndp Entries: 400
Acl: 100
Maximum Rules Per Acl: 1023
Max Acl Rules System-wide: 4096 Maximum Acl Rules Per Interface (ipv4)
Egress Rules: 1024 Maximum Acl Rules Per Interface (ipv4)
Ingress Rules: 3072 Maximum Acl Rules Per Interface (ipv6)
Egress Rules: 512 Maximum Acl Rules Per Interface (ipv6)
Ingress Rules: 1021 Maximum Vlan Interfaces With Acls Applied: 24

Mac Address Table Size: 32k Entries

Routing Protocol: Ospf, Rip-1, Rip-2, Igmpv2, Igmp, Vrrp, Ospfv2, Pim-sm, Pim- Dm, Igmpv3, Ospfv3, Mldv2, Mld

Remote Management Protocol: Snmp 1, Snmp 2, Rmon 1, Rmon 2, Rmon 3, Rmon 9, Telnet, Snmp 3, Http, Tftp, Ssh-2

Encryption Algorithm: Md5, Aes, Ssl, Tls

Authentication Method: Radius, Tacacs+, Secure Shell V. 2 (ssh2)

Features: Flow Control, Mdi/mdi-x Switch, Auto-negotiation, Arp Support, Vlan Support, Port Mirroring, Diffserv Support, Weighted Round Robin (wrr) Queuing, Broadcast Storm Control, Ipv6 Support, Rapid Spanning Tree Protocol (rstp) Support, Multiple Spanning Tree Protocol (mstp) Support, Access Control List (acl) Support, Quality Of Service (qos), Stp Root Guard, Ipv4 Support, Lldp Support, Link Aggregation Control Protocol (lacp), Energy Efficient Ethernet, Management Information Base (mib), Dynamic Vlan Support (gvrp), Dual Firmware Images, Network Access Control (nac), Neighbor Discovery Protocol (ndp), Tagged Vlan, Redundant Fans, Protocol-based Vlans Support

Compliant Standards: Ieee 802.2, Ieee 802.3, Ieee 802.3 u, Ieee 802.3 z, Ieee 802.1 d, Ieee 802.1 q, Ieee 802.3 ab, Ieee 802.1 p, Ieee 802.3 x, Ieee 802.3 ad (lacp), Ieee 802.1 w, Ieee 802.1 x, Ieee 802.3 ae, Ieee 802.3 ac, Ieee 802.1 s, Ieee 802.1 v, Ieee 802.1 ag, Ieee 802.1 ab (lldp), Ieee 802.3 az, Ieee 802.3 ax

Ram: 2 Gb

Flash Memory: 1 Gb

Expansion / Connectivity
Interfaces:

48 X Gigabit Lan Rj-45

2 X 10gbit Lan Sfp+

2 X Gigabit Lan Rj-45/sfp

1 X Serial (rs-232) Rj-45 Management

1 X Usb Type A

2 X Network Stack Device

Power

Power Device: Internal Power Supply - Hot-plug

Installed Qty: 1 (installed) / 2 (max)

Power Redundancy: Optional

Power Redundancy Scheme: 1+1 (with Optional Power Supply)

Power Provided: 200 Watt
