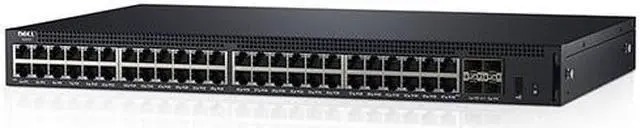

Dell 2PRN3 S3148 L3 48Pt 1Gbe 2Pt 10Gbe Switch

DELL 2PRN3 Networking S3148 - Switch - 48 Ports - Managed -
Rack-mountable:

Key Features:


Device Type: Switch - 48 Ports - L3 - Managed - Stackable

Enclosure Type: Rack-mountable 1u

Subtype: Gigabit Ethernet

Ports: 48 X 10/100/1000 + 2 X 10 Gigabit Sfp+ + 2 X Combo Gigabit Sfp

Performance: Switching
Fabric Bandwidth: 260 Gbps ¦ Forwarding Performance: 193 Mpps

Capacity: Mac
Addresses: 32000
¦ Ipv4 Routes: 1024
¦ Ipv6 Routes: 1024
¦ Ipv4 Routes (dynamic): 8160
¦ Ipv6 Routes (dynamic): 4096
¦ Links Per Group: 16
¦ Priority Queues Per Port: 8 ¦ Layer 2
Vlans: 4000
¦ Mstp Instances: 64
¦ Vrf-lite Instances: 64
¦ Host Table Entries (ipv4): 40000
¦ Host Table Entries (ipv6): 8000 ¦ Multicast Table Entries (ipv4): 8000

Mac Address Table Size: 32k Entries

Routing Protocol: Vrrp, Ospfv2, Igmpv3, Msdp

Remote Management Protocol: Snmp 1, Snmp 2, Rmon 1, Rmon 2, Rmon 3, Rmon 9, Snmp 3

Authentication Method: Radius

Features: Mdi/mdi-x Switch, Port Mirroring, Front To Back Airflow

Compliant Standards: Ieee 802.3 u, Ieee 802.3 z, Ieee 802.1 d, Ieee 802.1 q, Ieee 802.3 ab, Ieee 802.1 p, Ieee 802.3 x, Ieee 802.3 ad (lacp), Ieee 802.1 w, Ieee 802.1 x, Ieee 802.3 ae, Ieee 802.3 ac, Ieee 802.1 s, Ieee 802.1 ab (lldp)

Ram: 2 Gb

Expansion / Connectivity:
Interfaces:

48 X Gigabit Lan - Rj-45

2 X 10gbit Lan - Sfp+

2 X Gigabit Lan - Rj-45/sfp

1 X Usb - Type A

1 X Serial (rs-232) - Rj-45 - Management

1 X 1000base-t - Rj-45 - Management

Power:

Power Device: Internal Power Supply - Hot-plug

Installed Qty: 1 (installed) / 2 (max)

Power Redundancy: Optional

Power Redundancy Scheme: 1+1 (with Optional Power Supply)

Power Provided: 200 Watt
