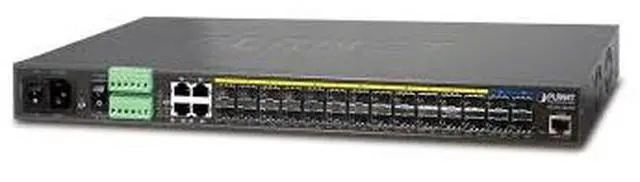

Planet MGSW-28240F 24-Port 100/1000BASE-X SFP with 4-Port 10G SFP+ L2/L4 Managed Metro Ethernet Switch

10Gbps Ultra High Speed Switch with Multiple SFP Fiber Ports is Great for All Long-Reach Applications The MGSW-28240F is specially designed for service providers to deliver profitable Ethernet network. It is equipped with advanced management functions and provides 24 100/1000Mbps dual speed SFP Fiber ports, 4 10Gbps SFP Fiber ports, and 4 10/100/1000Mbps TP/SFP combo ports delivered in a rugged strong case. The MGSW-28240F is capable of providing non-blocking switch fabric and wire-speed throughput as high as 128Gbps in the temperature range from -10 to 60 degrees C without any packet loss and CRC error.

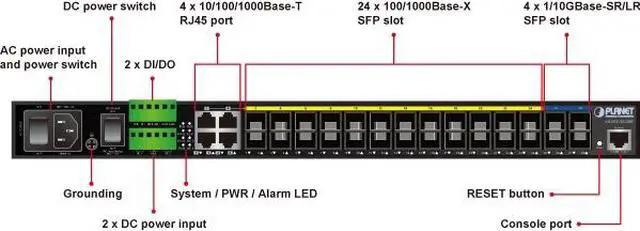

It greatly simplifies the tasks of upgrading the enterprise LAN for catering to increasing bandwidth demands. Physical Port 24-port 100/1000Base-X SFP mini-GBIC slot 4 shared 10/100/1000Base-T RJ-45 ports 4-port 1G/10G SFP+ slot RS-232 RJ45 console interface for switch basic management and setup Hardware Conformance 36 to 60V DC, redundant power with polarity reverse protect function -10 to 60 degrees C operating temperature 19-inch rack-mountable Fault relay alarm for port breakdown, power failure Two built-in thermal fans Layer 2 Features Prevents packet loss with back pressure (half-duplex) and IEEE 802.3 x pause frame flow control (full-duplex) High performance of Store-and-Forward architecture, broadcast storm control and runt/CRC filtering eliminate erroneous packets to optimize the network bandwidth Storm Control support - Broadcast / Multicast / Unknown-Unicast Supports VLAN - IEEE 802.1Q Tagged VLAN - Up to 255 VLA
Ns groups, out of 4094 VLAN IDs - Provider Bridging (VLAN Q-in-Q) support (IEEE 802.1 ad) - Private VLAN Edge (PVE) - Voice VLAN Supports Spanning Tree Protocol - STP, IEEE 802.1D Spanning Tree Protocol - RSTP, IEEE 802.1 w Rapid Spanning Tree Protocol - MSTP, IEEE 802.1 s Multiple Spanning Tree Protocol, spanning tree by VLAN - BPDU Guard Supports Link Aggregation - 802.3 ad Link Aggregation Control Protocol (LACP) - Cisco ether-channel (static trunk) - Maximum 12 trunk groups, up to 16 ports per trunk group - Up to 32Gbps bandwidth (duplex mode) Provides port mirror (many-to-1) Port mirroring to monitor the incoming or outgoing traffic on a particular port Quality of Service * Ingress Shaper and Egress Rate Limit per port bandwidth control * 4 priority queues on all switch ports * Traffic classification - IEEE 802.1 p CoS - TOS / DSCP / IP Precedence of IPv4/IPv6 packets - IP TCP/UDP port number - Typical network application * Strict priority and Weighted Round Robin (WRR) CoS policies * Supports QoS and In/Out bandwidth control on each port * Traffic-policing policies on the switch port * QoS Control List Wizard makes QoS creation and configuration easier and more quickly * DSCP remarking Multicast Supports IGMP Snooping v1, v2 and v3 Querier mode support IGMP Snooping port filtering Multicast VLAN Registration (MVR) support Security IEEE 802.1 x Port-based / MAC-based network access authentication Built-in RADIUS client to co-operate with the RADIUS servers TACACS+ login users access authentication RADIUS / TACACS+ users access authentication IP-based Access Control List (ACL) MAC-based Access Control List Source MAC / IP address binding DHCP Snooping to filter un-trusted DHCP messages Dynamic ARP Inspection discards ARP packets with invalid MAC address to IP address binding IP Source Guard prevents IP spoofing attack Auto DoS rule to defend DoS attack IP address access management to prevent unauthorized intruder Management * Switch Management Interfaces - Console / Telnet Command Line Interface - Web switch management - SNMP v1, v2c, and v3 switch management - SSH / SSL secure access * Four RMON groups (history, statistics) * IPv6 IP Address / NTP / DNS management * Built-in Trivial File Transfer Protocol (TFTP) client * DHCP for IP address assignment * Firmware upload / download via HTTP / TFTP * DHCP Relay and Option 82 * User Privilege levels control * NTP (Network Time Protocol) * Link Layer Discovery Protocol (LLDP) Protocol * Cable Diagnostic technology provides the mechanism to detect and report potential cabling issues * Reset button for system reboot or reset to factory default * PLANET Smart Discovery Utility for deploying management * ICM
Pv6 Redundant Data Protection ITU-T G. 8032 Ethernet Ring Protection Switching Redundant Power System * 100~240V AC/36~60V DC dual power redundant * Active-active redundant power failure protection * Backup of catastrophic power failure on one supply * Fault tolerance and resilience Digital Input / Digital Output * 2 Digital Input (DI) * 2 Digital Output (DO) * Integrates sensors into auto alarm system Transfers alarm to IP network via email and SNMP trap
