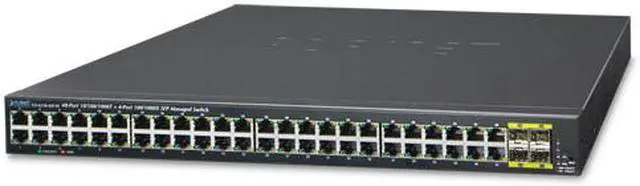

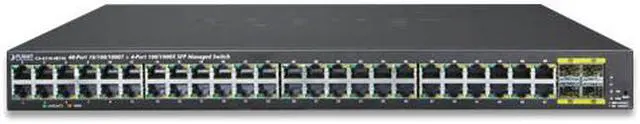

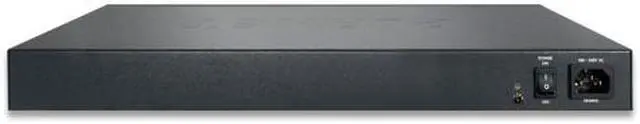

Planet GS-4210-48T4S IPv4/IPv6 48-Port 10/100/1000Base-T + 4-Port 100/1000MBPS SFP L2/L4 SNMP Manageable Gigabit Ethernet Switch

PLANET GS-4210-48T4S Gigabit Managed Switch is perfectly designed for SMB and enterprise network infrastructures. Besides the IPv6 / IPv4 management, abundant L2 / L4 switching engine and advanced network security functions, the GS-4210-48T4S comes with fanless feature and green technology. Therefore, it is able to operate stably and quietly in any environment without affecting its performance. High Performance The GS-4210-48T4S provides 48 10/100/1000BASE-T Gigabit Ethernet RJ45 ports and 4 additional 100/1000BASE-X SFP slots. It boasts a high-performance switch architecture that is capable of providing the non-blocking switch fabric and wire-speed throughput as high as 104Gbps, which greatly simplifies the tasks of upgrading the LAN for catering to increasing bandwidth demands.

The GS-4210-48T4S is suitable for the next-generation network deployment and offers the lowest total cost of ownership. It is the best investment for business expansion or upgrading its network infrastructure. Physical Port 48-port 10/100/1000BASE-T Gigabit RJ45 copper 4 100/1000BASE-X mini-GBIC/SFP slots Reset button for system factory default Layer 2 Features Prevents packet loss with back pressure (half-duplex) and IEEE 802.3 x pause frame flow control (full-duplex) High performance Store and Forward architecture, runt/CRC filtering eliminates erroneous packets to optimize the network bandwidth Supports VLAN - IEEE 802.1Q tagged VLAN - Provider Bridging (VLAN Q-in-Q) support (IEEE 802.1 ad) - Protocol VLAN - Voice VLAN - Private VLAN (Protected port) - Management VLAN - GVRP Supports Spanning Tree Protocol - STP (Spanning Tree Protocol) - RSTP (Rapid Spanning Tree Protocol) - MSTP (Multiple Spanning Tree Protocol) - STP BPDU Guard, BPDU Filtering and BPDU Forwarding Supports Link Aggregation - IEEE 802.3 ad Link Aggregation Control Protocol (LACP) - Cisco ether-channel (static trunk) - Maximum 8 trunk groups, up to 8 ports per trunk group Provides port mirror (many-to-1) Loop protection to avoid broadcast loops Quality of Service Ingress and egress rate limit per port bandwidth control Storm control support - Broadcast / Unknown unicast / Unknown multicast Traffic classification - IEEE 802.1 p CoS - TOS / DSCP / IP precedence of IPv4/IPv6 packets Strict priority and Weighted Round Robin (WRR) CoS policies Multicast Supports IPv4 IGMP snooping v2 and v3 Supports IPv6 MLD snooping v1, v2 IGMP querier mode support IGMP snooping port filtering MLD snooping port filtering Security Authentication - IEEE 802.1X port-based network access authentication - Built-in RADIUS client to co-operate with the RADIUS servers - DHCP Option 82 - RADIUS / TACACS+ authentication Access Control List - IPv4 / IPv6 IP-based ACL - IPv4 / IPv6 IP-based ACE - MAC-based ACL - MAC-based ACE MAC Security - Static MAC - MAC Filtering Port security for source MAC address entries filtering DHCP snooping to filter distrusted DHCP messages Dynamic ARP inspection discards ARP packets with invalid MAC address to IP address binding IP source guard prevents IP spoofing attacks DoS attack prevention SSH/SSL Management IPv4 and IPv6 dual stack management Switch Management Interface - IPv4 / IPv6 Web switch management - Telnet Command Line Interface - SNMP v1, v2c and v3 - HTTPs secure access Built-in Trivial File Transfer Protocol (TFTP) client User privilege levels control Static and DHCP for IP address assignment System Maintenance - Firmware upload / download via HTTP / TFTP - Configuration upload / download through HTTP / TFTP - Dual images - Hardware reset button for system reset to factory default SNTP Network Time Protocol Cable diagnostics Link Layer Discovery Protocol (LLDP) and LLDP-MED SNMP trap for interface Link Up and Link Down notification Event message logging to remote Syslog server Four RMON groups (history, statistics, alarms and events) PLANET Smart Discovery Utility
