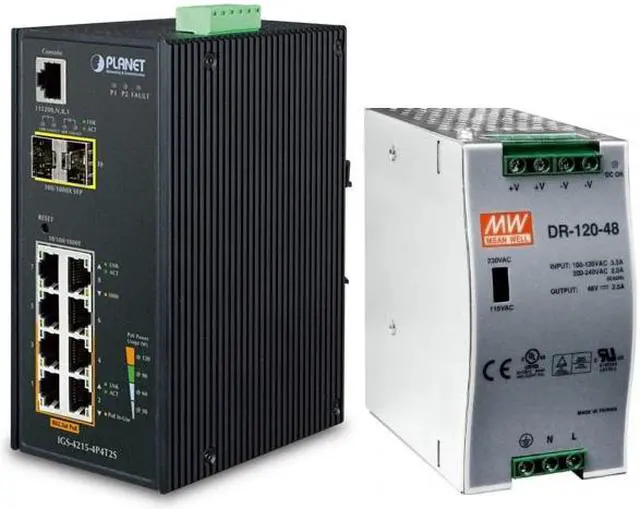

Planet IGS-4215-4P4T2S Industrial L2/L4 4-Port 10/100/1000T 802.3at PoE + 4-Port 10/100/1000T + 2-Port 100/1000X SFP Managed Switch, SSL, SSH, ACL With 48V 120W Power Supply

Physical Port
8-port 10/100/1000BASE-T Gigabit RJ45 copper with 4-port IEEE 802.3at/af PoE Injector (Port-1 to Port-4)
2 100/1000BASE-X mini-GBIC/SFP slots, SFP type auto detection
RJ45 console interface for switch basic management and setup
Power over Ethernet
Complies with IEEE 802.3at Power over Ethernet Plus, end-span PSE
Backward compatible with IEEE 802.3af Power over Ethernet
Up to 4 ports of IEEE 802.3af/802.3at devices powered
Supports PoE power up to 36 watts for each PoE port
Auto detects powered device (PD)
Circuit protection prevents power interference between ports
Remote power feeding up to 100 meters
PoE management
Total PoE power budget control
Per port PoE function enable/disable
PoE port power feeding priority
Per PoE port power limitation
PD classification detection
PD alive-check
PoE schedule
Industrial Case & Installation
IP30 aluminum case
DIN-rail and wall-mount design
Supports -40 to 75 degrees C operating temperature
Supports ESD 6KV DC Ethernet protection
Redundant power design
48V~56V DC wide power input
Switching
Hardware based 10/100Mbps (half/full duplex), 1000Mbps (full duplex), auto-negotiation and auto MDI/MDI-X
Features Store-and-Forward mode with wire-speed filtering and forwarding rates
IEEE 802.3x flow control for full duplex operation and back pressure for half duplex operation
8K MAC address table size
10K jumbo frame
Automatic address learning and address aging
Supports CSMA/CD protocol
Layer 2 Features
Supports VLAN
IEEE 802.1Q tagged VLAN
Provider bridging (VLAN Q-in-Q, IEEE 802.1ad) support
Protocol VLAN
Voice VLAN
Private VLAN (Protected port)
Management VLAN
GVRP
Supports Spanning Tree Protocol
STP (Spanning Tree Protocol)
RSTP (Rapid Spanning Tree Protocol)
MSTP (Multiple Spanning Tree Protocol)
STP BPDU Guard, BPDU Filtering and BPDU Forwarding
Supports Link Aggregation
IEEE 802.3ad Link Aggregation Control Protocol (LACP)
Cisco ether-channel (static trunk)
Maximum 4 trunk groups, up to 4 ports per trunk group
Provides port mirror (many-to-1)
Loop protection to avoid broadcast loops
Quality of Service
Ingress/Egress Rate Limit per port bandwidth control
Traffic classification
IEEE 802.1p CoS
TOS/DSCP/IP precedence of IPv4/IPv6 packets
Strict priority and Weighted Round Robin (WRR) CoS policies
Multicast
Supports IPv4 IGMP snooping v2, v3
Supports IPv6 MLD snooping v1, v2
IGMP querier mode support
IGMP snooping port filtering
MLD snooping port filtering
