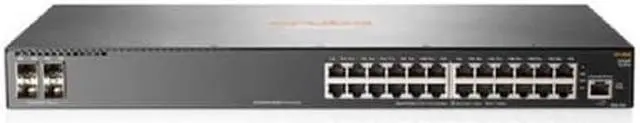

HPE JL354A -Aruba 2540 24G 4SFP+ Switch
- Model
- JL354A
- Ports
- 24 RJ-45 outosensing 10/100/1000 ports (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX, IEEE 802.3ab Type 1000BASE-T); Duplex: 10BASE-T/100BASE-TX: half or full; 4 SFP+ 1/10GbE ports; PHY-less
- Additional ports and slots
- 1 dual-personality (RJ-45 or USB micro-B) serial console port
- Memory and processor
- Dual Core ARM Coretex A9 @ 1016 MHz, 1 GB DDR3 SDRAM
- Packet buffer size: 12.38 MB
- 4.5 MB Ingress/7.785 MB Egress, 4 GB eMMC
- Dimensions
- (H) 4.39 cm x (W) 44.42 cm x (D) 20.02 cm (1.73 x 17.42 x 7.88) (1U height)
- Throughput
- up to 95.2 Mpps
- Switching capacity
- 128 Gbps
+
+
Overview
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Ports
24 RJ-45 autosensing 10/100/1000 ports (IEEE 802.3 Type 10BASE-T, IEEE 802.3 u Type 100BASE-TX, IEEE 802.3 ab Type 1000BASE-T);
Duplex:
10BASE-T/100BASE-TX: half or full; 4 SFP+ 1/10GbE ports; PHY-less
Additional ports and slots
1 dual-personality (RJ-45 or USB micro-B) serial console port
Memory and processor
Dual Core ARM Coretex A9 @ 1016 MHz, 1 GB DDR3 SDRAM
Packet buffer size: 12.38 MB
4.5 MB Ingress/ 7.785 MB Egress, 4 GB eMMC
Dimensions
(H) 4.39 cm x (W) 44.42 cm x (D) 20.02 cm ( 1.73 x 17.42 x 7.88 ) (1U height)
Throughput
up to 95.2 Mpps
Switching capacity
128 Gbps
Environmental
Operating temperature range: 32°F to 113°F (0°C to 45°C); up to 5, 000 Feet, -0°C to 40°C (32°F to 104°F) up to 10, 000 Feet
Operating relative humidity: 15% to 95% @ 104°F (40°C), noncondensing
Storage temperature range: -40°C to 70°C (-40°F to 158°F)
Nonoperating/Storage temperature: -40°F to 158°F (-40°C to 70°C); up to 15, 000 Feet
Nonoperating/Storage relative humidity: 15% to 95% @ 149°F (65°C), noncondensing
24 RJ-45 autosensing 10/100/1000 ports (IEEE 802.3 Type 10BASE-T, IEEE 802.3 u Type 100BASE-TX, IEEE 802.3 ab Type 1000BASE-T);
Duplex:
10BASE-T/100BASE-TX: half or full; 4 SFP+ 1/10GbE ports; PHY-less
Additional ports and slots
1 dual-personality (RJ-45 or USB micro-B) serial console port
Memory and processor
Dual Core ARM Coretex A9 @ 1016 MHz, 1 GB DDR3 SDRAM
Packet buffer size: 12.38 MB
4.5 MB Ingress/ 7.785 MB Egress, 4 GB eMMC
Dimensions
(H) 4.39 cm x (W) 44.42 cm x (D) 20.02 cm ( 1.73 x 17.42 x 7.88 ) (1U height)
Throughput
up to 95.2 Mpps
Switching capacity
128 Gbps
Environmental
Operating temperature range: 32°F to 113°F (0°C to 45°C); up to 5, 000 Feet, -0°C to 40°C (32°F to 104°F) up to 10, 000 Feet
Operating relative humidity: 15% to 95% @ 104°F (40°C), noncondensing
Storage temperature range: -40°C to 70°C (-40°F to 158°F)
Nonoperating/Storage temperature: -40°F to 158°F (-40°C to 70°C); up to 15, 000 Feet
Nonoperating/Storage relative humidity: 15% to 95% @ 149°F (65°C), noncondensing
