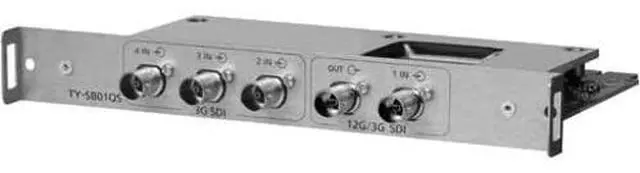

Panasonic TY-SB01QS 12G-SDI Terminal Board

The Panasonic TY-SB01QS is an SDM terminal board that adds SDI connectivity to compatible Panasonic displays, making it suitable for professional AV and video installations that need to connect SDI sources, including 12G-SDI on its first input.

Recommended For

• AV integrators adding 12G-SDI connectivity to a compatible Panasonic display or projector, so a 4K SDI source can connect through an installed function board rather than a separate external interface.
• Live-event and broadcast teams feeding compatible Panasonic equipment from 12G-SDI sources, including UHD or DCI 4K formats supported by the board.
• Installations using quad-link 3G-SDI or HD-SDI, where the production signal is carried across multiple SDI connections into a compatible Panasonic display or projector.
• Fixed-install video systems that need an SDI active-through output from the board’s SDI 1 input for onward signal routing; the display’s slot setting must support output while on standby.

Real-World Use Scenarios

• At a live event or venue, an AV team can feed a compatible Panasonic projector directly from a 4K SDI source; the board provides an SDI input path without a separate SDI-to-HDMI conversion device.
• For a production system using quad-link HD-SDI or 3G-SDI, an installer can connect the linked feeds to the board’s SDI inputs and use them with a compatible Panasonic display or projector.
• When a venue uses an HD-SDI or 3G-SDI source rather than a 12G-SDI source, the board can accept that feed through SDI 1, letting the existing SDI equipment remain part of the display or projection setup.
• If a production team needs to pass the incoming SDI signal onward to another device, it can use SDI OUT as an active-through output from SDI 1 IN; this is signal pass-through, not format conversion.
