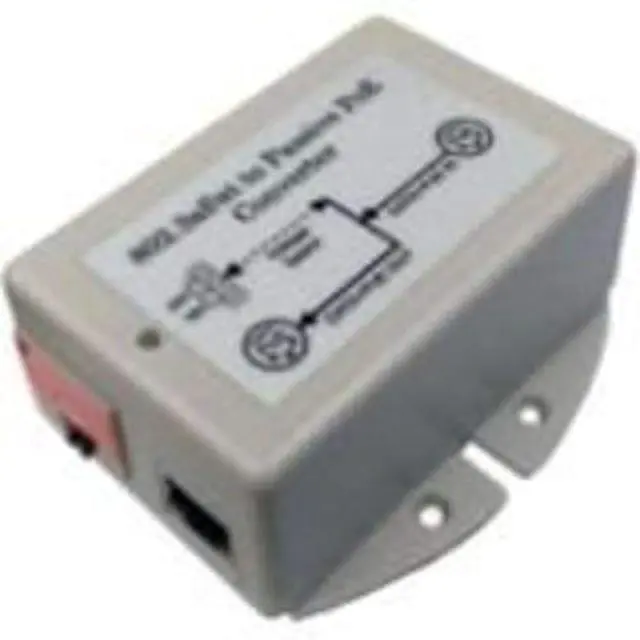

Tycon Systems TP-POE-1824G 48V44; Gigabit 24W Passive POE Output - Switch Selectable 18 Or 24V

This is a unique Power Over Ethernet adapter which converts an 802.3afat 48VDC POE input into a 18V or 24VDC regulated passive POE output. The POE output voltage is external jumper selectable and capable of up to 25W power output. The POE input is IEEE 802.3afat compatible so the TP-POE-1824 will work with standard 802.3afat compliant POE switches or routers. This product enables the powering of passive POE devices from standard 802.3afat POE switches which eliminates the extra expenses usually required to power non compliant equipment.Features. Converts 48v 802.3afat poe input to 18v or 24v passive poe output. Run non-compliant equipment on 802.3afat poe switches. Poe output switchable between 18vdc and 24vdc. Remotely power equipment thru cat5 cable up to 100m. Short circuit over current and over voltage protection. High temperature operation 10100 and gigabit Ethernet operation. Compact size - floor desktop wall mountSpecifications. DC POE Output Voltage -2.5 - 18V or 24V switchable. Overvoltage Protection - 22V or 28V. Ethernet Interface Speed - 101001000. POE Input IEEE 802.3afat - 36 - 60VDC. Output Current - 1A 18V 1A 24V. Output Power - 24W Max. Load Regulation - 5. Ripple Noise - 2. EMC Standards - FCC Class B NE55022 Class B. Safety Standards - UL1950 CSA 22.2 TUV EN60950. Operating Temperature - 30 to 60C. Operating Humidity RH - 5 - 90. Storage Temperature - 40 to 80C
