Fast Ethernet Network Switch IEEE 802.3af/at Industrial PoE Switch 4+1 Port Transmission Range 100meters

Note: This switch is connect 48V 60W 1.25A power adapter, we don't offer the power adapter, you need purchase it, tks. Features

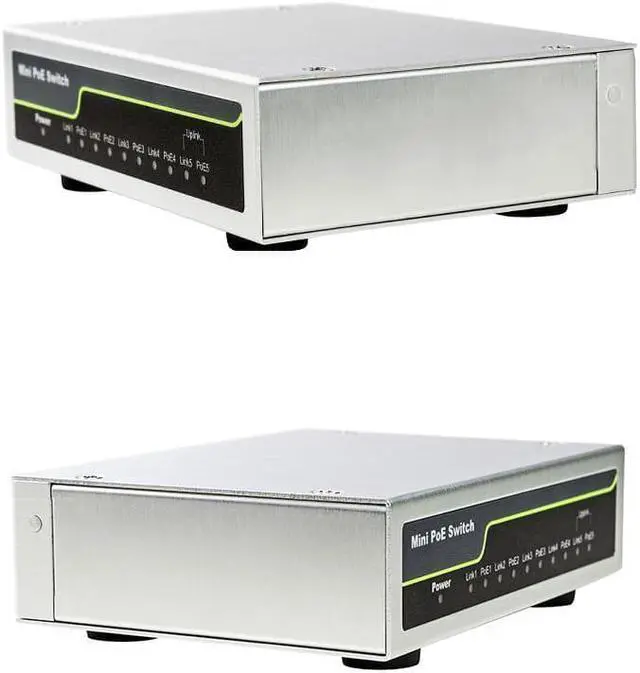

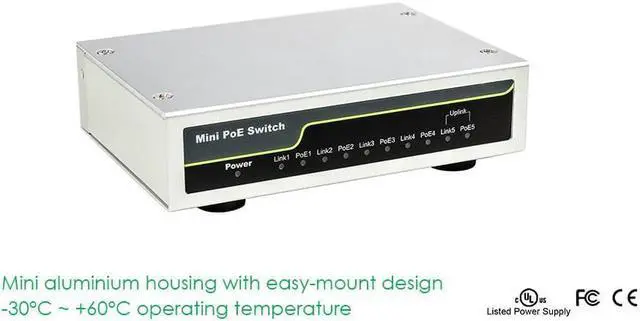

1. Mini aluminium housing supports wall mount and desk-top installation

2. Unique thermal design, wide operating temperature range -30°C ~ 60°C 3. MTBF up to 150K hours, designed for 24-hours-working surveillance system

4. Maxium PoE output up to 34.2W /port

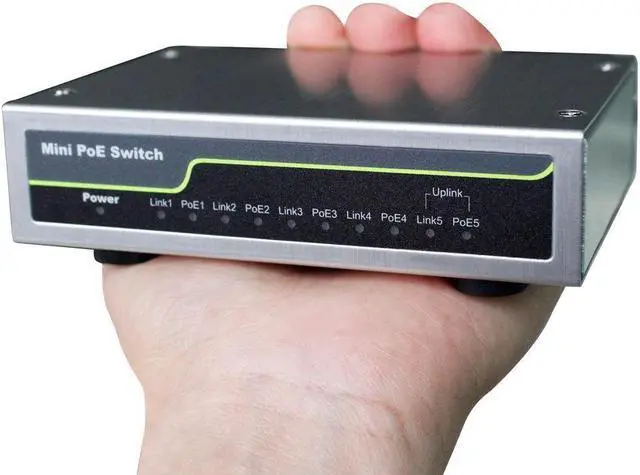

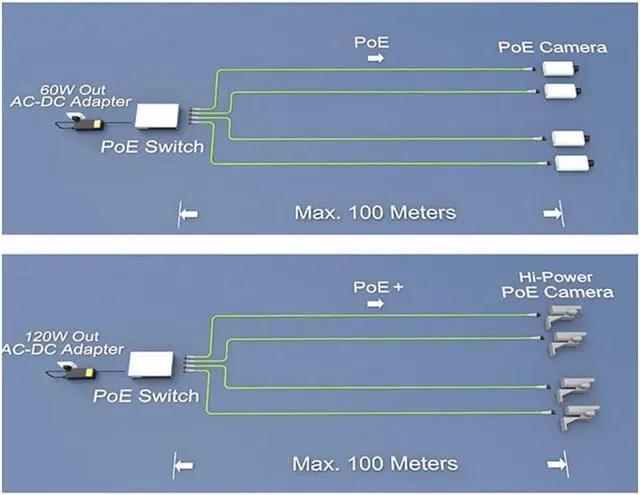

5. Plug and play installation, nonprofessional can quickly install it Overview S4M series PoE switches not only in price can be comparable to ordinary switch, and, compared to those only work in 0 ° C ~50 ° C environment, plastic shell household switches, they specifically for the network system needs uninterrupted work, such as the IPC security system. All model s feature stable per formance, industrial-grade components, and all ports come with dual surge protection circuits, so that the MTBF of these switches reaches 150K hours. Usually, these functions are ordinary business switches on the market do not have. The aluminum housing of S4M series switches designed to be very compact, so you can easily put them in a small power supply box. Therefore, they are ideally suited for small projects or home security systems. Typical application 1 The switch is connected to a 60W-output power supply, and provides PoE signal through the network cables to PoE IP cameras. Typical application 2 The switch is driven by a power supply with 120W output, and delivers IEEE PoE+ signal to high power devices like IR IP cameras, up to max 34.2W per port.

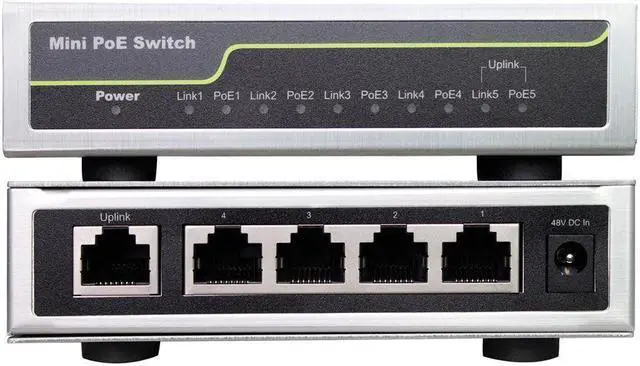

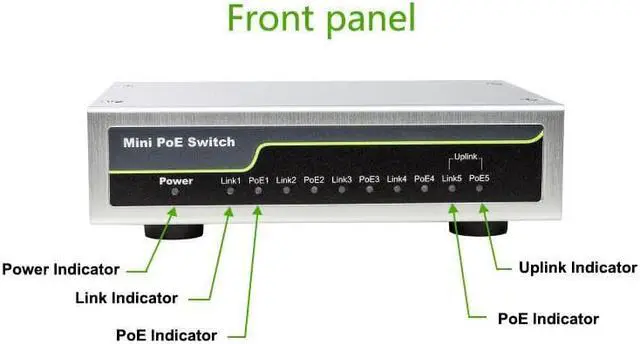

Ports & indicators assignment The S4M series switches provide four PoE/PoE+ output RJ-45 ports for powered devices and one data uplink RJ-45 port for backbond network device. Specifications Power over Ethernet Specifications PoE Standard IEEE 802.3 af & IEEE 802.3 at PoE Power Supply Type End-span & Mid-span PoE Output Power Port 1~ 4: 48 VDC, max. 34.2W /port
Power Pins Assignment: 1/2, 4/5(+), 3/6, 7/8(-) PoE Ouput Power Budget 60W or 120W in total, depending on connected power supply
PoE Ports Assignment Port 1~4: IEEE 802.3 af ( 15.4W /port) or IEEE 802.3 at ( 34.2W /port) PoE output;
Port 5: uplink, 100-meter data transmission PoE/Data Extends Range 100 meters/328ft Network Specifications General Features 4 x 10/100Mbps dual-speed RJ-45 Auto-MDI/MDI-X ports 1 x 10/100Mbps dual-speed RJ-45 Auto-MDI/MDI-X uplink Port 512K bits integrated shared packet memory Shared on-chip memory-based switch fabric with true non-blocking switching performance Layer-2 Switching Port-based VLAN High performance lookup engine with support for up to 1, 024 MAC address entries with automatic learning and aging Support a CPU header mode for accelerated router performance and wirespeed VLAN control Multicast Port states & BPDU handling supports spanning tree Automatic MDI/MDIX crossover for 100BASE-TX and 10BASE-T ports Security Protected port security feature Supports 802.1X implementation wth port-based access control Standards Conformance IEEE 802.3 af & IEEE 802.3 at Power over Ethernet IEEE 802.3 10Base-T IEEE 802.3 u 100Base-TX IEEE 802.3
