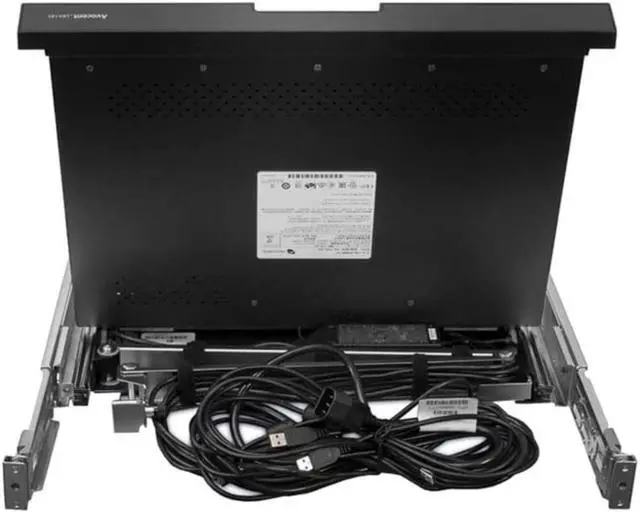

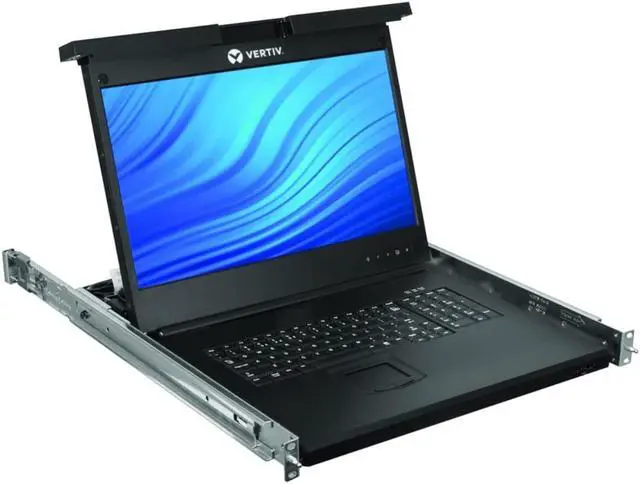

By providing easy access to multiple servers and other IT gear, the Vertiv Avocent Local Rack Access (LRA) Console makes software upgrades, troubleshooting and system monitoring more convenient and less time consuming, protecting uptime and staff time. The console includes a widescreen 18.5” LED LCD panel, full desktop-style keyboard with touchpad for ease of use, and interface cabling for connectivity. Optional accessories that scale up the number of available ports for future growth are available. The rackmount Vertiv Avocent LRA Console cuts the clutter of crash carts and space-consuming monitors and keyboards. It’s compatible with most of the Vertiv Avocent KVM switches and leaves room for KVMs or other equipment in the same 1U tray for organized operation. The tray features standard USB and VGA interfaces that are broadly compatible with servers and network devices. Its minimal power draw during standby and operation saves energy and money.
- Console occupies only 1U rack space and provides easy access without sacrificing scalability
- The rackmount console acts as a complete entry point to local servers when needed
- Intuitive and user-friendly on-screen menu can be accessed in 7 languages
- Full 103 key keyboard comes with number pad and touch pad pointer; available in 12 languages.
- Maintains power efficiency during operation or standby
Key Features
High-Resolution Display With Full Keyboard

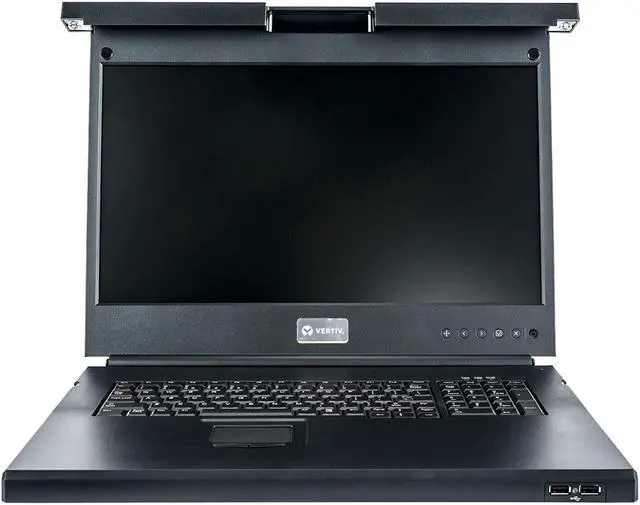

The Avocent LRA Console features a 18.5" LED LCD widescreen panel with a 16:9 aspect ratio. The display supports resolutions up to 1600 x 1200 at both full screen and aspect ratio. The LRA ensures ease of use with a full desktop style keyboard with number pad, touch pad, and 2 USB 2.0 pass through ports.
Global Keyboard Avilability
With multiple global certifications, Vertiv offers the Avocent LRA Console in multiple keyboard languages. This supports simplification through standardization of access products across global organizations.
Increase Productivity
Enable quick and easy access to multiple servers with the Vertiv Avocent LRA Console. Make software upgrades, troubleshooting and system monitoring more convenient and less time consuming with just 1U of rack space. Eliminate the need for crash carts or other bulky access equipment.
Common Applications
Data Centers
The Vertiv Avocent LRA Console provides compact, easy, and immediate access to multiple servers. It is the ideal choice for data centers large and small, for enterprises, colocation facilities or cloud providers where space is at a premium and quick, reliable access can mean the difference between uptime and crisis.
Control Rooms
In a cramped, often chaotic control room, space is at a premium. The Vertiv Avocent LRA Console provides immediate, easy access in a 1U, rackmount form factor. The tray allows room for KVM installation and includes USB and VGA interfaces compatible with a range of network servers and other appliances.
Edge-Of-Network
With the growth of IoT, high-definition content delivery, and other applications that require IT equipment close to users or devices, the edge of network is exploding and becoming more complex. The Vertiv Avocent LRA Console provides easy, reliable access that simplifies management.

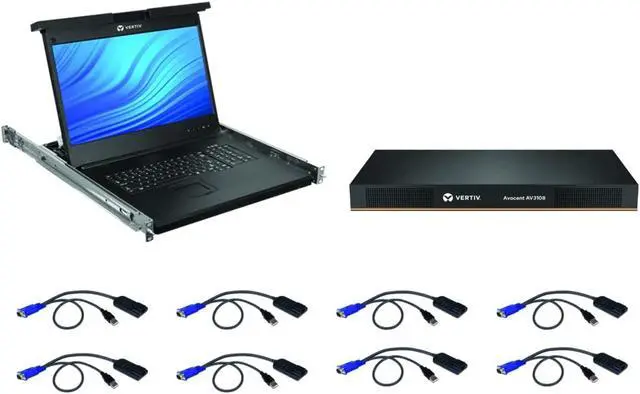

LRA185KMM |
LRA185KMM8 |
LRA185KMM16 |
|
| Form Factor | 1U Rackmount Housing | 1U Rackmount Housing | 1U Rackmount Housing |
| Widescreen | 18.5" widescreen LCD LED-backlit monitor | 18.5" widescreen LCD LED-backlit monitor | 18.5" widescreen LCD LED-backlit monitor |
| Keyboard | Full desktop keyboard with number & touch pad | Full desktop keyboard with number & touch pad | Full desktop keyboard with number & touch pad |
| KVM Included | No | 8-Port KVM over IP Switch | 8-Port KVM over IP Switch |

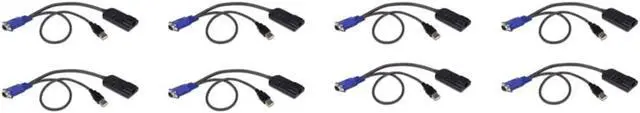

| Cables Included | No | 8 MPUIQ-VMCHS Server Interface Module Cables | 16 MPUIQ-VMCHS Server Interface Module Cables |
