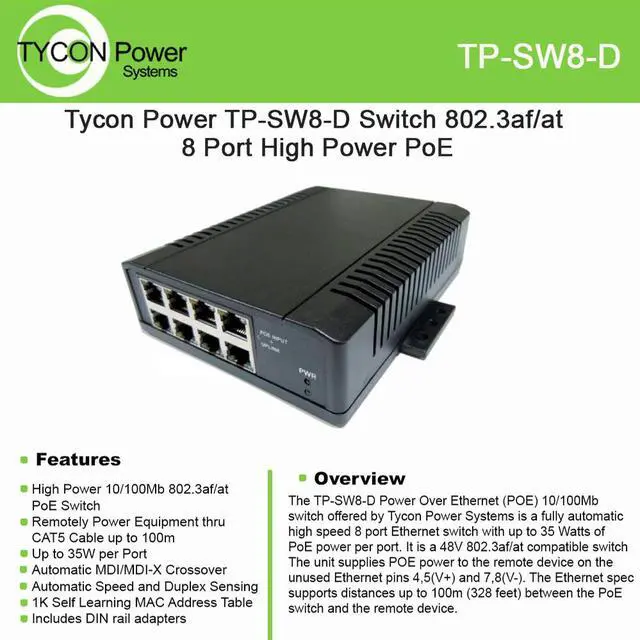

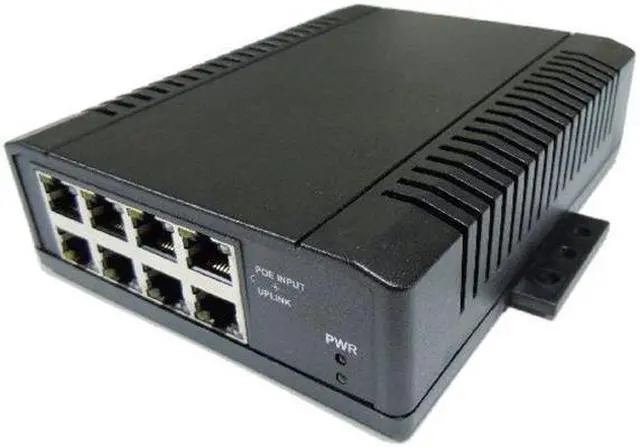

Tycon Systems TP-SW8-D 8 Port High Power POE Switch - 48-56V

The 8 port switch Power Over Ethernet (POE) 10/100Mb switch offered by Tycon Power Systems is a fully automatic high speed 8 port Ethernet switch with up to 35 Watts of POE power per port. It is a 48V 802.3af/at compatible switch. The unit supplies POE power to the remote device on the unused Ethernet pins 4, 5(V+) and 7, 8(V-). The Ethernet spec supports distances up to 100m between the POE switch and the remote device. The switch accepts DC power from a user supplied 46V-57V DC power source. There are 2 power inputs for attachment of primary and secondary power sources. The unit also accepts power via 802.3af/at POE into Port 8.

• High power 10/100mb 8 port poe switch
• Remotely power equipment thru cat5 cable up to 100m
• Extend Ethernet and poe up to 200m
• Up to 2a per port
• Built-in surge protection
• Automatic mdi/mdi-x crossover
• Automatic speed and duplex sensing
• High temperature operation

• Ethernet Standard - IEEE802.3/IEEE802.3u (10 base-T/100base-T)
• POE Standard (Port 1-8) - IEEE802.3af/at
• Ports - One data/PoE input and seven data/PoE outputs automatic crossover and polarity
• Transmission Speed - 100 Mbps(100base-T), 10 Mbps(10base-T) Auto-negotiation
• Switch Technology - Store and Forward
• Protocol - CSMA/CD
• Flow Control - IEEE802.3x(full-duplex), Back Pressure(half-duplex)
• Data Transmission Rate - 148800pps for 100base-T, 14880pps for 10base-T
• Address Table - 2K MAC, self-learning
• Connections - Shielded RJ45
• POE Port - Port 1-7, auto power management Pin assignment: TX(1, 2), RX(3, 6), V+(4, 5), V-(7, 8)
• Maximum POE Power - Port 1-8, 2A Per Port - NC Version, Port 1-7(35W), 8 (70W) - 802.3af/at Version & Wire Terminal or DIN Connector Input Max 10A
• POE Protection - Over Temperature, Over Current, Over/Under Voltage
• DC Power Input - 46V to 57V, 12V to 57V(-NC Version) Dual DC Inputs, Reverse Polarity Protected.
• Self Consumption - <1.5 Watts
• Operating Temperature - 40 to +85°C
• Operating Humidity (RH) - 5% - 90% (non condensing)
• Storage Temperature - 55 to +105°C
