Ubiquiti Networks U Fiber UF-OLT-4 4-Port GPON Optical Line Terminal with 3 GPON and 1 SFP+ Ports up to 512 UFiber ONUs (128 per PON port)

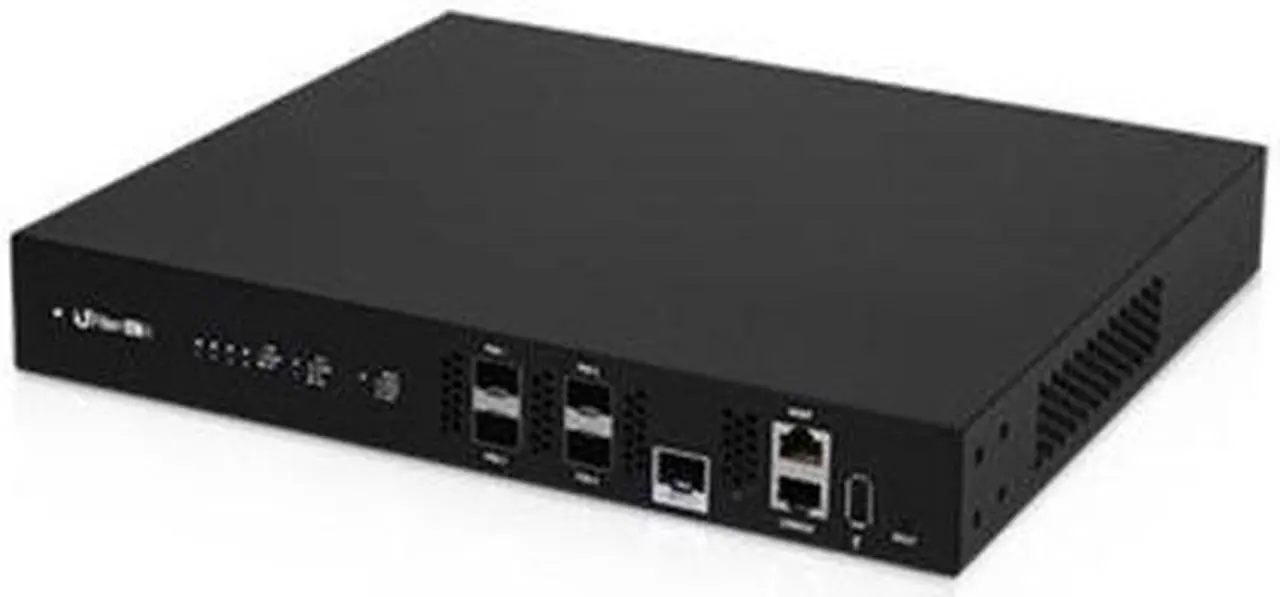

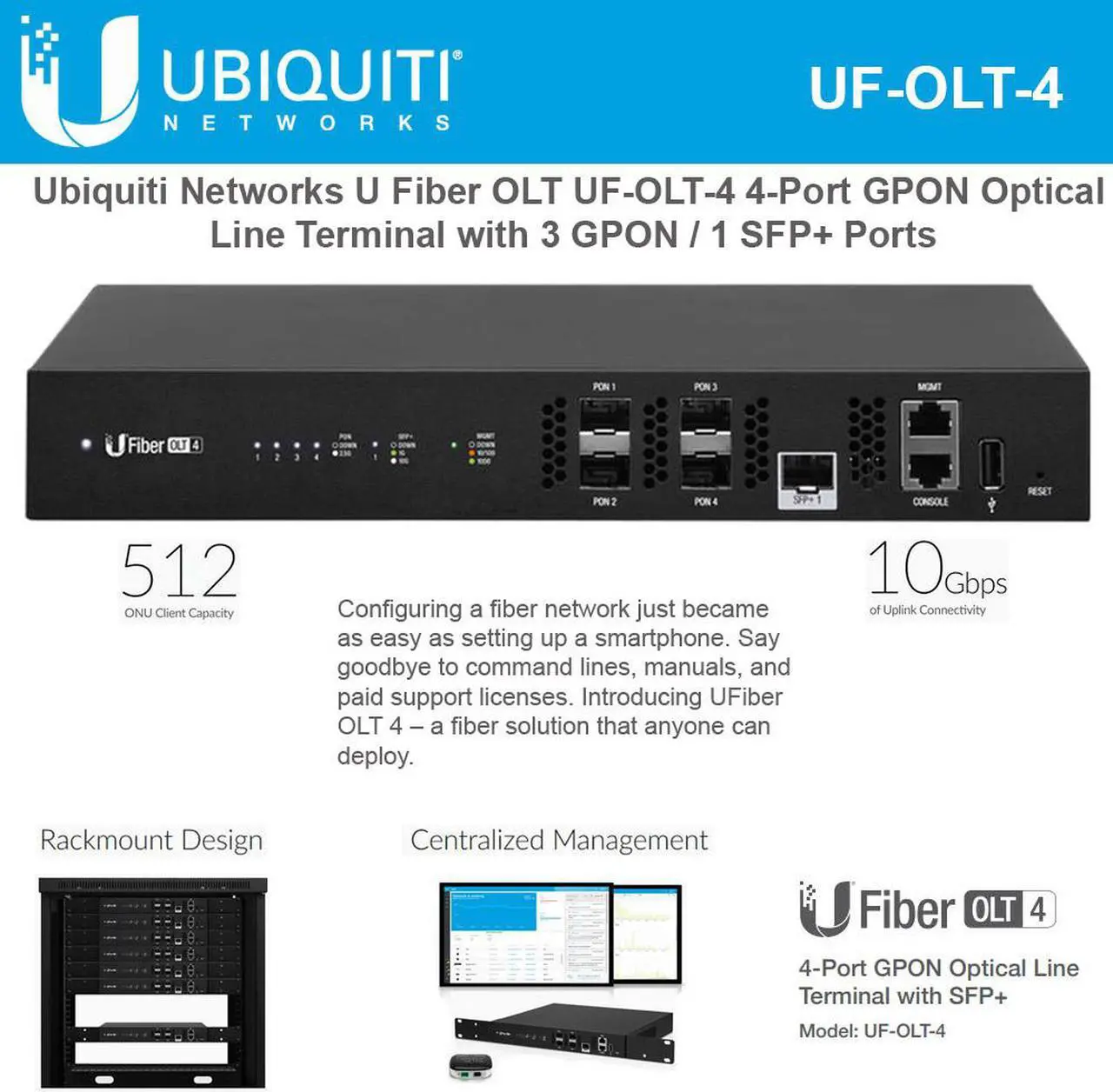

Ubiquiti U Fiber, 4-port GPON OLT
The Ubiquiti U Fiber, 4-port GPON OLT is configures a fiber network as easy as setting up a smartphone. Say goodbye to command lines, manuals, and paid support licenses. Introducing the U Fiber OLT – a fiber solution that anyone can deploy. U Fiber offers Internet and telecom service providers a cost-effective fiber optic delivery system for Triple Play Services (data, voice, IPTV/VoD) with speeds of up to 2.488 Gbps downstream and 1.244 Gbps upstream. The UFiber network is intelligently managed using the included UNMS (Ubiquiti® Network Management System) controller.

UFiber devices consist of the UFiber OLT or OLT-4 (deployed at the provider premises) and the UFiber Nano G or loco clients, which function as ONU CPEs (Customer Premises Equipment). The Ubiquiti U Fiber, 4-port
GPON OLT features:
Ports: (4) GPON SFP Ports, (1) SFP+ Port
Concurrent Clients: 512 ONUs Total (128 Clients per Port) Max.
Power Consumption: 35WPower
Method: 100240VAC/5060 Hz, Universal Input Product
Specifications • Dimensions: 299.80 x 258.95 x 42.55 mm ( 11.80 x 10.19 x 1.68 ) •
Weight: 1.93 kg ( 4.25 lb) • Weight with
Mount Bracket: 2.13 kg ( 4.70 lb) •
Networking Interfaces: (4) GPON OLT SFP; (1) 1G/10G SFP+ •
Concurrent Clients: 512 Registered ONUs/ONTs (128 per GPON Port) •
Management Interfaces: (1) Ethernet for Out-of-Band Management; (1) RJ45 Serial Console Port •
GPON Speeds: 2.488 Gbps Upstream (TX) 1.244 Gbps Downstream (RX) •
Operating Wavelengths: 1490 nm TX; 1310 nm RX • Normal Optical
Power Range: TX (Class
B+): 1.5 dBm to 5 dBm;
RX: -28 dBm to -8 dBm •
Range Physical Reach: 20 km
Logical Reach: 60 km Max.
Differential Fiber Distance: 20 km (B+) /40 km (C+) •
Power Method: 100-240VAC/50-60 Hz, Universal
Input • Power Supply: AC/DC Internal 56W DC • Max.
Power Consumption: 35W (Excluding SFP Modules) •
Operating Mode: OLT 2/3 Ethernet Switch and GPON Core •
Advanced QoS: Supports 8 Priority Queues per User Port and Traffic Classification •
Processor Specs: MIPS 1004kc, 880 MHz Dual Core •
Memory Information: 512 MB DDR3, 512 MB NAND •
Operating Temperature: -10 to 45° C (14 to 113° F) •
Operating Humidity: 10 to 90% Noncondensing •
Certifications: CE, FCC, IC
