KuWFi Waterproof Outdoor 4G LTE CPE SIM Card WiFi Router 150Mbps CAT4 SIM LTE Routers Work with IP Camera or Outside WiFi Coverage with 2pcs Antenna Only Work with SIM Card Mode Not for USA

KuWFi CPF905 offers secure internet sharing service to multiple terminal users. WiFi devices(Smart phones. Tablets, PCs) can get access to internet through this device,enioy 4G/3G/2G high speed services. The connection process depends on the system of eachWiFi device, please follow the prompting messages.
Operation system
- PC Users: A PC with Windows XP (SP3), Windows Vista (SP1), Windows 7,or Windows 8
- MAC Users: A Mac with OS X v10.5.7,OS X Lion v10.7.3 or later
- IPAD Uers: An iPhone, iPad, or iPod touch with iOS 5 or later
- Android Uers: An mobile Phone or Tablet PC with Android 2.3 or later
Please notice:
Itis compatible with the frequency bands of SIM cards in most Europeancountries. But you need confirm whether your SIM card frequency band iscompatible with it before buying a router.
Ifthe frequency band of your SIM card is compatible with CPF905, but yourdevice cannot connect to the Internet normally, you need to disable thePIN code and modify the APN. (the info can consult operator)
Ifsignal is unstable, you can also manage the settings page, lock 4G or3G network, can effectively improve the stability of the network.

If your settings are correct andthe device still cannot connect to the network, please consider whetherit is caused by the following problems:
Account got suspended for too much data usage.
Is the SIM card an IoT card?
the sim card have limited service ,not work with router or hotspot .
not support roaming service.
some place did not cover the network Frequency band.

Transfer rate
- up to 150Mbps DL
- up to 50Mbps UL
- HSDPA up to 42.2Mbps DL
- HSUPA up to 11.5Mbps UL
- 3.1Mbps DL
IP 66 WATERPROOF
- IP 66 waterproof case
- Anti-UV
- Corrosion resistant
- Suitable for outdoor installation
Operating Environment
- Working temperature -20° to 75°C
- Working heightCurrent tested max height 3000m (10,000 inches)
External Ports
- SIM3FF Micro SIM Card(SIM card is NOT including)
- USBUSB TYPE A (5V 1A IN)
- DC12V 1A IN
- RJ451* WAN/LAN
4G FDD LTE: B1,B3,B7,B8,B20
4G TDD LTE: B38,B39,B40,B41
WCDMAB1,B8
GSM900/1800MhZ
EVDO BC0

Please you confirm whether your SIM card frequency band is compatible with it before buying a router.
You may need to manually configure the APN when using the new operator network.

Internet connection sharing, up to 10 users can access the WiFi networkat the same time. Able to connect with Tablet ,Laptop, notebook, IPcameras and different types of WI-FI devices.
HW_VERCPF905V1.0
MTK ChipsetMT6735WM
Wi-Fi ChipsetMT6625L
RAM/ROM4GByte EMMC+512MByte DDR2
Wi-FiIEEE 802.11b/g/n
EncryptionWi-Fi Protected Access (WPA/WPA2)2
Soft SIMesim or softsim
CustomizationSmart system,high-levelCustomization possibility

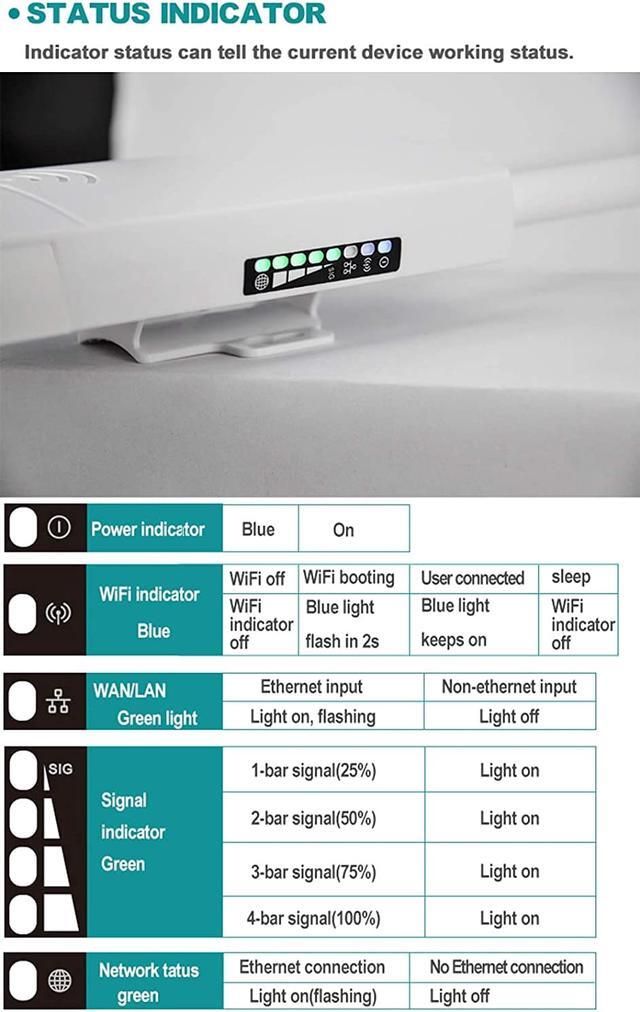

LEDLED indicator

Streamline case, simple and elegant
Outdoor installation,avoid the wiring
Multiple methods of installation
Wall-hanging or Pole-mounting
Easy and convenient installation

Press mount E, remove the cover C, insert SIM card
And plug ethernet cable power cable according to the sign
Close the cover
Use the metal strap, go from A to C through the mounting hole
Adjust the size according to the pole size
Mount the device on the pole, tighten the strap by screwdrivers or pliers
How to Set It Up
Please insert the SIM card first, and then connect the product to the power supply.
The next step is to connect the SSID, the SSID is 4G-CPE_xxxx, and The password for the SSID is 1234567890.
For more setting information about the router:
Please open your browser, enter the router's IP address 192.168.199.1, and click Enter. Then please enter admin in the password, and click Enter.
The following is how to set the APN:
You need to click on "APN" in "net
