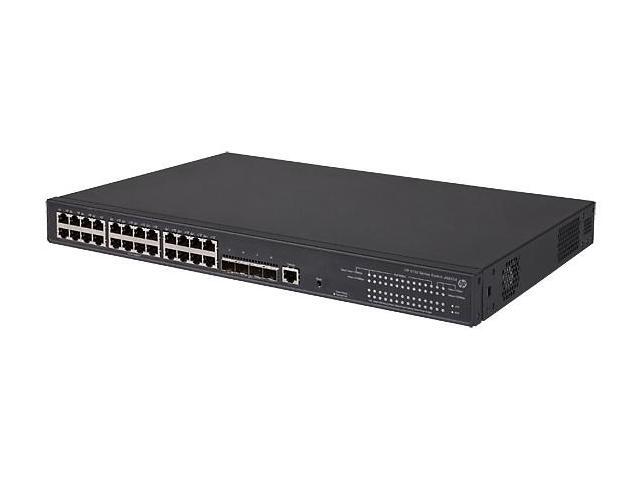

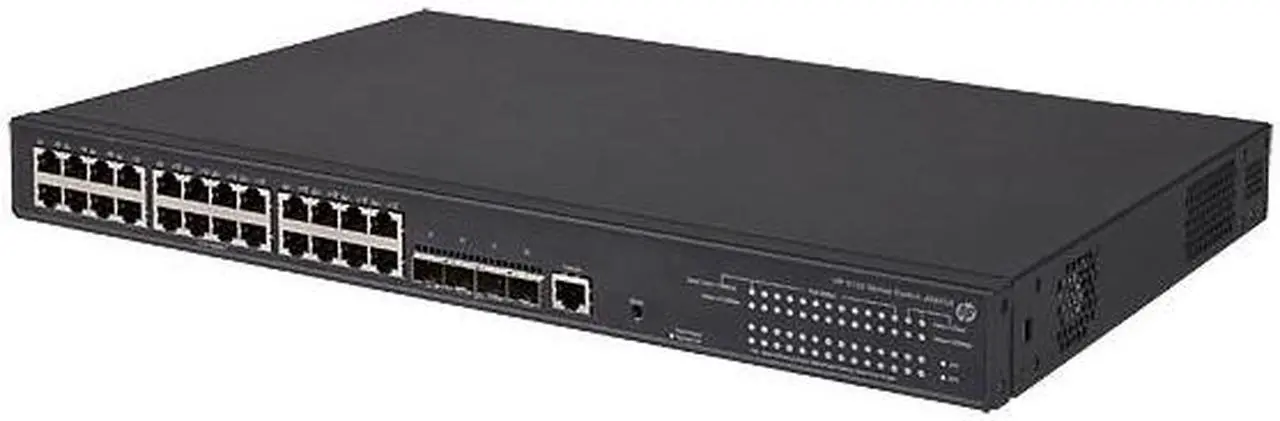

HPE JG936A 5130-24G-PoE+-4Sfp+ El Switch

Detail overviewHPE JG936A 5130-24g-poe+ 4sfp+ (370w) Ei 24 Ports Managed Switch.
Main

Specifications

: Device
Type: Switch - 24 Ports - L3 - Managed -
StackableEnclosure Type: Rack-mountable
1uSubtype: Gigabit
EthernetPorts: 24 X 10/100/1000 + 4 X 10 Gigabit Ethernet / 1 Gigabit Ethernet Sfp+Power Over
Ethernet (poe): Poe+Poe
Budget: 370
WPerformance:
Throughput: 96
Mpps ¦ Routing/switching Capacity: 128
GbpsCapacity: Ipv4
Routing Table Entries: 512
¦ Ipv6 Routing Table Entries: 256Mac Address Table Size 16384 EntriesJumbo
Frame Support: 9216
BytesRouting Protocol: Static Ipv4 Routing, Static Ipv6 RoutingRemote
Management Protocol: Snmp 1, Rmon 1, Rmon 2, Rmon 3, Rmon 9, Snmp 3, Snmp 2c, Http, Https, CliFeatures: Dhcp Support, Arp Support, Vlan Support, Auto-uplink (auto Mdi/mdi-x), Igmp Snooping, Weighted Round Robin (wrr) Queuing, Ipv6 Support, Half Duplex Mode, Full Duplex Mode, Sflow, Rapid Spanning Tree Protocol (rstp) Support, Multiple Spanning Tree Protocol (mstp) Support, Access Control List (acl) Support, Quality Of Service (qos), Jumbo Frames Support, Mld Snooping, Per-vlan Spanning Tree Plus (pvst+), Device Link Detection Protocol (dldp) Support, Rapid Ring Protection Protocol (rrpp) Support, Endpoint Admission Defense (ead), Stp Root Guard, Lldp Support, Dhcp Relay, Port Security, Dynamic Arp Protection, Dhcp Protection, Strict Priority Queuing (spq), Port Isolation, Tagged Vlan, Generic Attribute Registration Protocol (garp), Intelligent Resilient Framework
Technology (irf) Compliant Standards: Ieee 802.3, Ieee 802.3 u, Ieee 802.3 i, Ieee 802.3 z, Ieee 802.1 d, Ieee 802.1 q, Ieee 802.3 ab, Ieee 802.1 p, Ieee 802.3 af, Ieee 802.3 x, Ieee 802.3 ad (lacp), Ieee 802.1 w, Ieee 802.1 x, Ieee 802.3 ae, Ieee 802.1 s, Ieee 802.1 ad, Ieee 802.3 ah, Ieee 802.1 ab (lldp), Ieee
802.3 atRam: 1 Gb -
SdramFlash Memory: 128 MbExpansion /
Connectivity:
Interfaces: 24 X 1000base-t - Rj-45 ¦ 4 X Gigabit / 10gbit Lan - Sfp+ ¦ 1 X Console - Rj-45 -
ManagementPower: Power
Device: Internal
Power SupplyVoltage Required: Ac 120/230 VPower
Consumption Operational: 460
WattCondition: New Open Box.
Availability: In Stock.
Our Warranty: 30 Days.
