Detail overviewGeneral
Information:
Manufacturer: Hewlett Packard EnterpriseManufacturer
Part Number: 826684-B21Manufacturer
Website Address: WWW. HPE.
COM

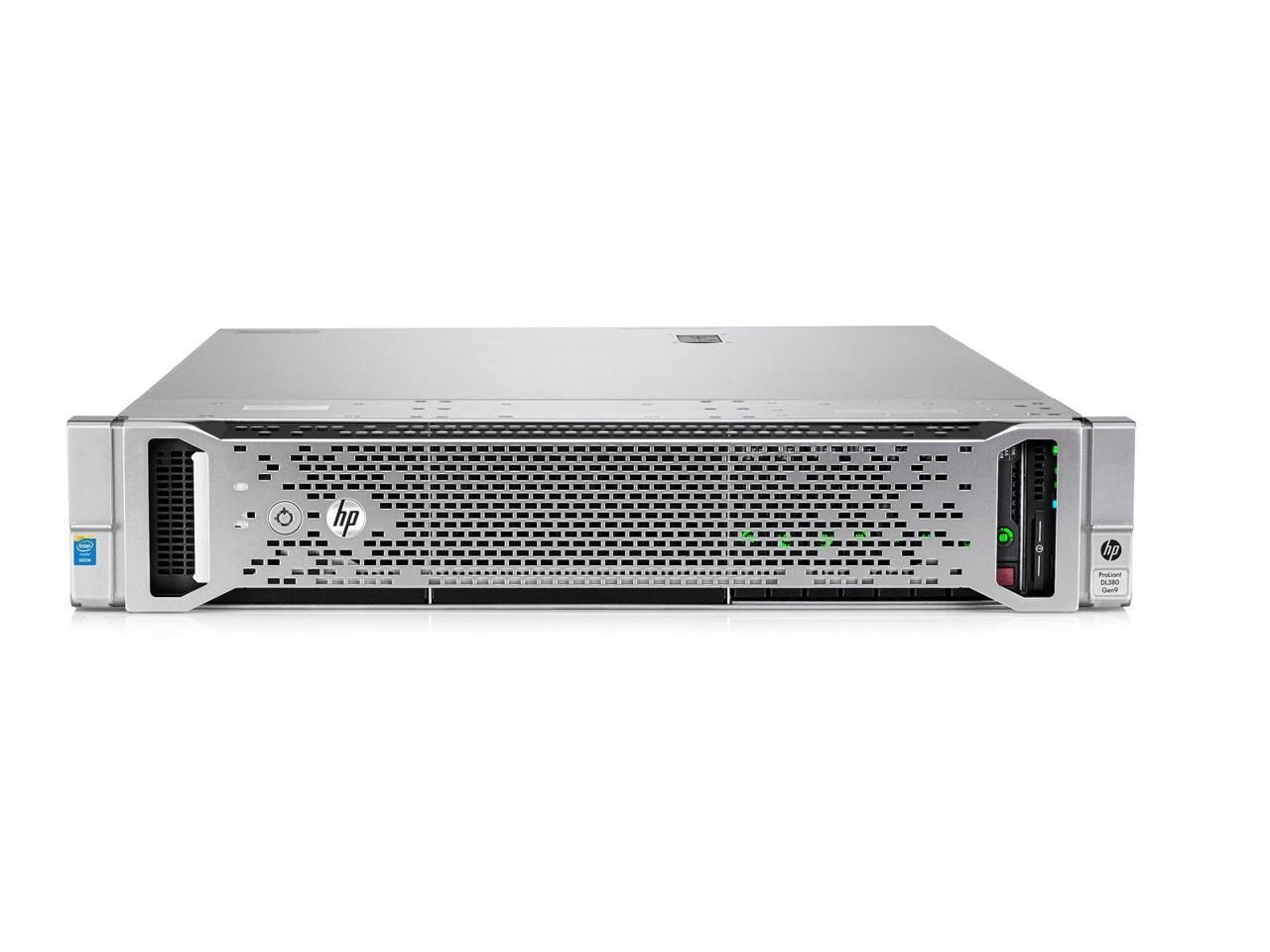

Product Name: Proliant Dl380 G9 - 2u Rack Mountable Server ( Performance Model)
Processor & Chipset:
Cpu: Intel Xeon E5-2650v4 / 2.2
GhzMax Turbo Speed: 2.9
GhzNumber Of Cores: 12-coreCpu
Qty: 2Max
Cpu Qty: 2Cpu
Upgradability: UpgradableProcessor
Main Features: Hyper-threading Technology, Intel Turbo Boost
Technology 2Cache Memory: Cache
Memory Type: Smart
CacheInstalled Size: 60mbCache
Per Processor:
30mbMemory: Installed
Size: 32 Gb / 384 Gb (max)
Technology: Ddr4 Sdram -
Advanced EccMemory Speed: 2133 MhzMemory
Specification Compliance: Pc4-17000Form
Factor: Dimm
288-pinFeatures: Registered, Online Spare Memory, Dual Rank, Quad Channel Memory Architecture, Hp
SmartmemoryConfiguration Features: 2 X 16
GbRam Supported: Pc4-17000 - 384 Gb - Registered Â¦ Pc4-17000 - 1.5 Tb - Load-reducedStorage &
Storage Controller: Hard
Drive: None.
Optical Drive Type: Dvd-rw - Sata.
Storage Controllers: Storage
Controller Name: Smart
Array P440arBuffer Size: 2
GbDisk Drive: 12gb/s Sas / 6gb/s
SataSas Port Link Rate: 12gb/s Per Physical Link SupportedPcie Link Rate: Pci Express 3.0 X8 (pcie3
X8) Physical Drives: Up To 26
DrivesLogical Drives Supported: Up To 64
Logical DrivesRaid Support: Raid 0, Raid 1, Raid 5, Raid 6, Raid 10, Raid 50, Raid 60, Raid 1 Adm, Raid 10 AdmDisplay &
Graphics Controllers: Graphics
Controller Type: Integrated
Matrox G200eh2Video Memory: 16
MbNetwork & Communication: Ethernet
Ports: 2 X 10 Gigabit Ethernet, 4
X Gigabit EthernetEthernet Controller: Hp 331iData
Link Protocol: Ethernet, Fast Ethernet, Gigabit Ethernet, 10 Gigabit EthernetRemote
Management Controller: Integrated
Lights-out 4Features: Wake On Lan (wol), Pxe
SupportCompliant Standards: Ieee 802.3, Ieee 802.3 u, Ieee 802.3 abExpansion/
Connectivity: Expansion
Bays Total (free): 8 (total) / 8 (free) X Hot-swap 2.5 Sff1 (total) / 0 (free) X External 5.25E xpansion
Slots Total (free): 2 (total) / 0 (free) X Cpu24 (total) / 22 (free) X Dimm 288-pin2 (total) / 2 (free) X Pcie 3.0 X16 - Half-length, Full-height ( X8 Mode ) 2 (total) / 2 (free) X Pcie 3.0 X8 - Half-length, Full-height1 (total) / 1 (free) X Microsd Card (internal) 2 (total) / 2 (free) X Pcie 3.0 X16 - Full-length, Full-heightInterfaces
& Ports: 4 X Lan (gigabit Ethernet) 1 X Hp Ilo2 X Vga ( 1 Front, 1 Rear )5 X Usb 3.0 ( 1 Front, 2 Rear, 2 Internal )2 X Lan (10gigabit Ethernet) 2 X Usb 2.0 ( 2 In
Front )
Miscellaneous: Included
Accessories: Cable Management ArmHp Easy Install RailsCompliant Standards: Acpi 2.0 b, Fcc Class A Certified, En 61000-3-2, En55022, Ices-003, En 61000-3-3, En55024, Cispr 22, Fcc Cfr47 Part 15, Iec 60950-1, En 60950-1, Weee, Gb 9254, Cns 13438Power
Description: Device
Type: Power Supply -
Hot-plugPower Redundancy: YesPower
Redundancy Scheme: 1+1Installed
Qty: 2Max
Supported Qty: 2Nominal
Voltage: Ac 120/230
VPower Provided: 800
Watt80 Plus Certification: 80
Plus PlatinumEfficiency: 94%Dimensions
& Weight:
Width: 17.5
InchDepth: 26.7
InchHeight: 3.4
InchWeight: 32.5
LbsAvailability: In
StockCondition: RefurbishedOur
Warranty: 30 Days
