PoE Texas - 24 Port 802.3bt Managed PoE Injector - Network Power Over Ethernet Gigabit Injector PoE Adapter with App & Web Control - 80 Watts Per Port for Smart Lighting, PTZ & NDI Cameras and More
- The GBT-24-M high density midspan multi port PoE injector converts any LAN switch or PoE switch into versatile power sourcing equipment for PoE smart lighting, A/V applications, or Node Centric PoE architecture with 80 watts per port PoE++ (IEEE 802.3bt Type 3).
- With an onboard, highly visible OLED readout screen and push button controller as well as a web interface, this Power over Ethernet adapter provides an intuitive Layer 1 control as well as real-time monitoring (by port) of the status and power performance of each port.
- The 24-port gigabit injector adds high power PoE to your network without altering infrastructure. No need to purchase a larger 24 port switch. You can rely on a smaller, more cost-effective switch and simply add the Power + Data you need using this 802.3bt PoE power injector.
- 24 gigabit PoE ports deliver lightning fast wired data speeds with no loss of signal quality up to 328 feet away from the source. Active IEEE 802.3bt negotiation on Mode A and Mode B wit
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now

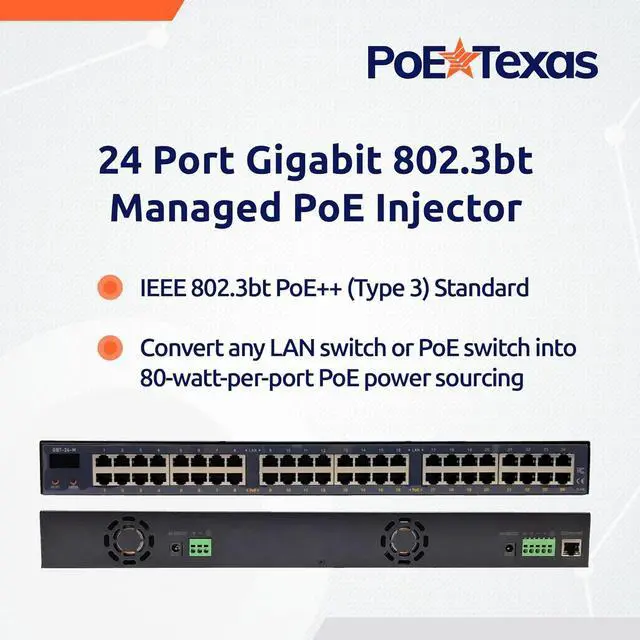

The high density Midspan GBT-24-M converts any switch or PoE switch into an 80 watt per port PoE (IEEE 802.3bt Type 3) Power Sourcing Equipment for PoE lighting, A/V applications, or Node Centric PoE architecture.
Convert any non-PoE LAN switch into reliable 80W per port PoE++ power sourcing equipment (IEEE 802.3bt Type 3). Save on hardware upgrades and reduce system downtime. Add Power and Data to downstream devices without changing existing infrastructure.

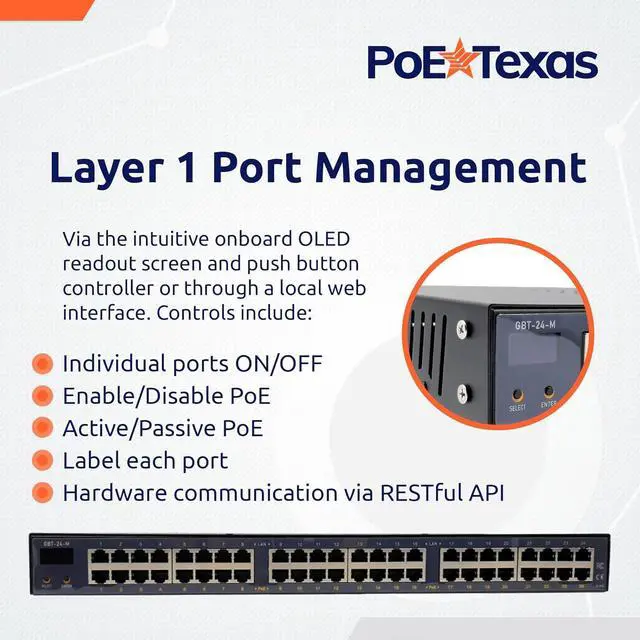

Enjoy intuitive Layer 1 control via onboard OLED display with push button controller and web interface. Monitor status and power performance in real-time, turn ports on/off, configure Active or Passive PoE, and label each port easily. Perfect for smart building deployments.
Compatible with IEEE 802.3af (Type 1 PoE), 802.3at (Type 2 PoE+), and 802.3bt (Type 3 PoE++) standards. Suitable for low voltage devices all the way up to 55V high voltage devices. Eliminating the need for a certified electrician equates to major cost savings, ease of installation, and lack of systems downtime. Ideal for high powered applications: A/V Systems, Node Centric PoE architecture, PTZ and NDI Cameras, Thinlabs PoE Computers, and PoE Smart Lighting.

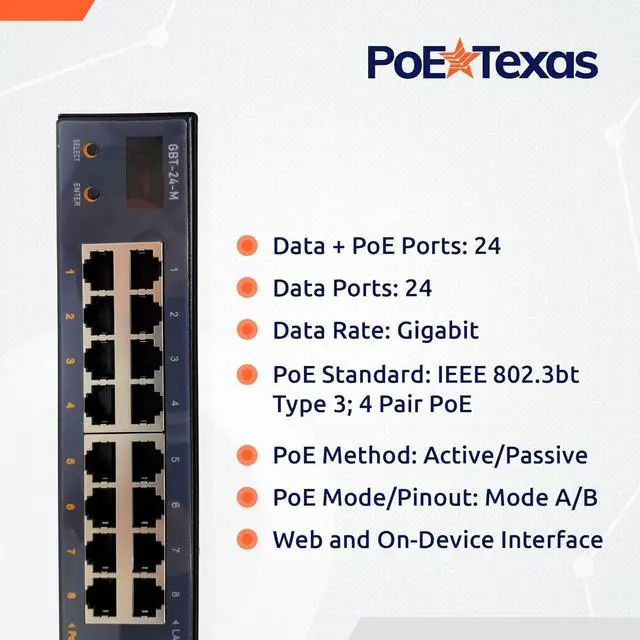

24 Data + PoE ports with Gigabit data rate. Supports IEEE 802.3bt Type 3 standard with 4 Pair PoE. Configurable for Active/Passive on Mode A/B.
Operates with 53V DC input and accepts voltage range of 48-55VDC. Delivers maximum output voltage of 53V with up to 80W per port.

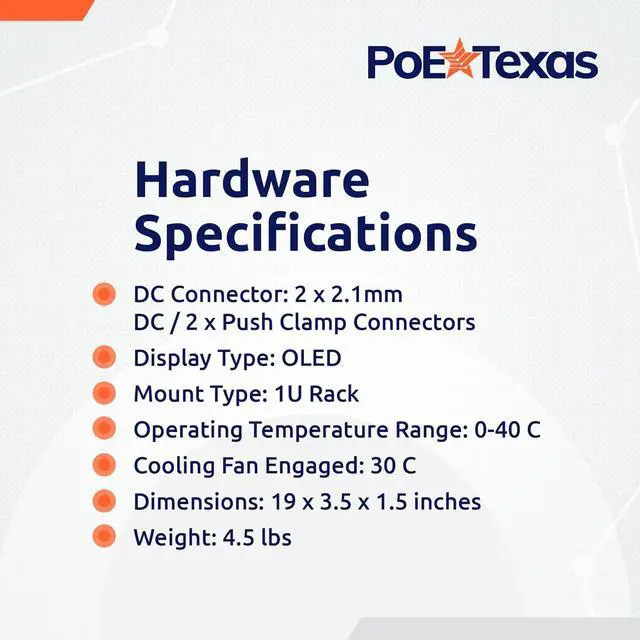

Includes 2 x 2.1mm DC connectors and 2 x Push Clamp Connectors for flexible power input. OLED display provides intuitive monitoring.

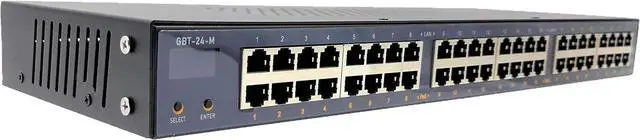

Designed for 1U rack mounting with a compact size of 19 x 3.5 x 1.5 inches. Also equipped with an automatic cooling fan.
PoE Texas delivers Power over Ethernet solutions that expand the potential of your IT infrastructure without replacing it. With more than 150 products designed to integrate with existing network technology, PoE Texas makes the promise of PoE accessible to businesses all around the world. Our top-rated team of Austin, TX based PoE experts work with companies to deliver smart buildings for lighting and automation, displays, infrastructure, and anything else in need of intelligent power.
GBT-24
Convert any non-PoE LAN switch into reliable 80W per port PoE++ power sourcing equipment (IEEE 802.3bt Type 3). Save on hardware upgrades and reduce system downtime. Add Power and Data to downstream devices without changing existing infrastructure.
Enjoy intuitive Layer 1 control via onboard OLED display with push button controller and web interface. Monitor status and power performance in real-time, turn ports on/off, configure Active or Passive PoE, and label each port easily. Perfect for smart building deployments.
Compatible with IEEE 802.3af (Type 1 PoE), 802.3at (Type 2 PoE+), and 802.3bt (Type 3 PoE++) standards. Suitable for low voltage devices all the way up to 55V high voltage devices. Eliminating the need for a certified electrician equates to major cost savings, ease of installation, and lack of systems downtime. Ideal for high powered applications: A/V Systems, Node Centric PoE architecture, PTZ and NDI Cameras, Thinlabs PoE Computers, and PoE Smart Lighting.
24 Data + PoE ports with Gigabit data rate. Supports IEEE 802.3bt Type 3 standard with 4 Pair PoE. Configurable for Active/Passive on Mode A/B.
Operates with 53V DC input and accepts voltage range of 48-55VDC. Delivers maximum output voltage of 53V with up to 80W per port.
Includes 2 x 2.1mm DC connectors and 2 x Push Clamp Connectors for flexible power input. OLED display provides intuitive monitoring.
Designed for 1U rack mounting with a compact size of 19 x 3.5 x 1.5 inches. Also equipped with an automatic cooling fan.
PoE Texas delivers Power over Ethernet solutions that expand the potential of your IT infrastructure without replacing it. With more than 150 products designed to integrate with existing network technology, PoE Texas makes the promise of PoE accessible to businesses all around the world. Our top-rated team of Austin, TX based PoE experts work with companies to deliver smart buildings for lighting and automation, displays, infrastructure, and anything else in need of intelligent power.
GBT-24
