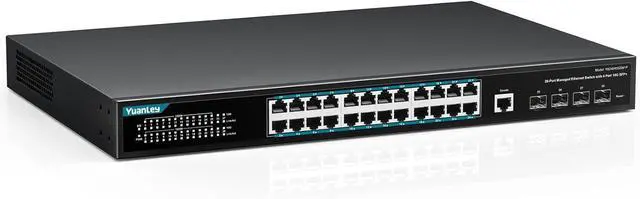

YuanLey 28 Port Gigabit Managed PoE Switch with 24 10/100/1000Mbps PoE+ Ports, 4X 10Gbps SFP+, L3 Smart Managment Ethernet Switch, VLAN, QoS, ACL, SSL, Fanless, Rackmount Network Switch

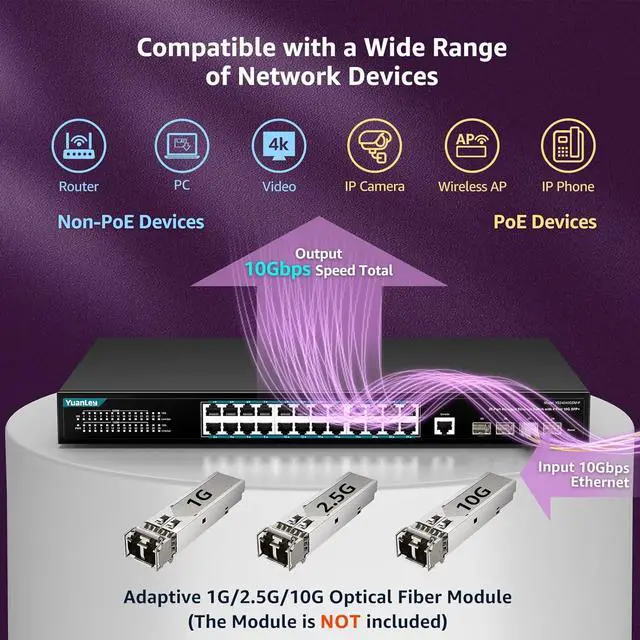

- 24 Port Gigabit Managed PoE SwitchThis network switch from YuanLey is a L3 managed poe switch equipped with 24 Gigabit poe+ ports and 4*10G SFP+ slots. With abundant L3 management features supported, switching capacity 128Gbps, it is capable of delivering high throughput to even the most demanding edge-of-network workgroups, while in small networks it can act as a backbone for Gigabit switches and high-speed servers. 4 SFP+ slots provide greater network flexibility.
- Build-in 400W PoE PowerMaximum support 400W high output power, built-in power supply, rich power budget, more consistent power supply. 24 802.3at/af standard POE ports, each port may deliver up to 30W and 15.4W simultaneously. Widely used in IP cameras, Wireless Access Point, IP Phone, Computer Networks, etc..

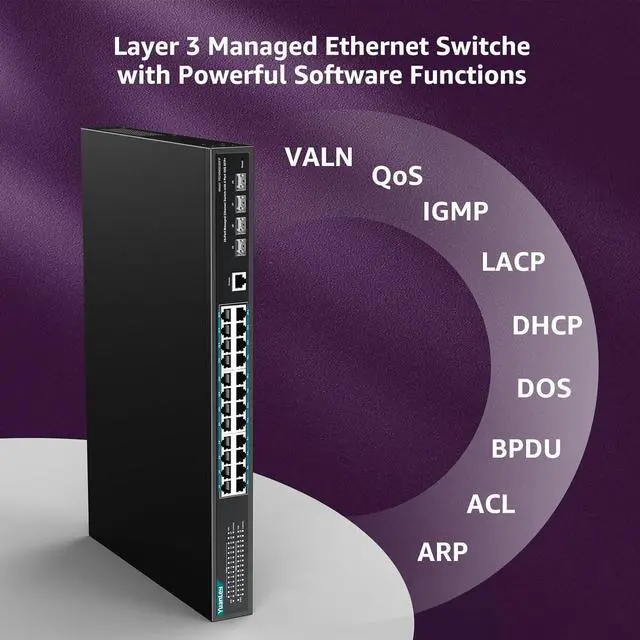

- Powerful Network FeaturesWith IEEE 802.1Q VLAN support, the VLANs can be flexibly partitioned according to your needs. Supports QoS, ACL, IGMP V1/V2 multicast protocol and IGMP Snooping, multicast VLAN and mu
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now

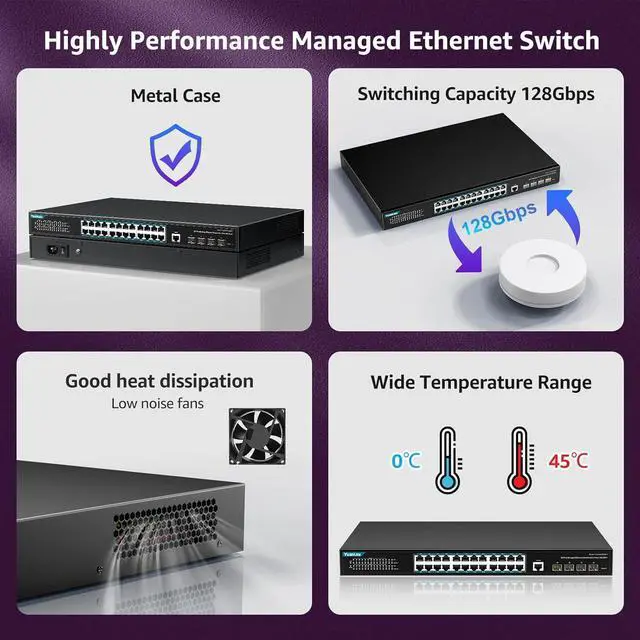

Rugged metal body with good heat dissipation and more stable running performance.
Upgrade your network with lightning-fast 128Gbps switching capacity. Perfect for businesses and homes!
The 4kV surge protection for switch power supply, can protect against lightning risk.
The network switch with a wide operating temperature range, nice for applications in demanding environments, such as outdoors, in sealed enclosures.
ModelYS24040GSM-PProduct Name28 port managed poe switch with 10G SFPEthernet port28*10M/100M/1G poe+ portSwitching Capacity128GbpsPacket Forwarding Rate95.232MppsJumbo Frame10KBMAC Address16KNetwork protocolIEEE 802.3i,802.3u,802.3ab,802.3x,802.3azWorking EnvironmentWorking Temperature: 0~45°C; Working Humidity: 10%~90%non-condensingNetworkMedia (Cable)10Base-T: UTP category 3, 4, 5 cable (maximum 100m) 100Base-Tx: UTP category 5, 5e cable (maximum 100m)1000Base-T: UTP category 5e, 6 cable (maximum 100m) 1000Base-X:MMF,SMFProduct Dimension (L*W*H)440*290*44.5 mmProduct Weight2.55kgPower InputExternal power supply AC: 100240V 50-60HzLightning Protection4KV This ItemYuanLey 28 Port Gigabit Managed PoE Switch with 24 10/100/1000Mbps PoE+ Ports, 4X 10Gbps SFP+, L3 Smart Managment Ethernet Switch, VLAN, QoS, ACL, SSL, Fanless, Rackmount Network SwitchRecommendationsMokerLink 26 Port Gigabit PoE Switch, 24 Gigabit PoE+ Ports, 2 Gigabit SFP Uplink, 300W IEEE802.3af/at, Fanless Rackmount Unmanaged Plug and Play Ethernet Switch MokerLink 24 Port 2.5G Ethernet Switch with 2x10G SFP, 24 x 2.5G Base-T Ports Compatible with 10/100/1000Mbps, Metal Unmanaged Fanless Rackmount Network Switch TP-Link TL-SG1428PE 24 Port Gigabit PoE Switch Easy Smart Managed 24 PoE+ Port @250W w/ 2 UL Gigabit Ports + 2 SFP Slots PoE Auto Recovery QoS, Vlan, IGMP & LAG NETGEAR 24-Port PoE+ Gigabit Ethernet Unmanaged Essentials Switch (GS324P) - with 16 x PoE+ @ 190W, Desktop or Rackmount 24 Port 2.5G Web Managed Ethernet Network Switch 24 x 2.5 Gigabit | 2 x 10G SFP+ | Work with 10-100-1000Mbps Devices | 160G Bandwidth | Fanless Quiet Metal Internet Switch | Rack Mount
Upgrade your network with lightning-fast 128Gbps switching capacity. Perfect for businesses and homes!
The 4kV surge protection for switch power supply, can protect against lightning risk.
The network switch with a wide operating temperature range, nice for applications in demanding environments, such as outdoors, in sealed enclosures.
ModelYS24040GSM-PProduct Name28 port managed poe switch with 10G SFPEthernet port28*10M/100M/1G poe+ portSwitching Capacity128GbpsPacket Forwarding Rate95.232MppsJumbo Frame10KBMAC Address16KNetwork protocolIEEE 802.3i,802.3u,802.3ab,802.3x,802.3azWorking EnvironmentWorking Temperature: 0~45°C; Working Humidity: 10%~90%non-condensingNetworkMedia (Cable)10Base-T: UTP category 3, 4, 5 cable (maximum 100m) 100Base-Tx: UTP category 5, 5e cable (maximum 100m)1000Base-T: UTP category 5e, 6 cable (maximum 100m) 1000Base-X:MMF,SMFProduct Dimension (L*W*H)440*290*44.5 mmProduct Weight2.55kgPower InputExternal power supply AC: 100240V 50-60HzLightning Protection4KV This ItemYuanLey 28 Port Gigabit Managed PoE Switch with 24 10/100/1000Mbps PoE+ Ports, 4X 10Gbps SFP+, L3 Smart Managment Ethernet Switch, VLAN, QoS, ACL, SSL, Fanless, Rackmount Network SwitchRecommendationsMokerLink 26 Port Gigabit PoE Switch, 24 Gigabit PoE+ Ports, 2 Gigabit SFP Uplink, 300W IEEE802.3af/at, Fanless Rackmount Unmanaged Plug and Play Ethernet Switch MokerLink 24 Port 2.5G Ethernet Switch with 2x10G SFP, 24 x 2.5G Base-T Ports Compatible with 10/100/1000Mbps, Metal Unmanaged Fanless Rackmount Network Switch TP-Link TL-SG1428PE 24 Port Gigabit PoE Switch Easy Smart Managed 24 PoE+ Port @250W w/ 2 UL Gigabit Ports + 2 SFP Slots PoE Auto Recovery QoS, Vlan, IGMP & LAG NETGEAR 24-Port PoE+ Gigabit Ethernet Unmanaged Essentials Switch (GS324P) - with 16 x PoE+ @ 190W, Desktop or Rackmount 24 Port 2.5G Web Managed Ethernet Network Switch 24 x 2.5 Gigabit | 2 x 10G SFP+ | Work with 10-100-1000Mbps Devices | 160G Bandwidth | Fanless Quiet Metal Internet Switch | Rack Mount
