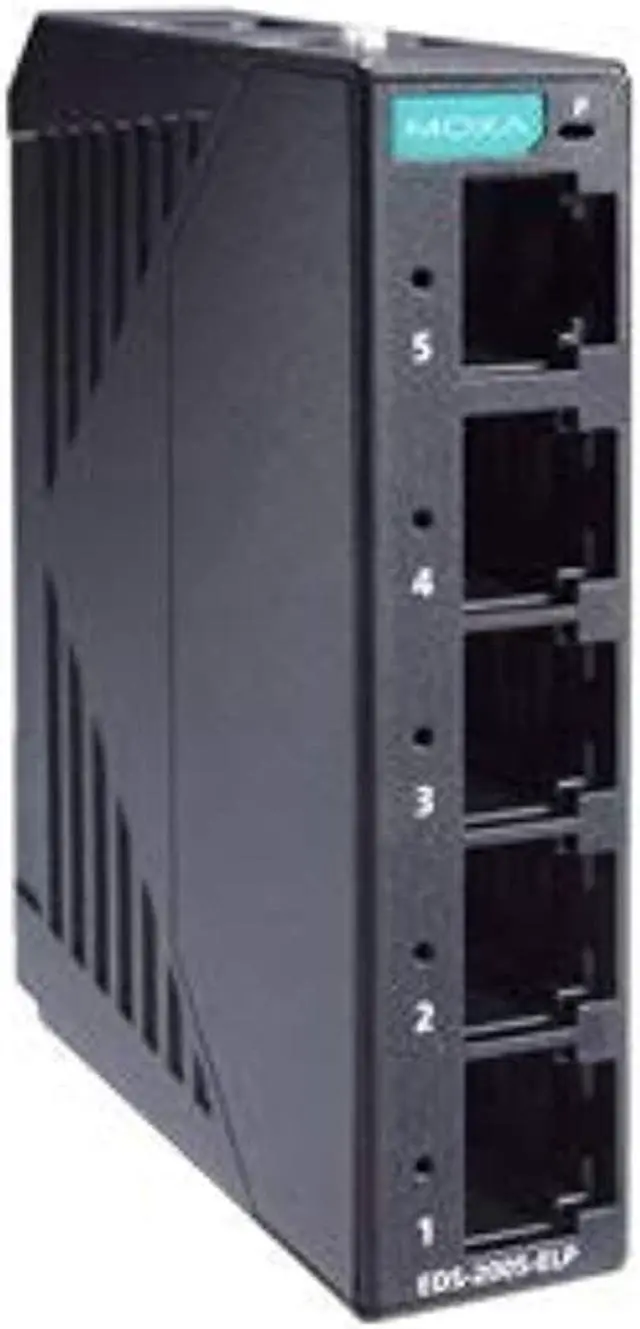

Main image of EDS-2005-ELP - 5-Port Entry-level Unmanaged Switch, 5 Fast TP ports, -10 to 60 degree C

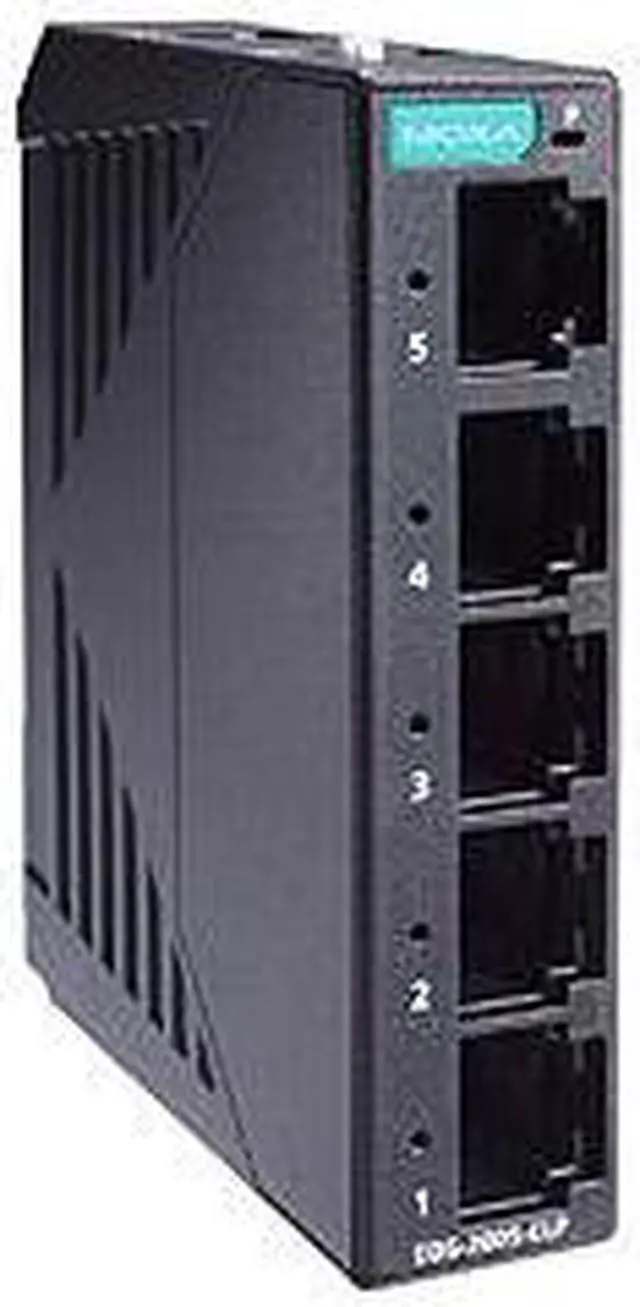

Alt view image 2 of 2 - EDS-2005-ELP - 5-Port Entry-level Unmanaged Switch, 5 Fast TP ports, -10 to 60 degree C

Shop All Moxa Products | Visit Minerdoctor Store

EDS-2005-ELP - 5-Port Entry-level Unmanaged Switch, 5 Fast TP ports, -10 to 60 degree C

- 10/100BaseT(X) (RJ45 connector)
- Compact size for easy installation
- QoS supported to process critical data in heavy traffic
- IP40-rated plastic housing

Overview

Reviews

Any questions? Our AI beta will help you find out quickly.

Try me now

The EDS-2005-ELP series of industrial Ethernet switches have five 10/100M copper ports and a plastic housing, which are ideal for applications that require simple industrial Ethernet connections. Moreover, to provide greater versatility for use with applications from different industries, the EDS-2005-ELP Series also allows users to enable or disable the Quality of Service (QoS) function, and broadcast storm protection (BSP) with DIP switches on the outer panel. The EDS-2005-ELP Series has a 12/24/48 VDC single power input, DIN-rail mounting, and high-level EMI/EMC capabilities. In addition to its compact size, the EDS-2005-ELP Series has passed a 100% burn-in test to ensure it will function reliably after it has been deployed.

The EDS-2005-EL Series has a standard operating temperature range of -10 to 60°C.
