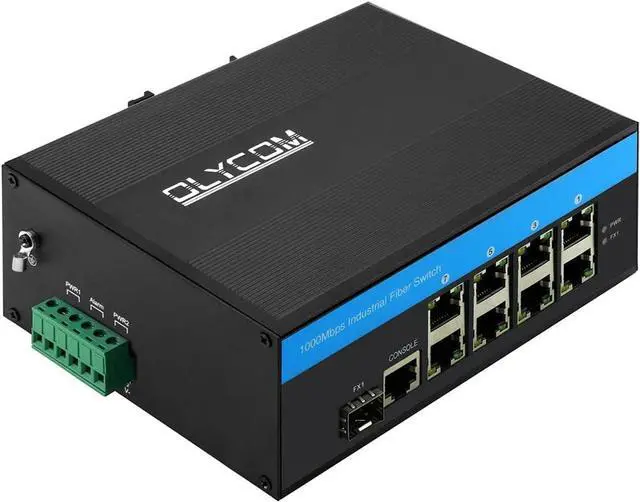

9 Port POE++ 240W Outdoor 10/100/1000M L2 Managed SFP Switch 8 X Gigabit POE Ports 1 X SFP Slot DIN-Rail Mount with Vlan Qos LACP STP/RSTP
- PORT: 8 x Gigabit Ethernet RJ45 ports with POE AT 30W for each port, 1 x Gigabit SFP slots, 1 x managed console network port ( WITHOUT SFPS and POWER ADAPTER).
- L2 MANAGED: This managed industrial fiber switch supports STP, RSTP, MSTP, ITU-T G.8032 EPR, Qos, IEEE802.1q VLAN, VLAN port, based Mac VLAN, IP subnet VLAN, Protocol VLAN, VLAN convert, MVR IGMP/MLD snooping V1/V2/V3, IGMP filtrating/ modulating, IGMP searching and other managed functions ( Details are in the description).
- EXTREME TEMPERATURE SWITCH: The metal hardened IP40 rated industrial switch is equipped with a rugged IP40 rated enclosure and designed to withstand a high degree of vibration, shock, protection against ESD/EMI/surge, and operate with a wide temperature range (- 40 75 °C (- 40 - 167 °F)) for harsh environments

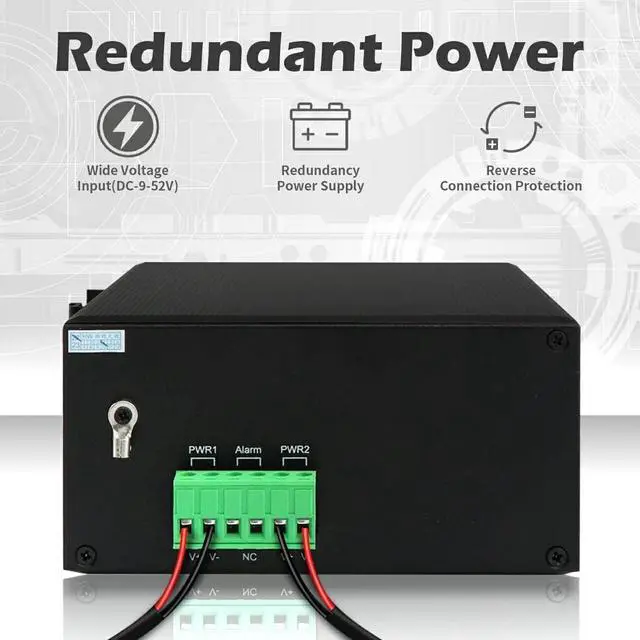

- REDUNDANT POWER: The 9 ports industrial switch has dual redundant power inputs with overload current protection (power supply sold separately and require one 48VDC5A power adapter)
- WHAT YOU GET:
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Q&A
Q: Does this managed switch include the power supply?
A: No, it doesn't include a power adapter.
Q: Which power adapter does this POE++ L2 industrial switch require?
A: The input voltage is 9-52VDC. If the input voltage is not 48VDC-52VDC, it is a non-POE managed switch and it can work too. The power adapter can be 12VDC 3A. If the input voltage is 48VDC-52VDC, it is a POE-managed industrial switch.
Q: What POE standards it is?
A: This is a POE++ industrial switch. Each network port can reach 30W if the power adapter is 48VDC5A.
Q: What temperature range can this switch reach?
A: The operating temperature is -4075-40167°F
Q: Does it come with a small din rail?
A: This is a din rail switch, but the din rail is not included.
Q: Is it a managed switch?
A: Yes, this is an L2-managed POE++ industrial fiber network switch.
The 10/100/1000 Mbps managed industrial POE++ fiber switch has 8 ports 10/100/1000M downlink network ports, 1 port 1000M uplink SFP fiber ports and one console port. The system bandwidth is 40Gbps and jumbo frame is 9.6K.

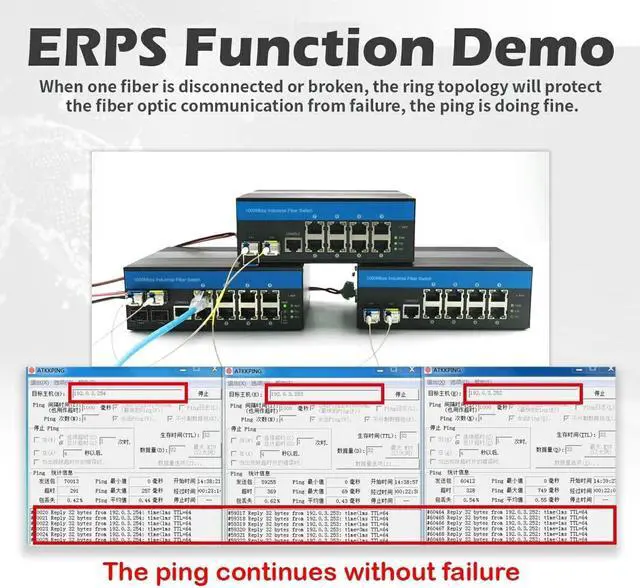

This managed switch supports STP, RSTP, MSTP, ITU-T G.8032 Ethernet Protection Ring(EPR), Qos, transport classificationQos, Cos, IEEE802.1q VLAN,VLAN port ,based Mac VLAN,IP subnet VLAN, Protocol VLAN,VLAN convert, MVR, IGMP/MLD snooping V1/V2/V3, IGMP filtrating/ modulating, IGMP searching ect.

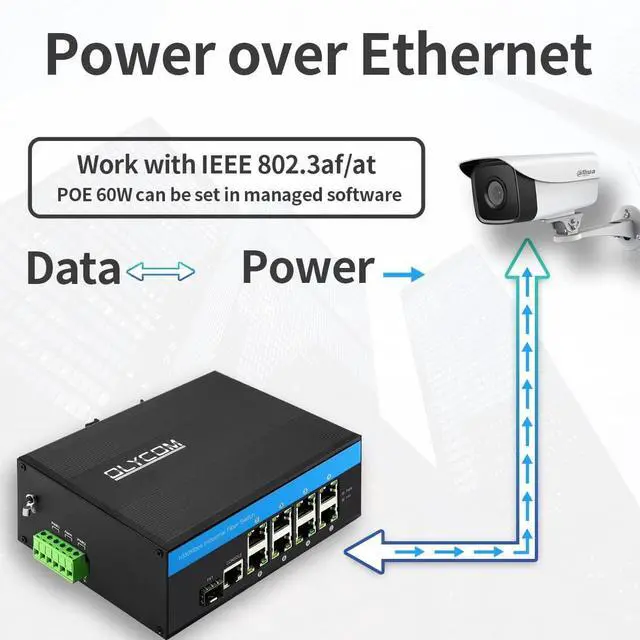

This is a POE++ industrial switch. Each network port can reach 30W if the power adapter is 48VDC5A. If the power adapter is less than 5A, the POE can be 30W or 15.4W.
Easy to use with Din-rail mounted and save space and time. ( Sold without din rail mount and need to order separately). The din rail switch aslo can be customized to be desktop.

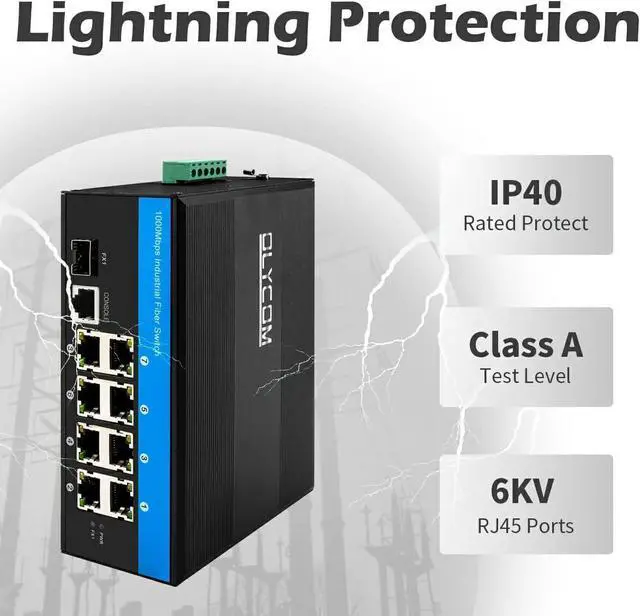

The industrial switch's 4KV power port surge protection and 2KV network port surge protection can adapt to harsh outdoor environments and ensure the reliability of the uninterrupted network system.

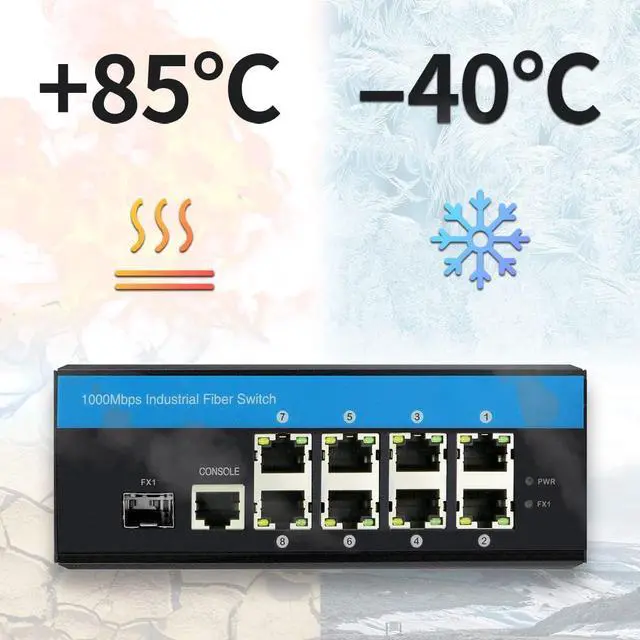

The 9 port industrial Ethernet switches are designed with industrial operating temperatures ranging from -40ºC to 75ºC to pass through dangerous environmental.
The industrial Ethernet switch supports a dual power supply which input voltage is 48-52VDC (Sold without a power adapter and need to order separately). Support reverse connection.
The 9 ports managed switch support WEB and CLI console managed. Support software upgrade via TFTP and HTTP, firmware redundancy prevents upgrade from failing. DHCP client/Relay/Snooping/Snooping option 82/Relay option 82, RMON, MIB II, mirror image, event log, DNS, NTP/SNTP, IEEE802.1ab LLDP.

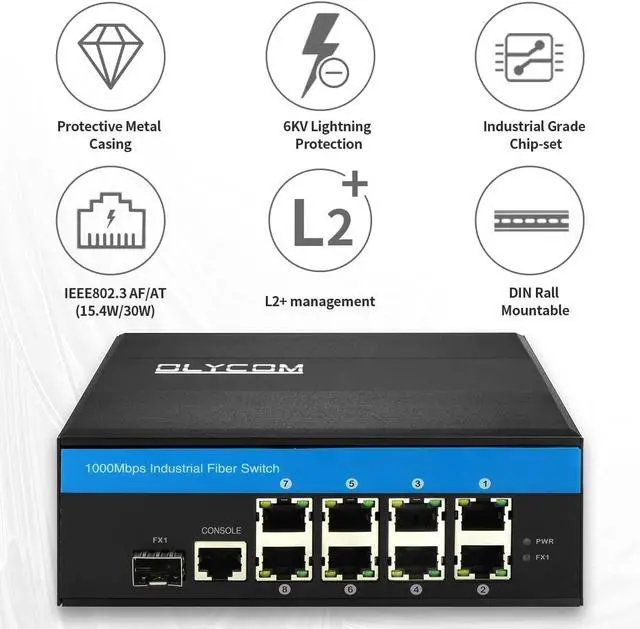

Product Name9port L2 POE++ Industrial Fiber Switch Product No.IM-FP188GWPort1x1000Base-FX SFP fiber port, 8x10/100/1000Base-T RJ45 port, 1xconsole port POE StandardPOE af/at (15.4W/30W)Input Power48-52VDC ( Sold without a power adapter), redundant power supplyPower TerminalPhoenix terminalShellIP40 protection grade, metal shellMount TypeDin-RailWorking Temperature-4075-40167°F Product Size158 x 114.8 x 60mm (6.22x4.53x2.36in)Product Weight0.85Kg(1.87 lb)Industry StandardsEMIFCC Part 15 Subpart B Class AEN 55022 Class A EMSEN 61000-4-2 (ESD) Level 3EN 61000-4-3 (RS) Level 3, EN 61000-4-4 (EFT) Level 3EN 61000-4-5 (Surge) Level 3, EN 61000-4-6 (CS) Level 3EN 61000-4-8 Traffic ControlNEMA-TS2 VibrationIEC 60068-2-6 FreefallIEC 60068-2-32 ShockIEC 60068-2-27 Rail TrafficEN 50121-4 Full Gigabit Port L2+ Managed Switch Poe++ Switch Din-rail Mounted Lightning Protection Industrial Operating Temperature Dual Power Supply Smart Managed Software Specification
Q: Does this managed switch include the power supply?
A: No, it doesn't include a power adapter.
Q: Which power adapter does this POE++ L2 industrial switch require?
A: The input voltage is 9-52VDC. If the input voltage is not 48VDC-52VDC, it is a non-POE managed switch and it can work too. The power adapter can be 12VDC 3A. If the input voltage is 48VDC-52VDC, it is a POE-managed industrial switch.
Q: What POE standards it is?
A: This is a POE++ industrial switch. Each network port can reach 30W if the power adapter is 48VDC5A.
Q: What temperature range can this switch reach?
A: The operating temperature is -4075-40167°F
Q: Does it come with a small din rail?
A: This is a din rail switch, but the din rail is not included.
Q: Is it a managed switch?
A: Yes, this is an L2-managed POE++ industrial fiber network switch.
The 10/100/1000 Mbps managed industrial POE++ fiber switch has 8 ports 10/100/1000M downlink network ports, 1 port 1000M uplink SFP fiber ports and one console port. The system bandwidth is 40Gbps and jumbo frame is 9.6K.
This managed switch supports STP, RSTP, MSTP, ITU-T G.8032 Ethernet Protection Ring(EPR), Qos, transport classificationQos, Cos, IEEE802.1q VLAN,VLAN port ,based Mac VLAN,IP subnet VLAN, Protocol VLAN,VLAN convert, MVR, IGMP/MLD snooping V1/V2/V3, IGMP filtrating/ modulating, IGMP searching ect.
This is a POE++ industrial switch. Each network port can reach 30W if the power adapter is 48VDC5A. If the power adapter is less than 5A, the POE can be 30W or 15.4W.
Easy to use with Din-rail mounted and save space and time. ( Sold without din rail mount and need to order separately). The din rail switch aslo can be customized to be desktop.
The industrial switch's 4KV power port surge protection and 2KV network port surge protection can adapt to harsh outdoor environments and ensure the reliability of the uninterrupted network system.
The 9 port industrial Ethernet switches are designed with industrial operating temperatures ranging from -40ºC to 75ºC to pass through dangerous environmental.
The industrial Ethernet switch supports a dual power supply which input voltage is 48-52VDC (Sold without a power adapter and need to order separately). Support reverse connection.
The 9 ports managed switch support WEB and CLI console managed. Support software upgrade via TFTP and HTTP, firmware redundancy prevents upgrade from failing. DHCP client/Relay/Snooping/Snooping option 82/Relay option 82, RMON, MIB II, mirror image, event log, DNS, NTP/SNTP, IEEE802.1ab LLDP.
Product Name9port L2 POE++ Industrial Fiber Switch Product No.IM-FP188GWPort1x1000Base-FX SFP fiber port, 8x10/100/1000Base-T RJ45 port, 1xconsole port POE StandardPOE af/at (15.4W/30W)Input Power48-52VDC ( Sold without a power adapter), redundant power supplyPower TerminalPhoenix terminalShellIP40 protection grade, metal shellMount TypeDin-RailWorking Temperature-4075-40167°F Product Size158 x 114.8 x 60mm (6.22x4.53x2.36in)Product Weight0.85Kg(1.87 lb)Industry StandardsEMIFCC Part 15 Subpart B Class AEN 55022 Class A EMSEN 61000-4-2 (ESD) Level 3EN 61000-4-3 (RS) Level 3, EN 61000-4-4 (EFT) Level 3EN 61000-4-5 (Surge) Level 3, EN 61000-4-6 (CS) Level 3EN 61000-4-8 Traffic ControlNEMA-TS2 VibrationIEC 60068-2-6 FreefallIEC 60068-2-32 ShockIEC 60068-2-27 Rail TrafficEN 50121-4 Full Gigabit Port L2+ Managed Switch Poe++ Switch Din-rail Mounted Lightning Protection Industrial Operating Temperature Dual Power Supply Smart Managed Software Specification
