E-link 50M OS2 LC-LC Outdoor Armored Simplex Single Mode Fiber Cable LSZH
- LC to LC Jumper Optic Patch Cord50 Meter(165ft) Outdoor Armored LC to LC Fiber Patch Cable, Single Mode 9/125 Corning fiber optic cable, LSZH, zip-cord reinforced, 3.0mm Diameter, 1.25mm Ceramic Ferrule, Fiber Patch Cable, Ultra Optical Fiber combines the benefit of industry-leading attenuation and improved performance, all in one fiber, along with being fully backward compatible with installed base of legacy single-mode fibers.
- Outdoor LC/UPC to LC/UPC Single mode Fiber Optic Patch CableThis OS2 fiber patch cable body is made of Ultra Low Friction flame retardant LSZH jacket (Coefficient of Friction <0.2). Low Friction Cables are the ideal solution for wiring premises. The stiffness allows the cable to be installed by pushing as well as by the more conventional pulling method. These cables can even be used in congested conduits.
- High Reliable LC-LC Fiber: High Rated OS2 9/125m Fiber and Cladding, which is Insensitive to bending, Easy peeling, Easy welding, ensures small o
+
+
Overview
Specs
Reviews
Any questions? Ask CelesteSM will help you find out quickly.
Try me now
Overview:

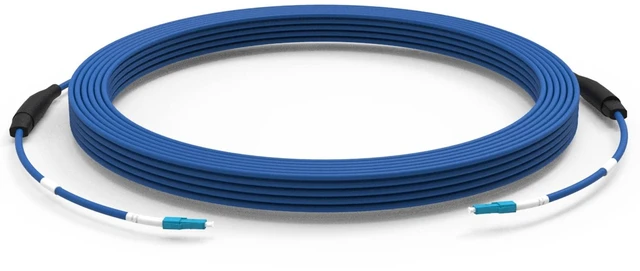

165ft 50m LC to LC Outdoor Armored Simplex 9/125 SM Fiber Optic Cable Jumper Optical Patch Cord Singlemode 50Meters 165ft LC-LC
Specification:
Connector: LC/UPC to LC/UPC
Fiber Core: OS2 9/125m
Wavelength: 1310/1550nm
Fiber Grade: G.657.A2(Compatible G.652.D)
Fiber Count: Simplex
Cable Diameter: 3.0mm
Ferrule: Ceramic Ferrule
Length: 50M(165ft)
Insertion Times: >1000 times
Optical Cable Outer Diameter: 7.0mm
Insertion Loss: 0.3dm
Return Loss: 50dm
Cable Jacket: LSZH with Low-Friction Characteristic
Tensile Load: 120/225N(Long/Short Term)
Operating Temperature: -40-85
Key Features:
50Meters,Outdoor Armored Cable,9/125,LC-LC ,Simplex,Single mode
Compatible with all standard fibre optic equipment and connectors
Ceramic connectors ensure low signal loss, and high reliability
All our products are 100% new fiber optic cable of carrier-class quality ,and 100% test before delivery
Low Insertion Loss & Low Attenuation
Assembled with Simplex, small form factor, 1.25mm ceramic ferrule, LC connectors designed for compact, high cable density environments. Connectors include pre-installed simplex LC clips Insertion Loss0.3dB, Return Loss 50dB.

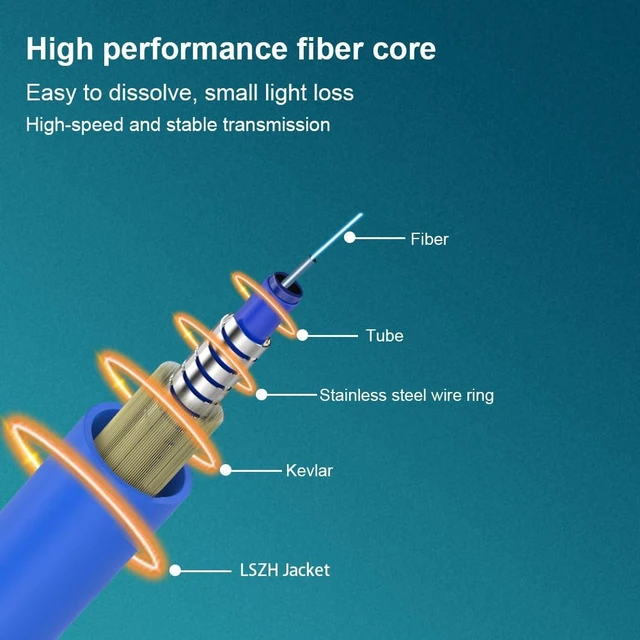

Core/Cladding Parameter
Corning 9 micron diameter fiber core/125 micron diameter cladding. The fiber optic core is surrounded by a transparent, low refraction, cladding material. Light is contained within the fiber core (total internal reflection) causing the fiber within the patch cord assembly to act as a wave-guide. Light travels through the fiber bouncing off the boundary between core & cladding.
