AMPCOM 800G OSFP Transceiver Compatible for MMA4Z00-NS 2xSR4 InfiniBand NDR
- IHS/Finned Top, Twin-port OSFP 2x400G, MMF 850nm 50m OM4, PAM4, Dual MPO-12/APC, QM9700/QM9790 verified, for NVIDIA/Mellanox
- PURPOSE-BUILT FOR AI & HPC DATA CENTERS: Enables 800G NDR switch-to-switch spine-leaf topologies, 800G-to-2x400G NDR breakout to ConnectX-7/ConnectX-8 HCAs, and 800G-to-4x200G NDR200 fan-out the dual-port SR8 architecture doubles port density by fitting 64 ports of 400Gb/s into a 32-cage Quantum-2 switch, reducing the transceiver count and per-port cost in large-scale GPU clusters without sacrificing bandwidth
- 800G TWIN-PORT OSFP 2xSR4 SPECIFICATION: 800Gb/s aggregate bandwidth via dual 400Gb/s internal engines over 8×106.25Gb/s PAM4 channels per engine at 850nm supports 30m on OM3 and 50m on OM4 multimode fiber through dual MPO-12/APC connectors, sub-14W typical power consumption with 0-70°C case temperature range, fully compliant with OSFP MSA, CMIS 4.0, and RoHS for reliable deployment in air-cooled and liquid-cooled data center racks
- BROADCOM DSP & VC
+
+
Overview
Specs
Reviews
Any questions? Ask CelesteSM will help you find out quickly.
Try me now

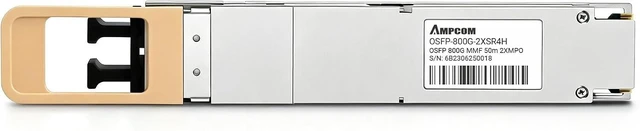

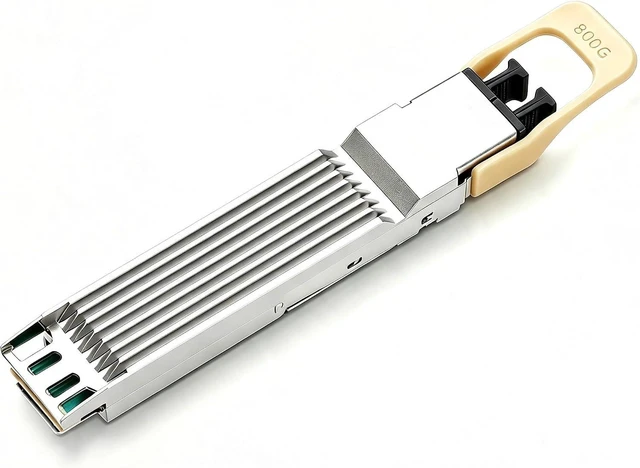

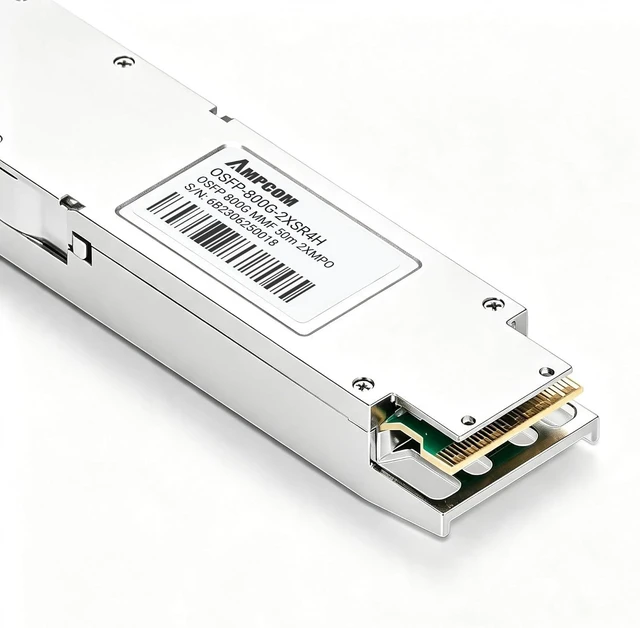

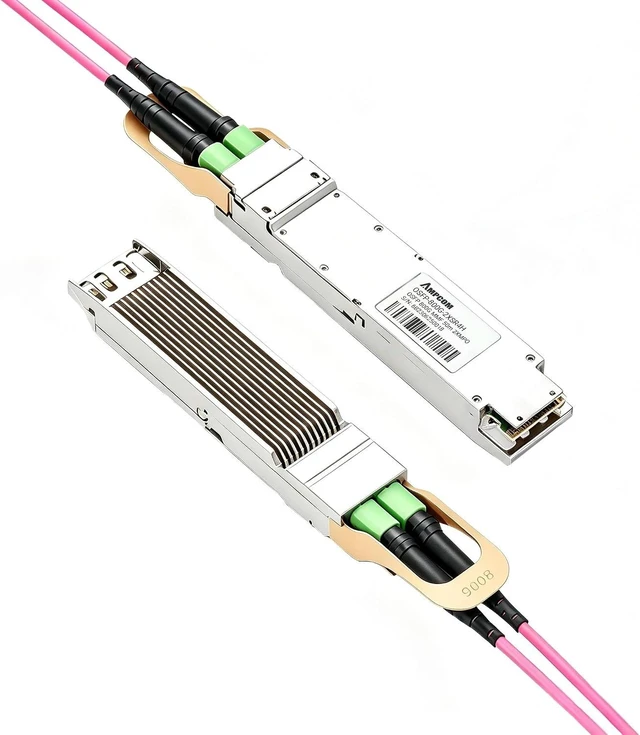

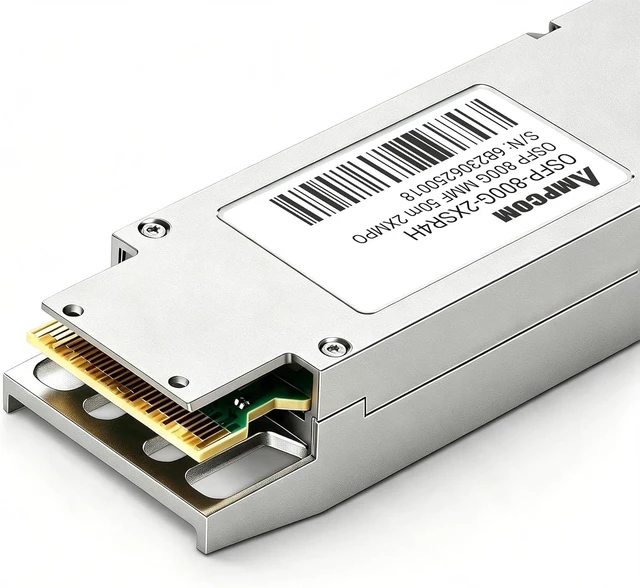

AMPCOM OSFP-800G-2xSR4H, built with Broadcom DSP and Broadcom VCSEL, is an InfiniBand and Ethernet 800Gb/s 2x400Gb/s Twin-port OSFP, SR8 multimode, parallel, 8-channel transceiver using two, 4-channel MPO-12/APC optical connectors at 400Gb/s each.

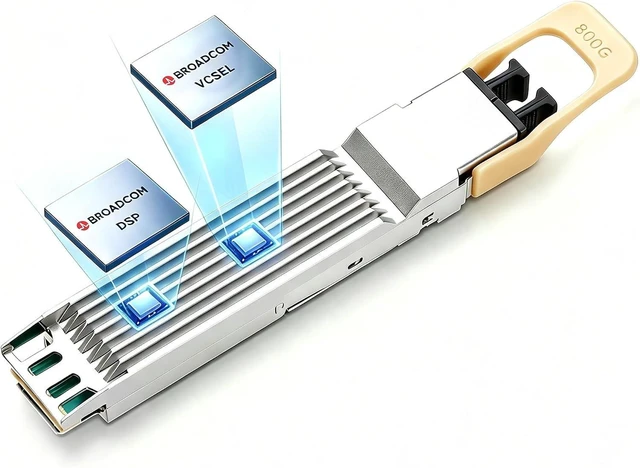

Chip Solutions Broadcom DSP & Broadcom VCSEL Form Factor Twin-port OSFP Distance 30m (OM3) /50m (OM4) Wavelength 850nm Connector Two MPO-12/APC Power Consumption 14W Media MMF Modulation (electrical) 8x106.25Gb/s PAM4 Modulation (Optical) Two ports 4x106.25Gb/s PAM4 Case Temperature () 0~70°C (32 to 158°F) Protocol IB NDR, 800G Ethernet Compliant 11.6T/800G to 800G21.6T/800G to 400G31.6T/800G to 400G41.6T/800G to 4X200G AMPCOMs OSFP-800G-2xSR4H transceiver features an original-equivalent Broadcom DSP and Broadcom VCSEL design, meeting the stringent demands of AI data centers for superior signal integrity, low power consumption, low BER, and high stability. Rigorously tested and verified compatible with NVIDIA QM9700/QM9790, the module is widely recognized by customers.
During LL FEC (272,257) testing, AMPCOM transceivers achieve Pre-FEC BER of -8~-10, and near-zero post-correction, reducing operations and maintenance (O&M) complexity and costs.
Specifications Accelerating Al Networking Innovation Accelerating Al Networking Innovation Low BER on Par Multi-Version Connectivity BER Multi-Version Connectivity BER
Chip Solutions Broadcom DSP & Broadcom VCSEL Form Factor Twin-port OSFP Distance 30m (OM3) /50m (OM4) Wavelength 850nm Connector Two MPO-12/APC Power Consumption 14W Media MMF Modulation (electrical) 8x106.25Gb/s PAM4 Modulation (Optical) Two ports 4x106.25Gb/s PAM4 Case Temperature () 0~70°C (32 to 158°F) Protocol IB NDR, 800G Ethernet Compliant 11.6T/800G to 800G21.6T/800G to 400G31.6T/800G to 400G41.6T/800G to 4X200G AMPCOMs OSFP-800G-2xSR4H transceiver features an original-equivalent Broadcom DSP and Broadcom VCSEL design, meeting the stringent demands of AI data centers for superior signal integrity, low power consumption, low BER, and high stability. Rigorously tested and verified compatible with NVIDIA QM9700/QM9790, the module is widely recognized by customers.
During LL FEC (272,257) testing, AMPCOM transceivers achieve Pre-FEC BER of -8~-10, and near-zero post-correction, reducing operations and maintenance (O&M) complexity and costs.
Specifications Accelerating Al Networking Innovation Accelerating Al Networking Innovation Low BER on Par Multi-Version Connectivity BER Multi-Version Connectivity BER
