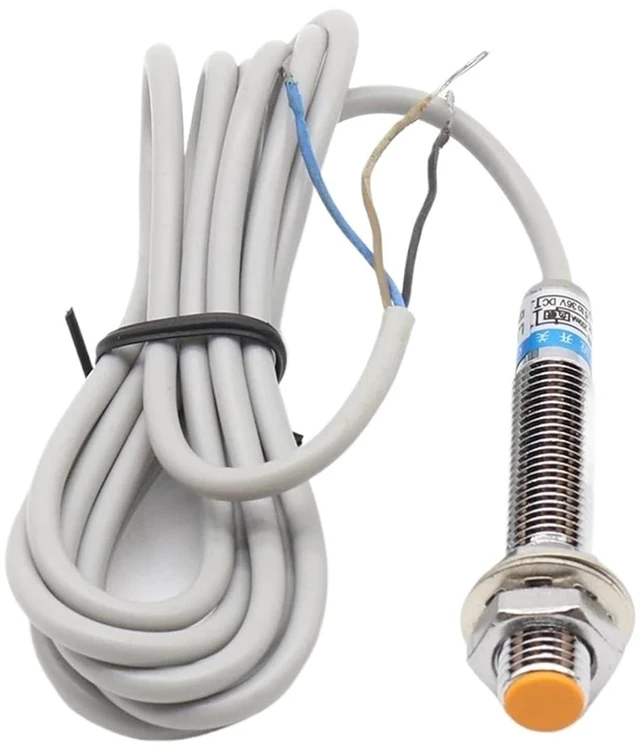

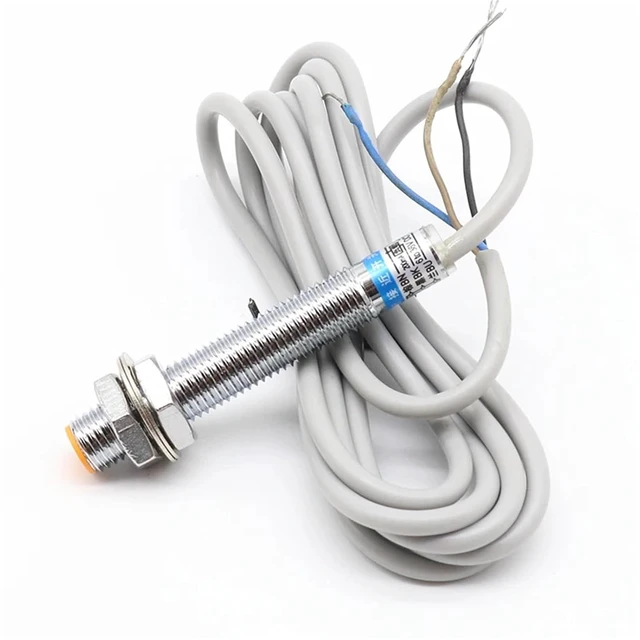

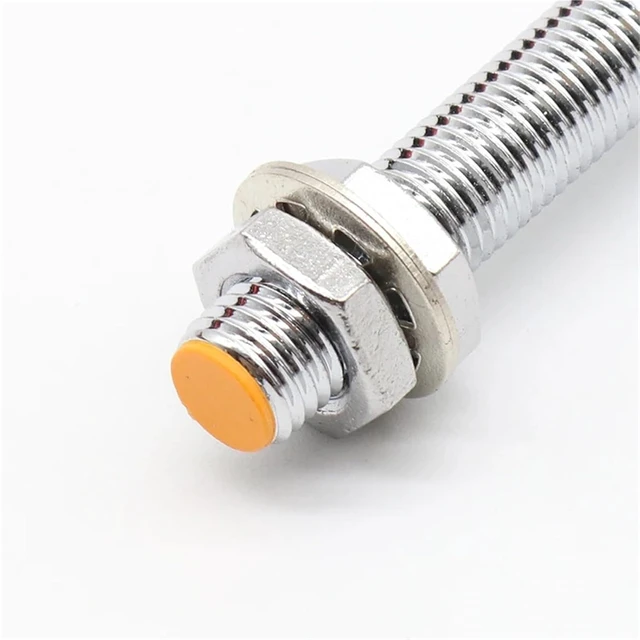

1pc M8 LJ8A3-1-Z/BX 1mm Induction NPN NC Metal Sensor inductive Proximity Switch Screen Shield Type LJ8A3 Sensor Switch
- Switches
- 1pc M8 LJ8A3-1-Z/BX 1mm induction NPN NC metal sensor inductive proximity switch Screen shield type LJ8A3 sensor switch
+
+
Overview
Specs
Reviews
Any questions? Ask CelesteSM will help you find out quickly.
Try me now
Switches
Model number:LJ8A3-1 series
External dimensions:M8x45
Installation type: Shielded
Detection distance: 1mm
Setting distance: 0-1.2 mm
Supply voltage: 6-36Vdc
Output current: type: 300mA max; AC Type: 400mA
Standard detected object: Mild steel (12x12x1mm)
Sensing object: Magnetic metals (if it is not magnetic metals, the sensing distance would decrease)
Response frequency: 500Hz
Output indication: Red LED
Short-circuit protection: NO
Reverse connection protection: Yes
Insulation resistance: 50M min (between charging part and housing)
Dielectric strength: 1000Vac, 1min (between charging part and housing)
IP Rating: IP65
Operating temperature: 25 to 70 °C (13 to 158 °F)
Cable length: 1.2m, PVC cable
Material: Case: Brass-nickel plated; Sensing surface: ABS
==========
Switch Type : Proximity Switch
Model Number : LJ8A3-1-Z/BX
Item Type : SWITCHES
Model number:LJ8A3-1 series
External dimensions:M8x45
Installation type: Shielded
Detection distance: 1mm
Setting distance: 0-1.2 mm
Supply voltage: 6-36Vdc
Output current: type: 300mA max; AC Type: 400mA
Standard detected object: Mild steel (12x12x1mm)
Sensing object: Magnetic metals (if it is not magnetic metals, the sensing distance would decrease)
Response frequency: 500Hz
Output indication: Red LED
Short-circuit protection: NO
Reverse connection protection: Yes
Insulation resistance: 50M min (between charging part and housing)
Dielectric strength: 1000Vac, 1min (between charging part and housing)
IP Rating: IP65
Operating temperature: 25 to 70 °C (13 to 158 °F)
Cable length: 1.2m, PVC cable
Material: Case: Brass-nickel plated; Sensing surface: ABS
==========
Switch Type : Proximity Switch
Model Number : LJ8A3-1-Z/BX
Item Type : SWITCHES
