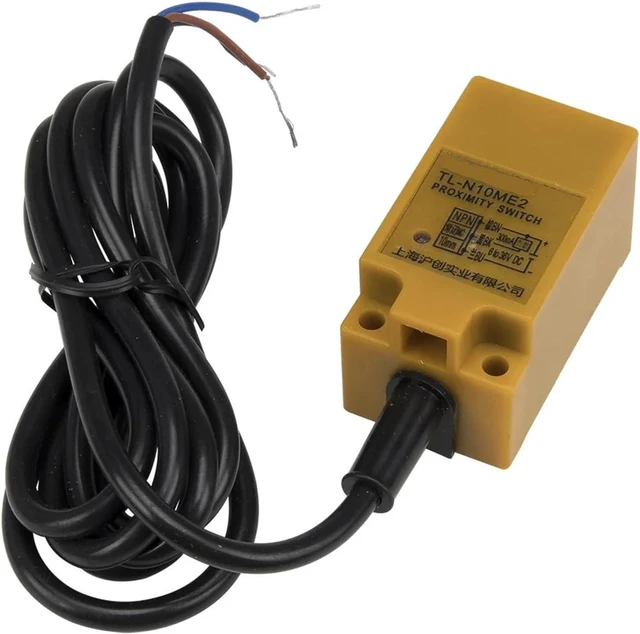

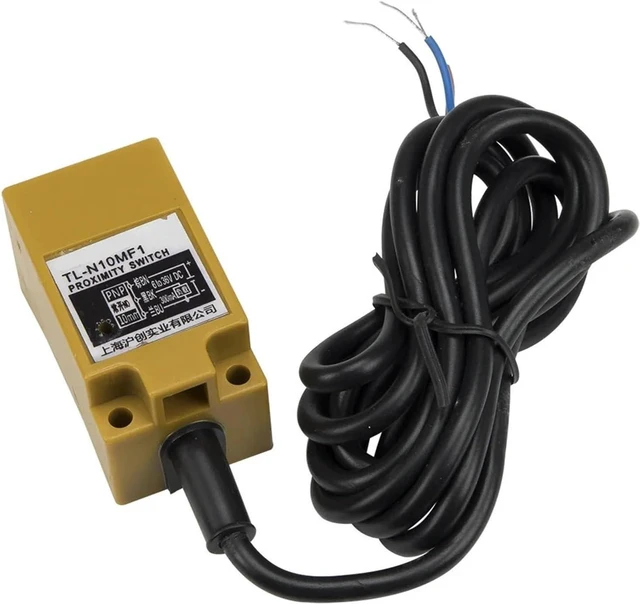

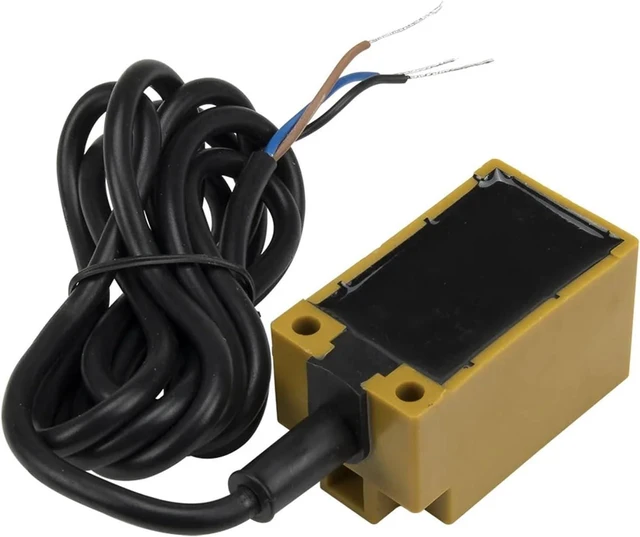

1pc 30x30x52 10mm Sensing NPN PNP NO NC TL-N10ME1 TL-N10ME2 TL-N10MF1 TL-N10MF2 Prism Shape inductive Proximity Sensor Switch(E1 NPN NO)

Switches
TL-N10M series prism shape inductive proximity sensor
Operating form and model number
Current type
Operating form
Contact form
Model number
Related product

NPN
NO
TL-N10ME1
Visiting...

NPN
NC
TL-N10ME2
Visiting...

NPN
NO+NC
TL-N10ME4
Order

PNP
NO
TL-N10MF1
Visiting...

PNP
NC
TL-N10MF2
Visiting...

PNP
NO+NC
TL-N10MF4
Order

Two wires
NO
TL-N10MD1
Order

Two wires
NC
TL-N10MD2
Order
AC
Two wires
NO
TL-N10MY1
Order
AC
Two wires
NC
TL-N10MY2
Order
General
Model number
TL-N10M series
External dimensions
30x30x52
Installation type
Non-shielded
Detection distance
10mm
Supply voltage
12-24Vdc (6-36Vdc); 110-220Vac (36-250Vac), 50/60Hz
Rated output current
N.P Type: 300mA max; D type: 200mA max; AC Type: 400mA
Standard detected object
Mild steel (30x30x1mm)
Sensing object
Magnetic metals (if it is not magnetic metals, the sensing distance would decrease)
Response frequency
NPN or PNP: 0.2kHz; Two wires of : 0.2kHz; Two wires of AC: 25Hz
Leakage current
N.P Type: 13mA max; D type: 0.8mA max; A Type: 1.7mA max
Hysteresis
10% max. of sensing distance
Protection circuit
: Reverse connection protection, Surge suppressor, Short-circuit protection
AC: Surge suppressor
Insulation resistance
50M min (between charging part and housing)
Dielectric strength
1000Vac, 1min (between charging part and housing)
Temperature influence
±10% max. of sensing distance at 23°C within temperature range of -25°C to 60°C
±15% max. of sensing distance at 23°C within temperature range of -30°C to 65°C
Voltage influence
±10% max. of sensing distance in rated voltage range ±15%
IP Rating
IP67
Material
Case: ABS;
