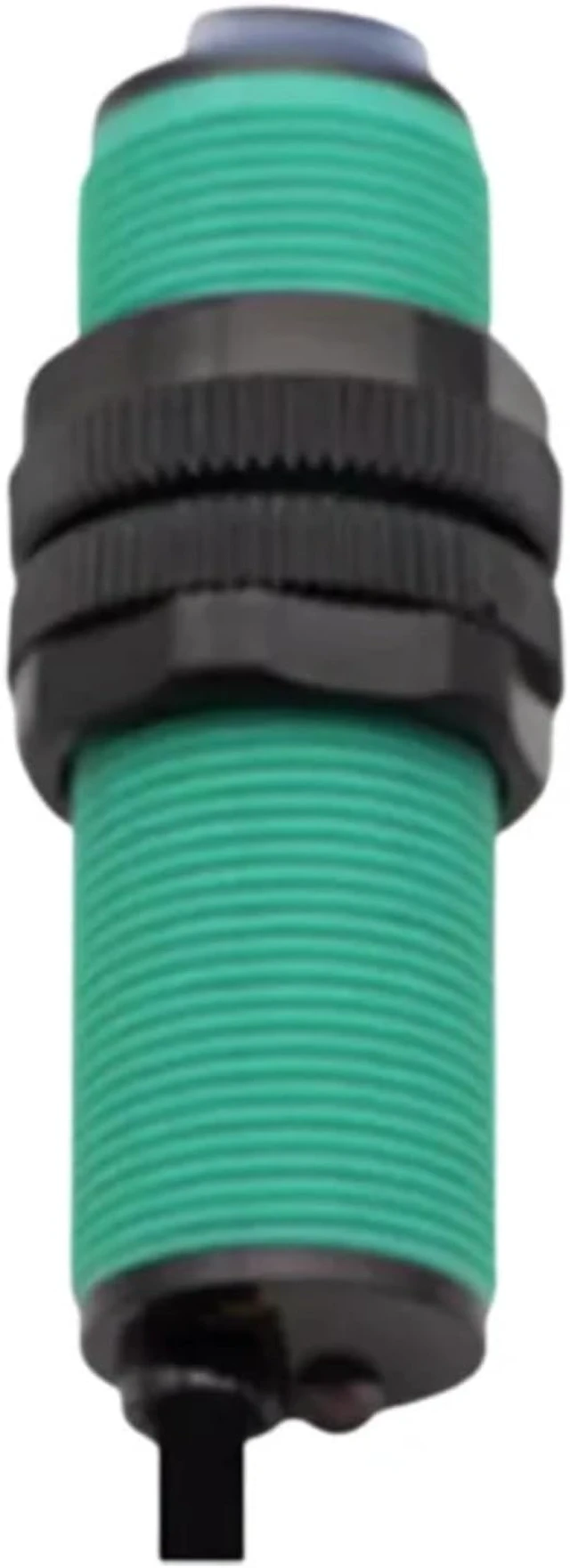

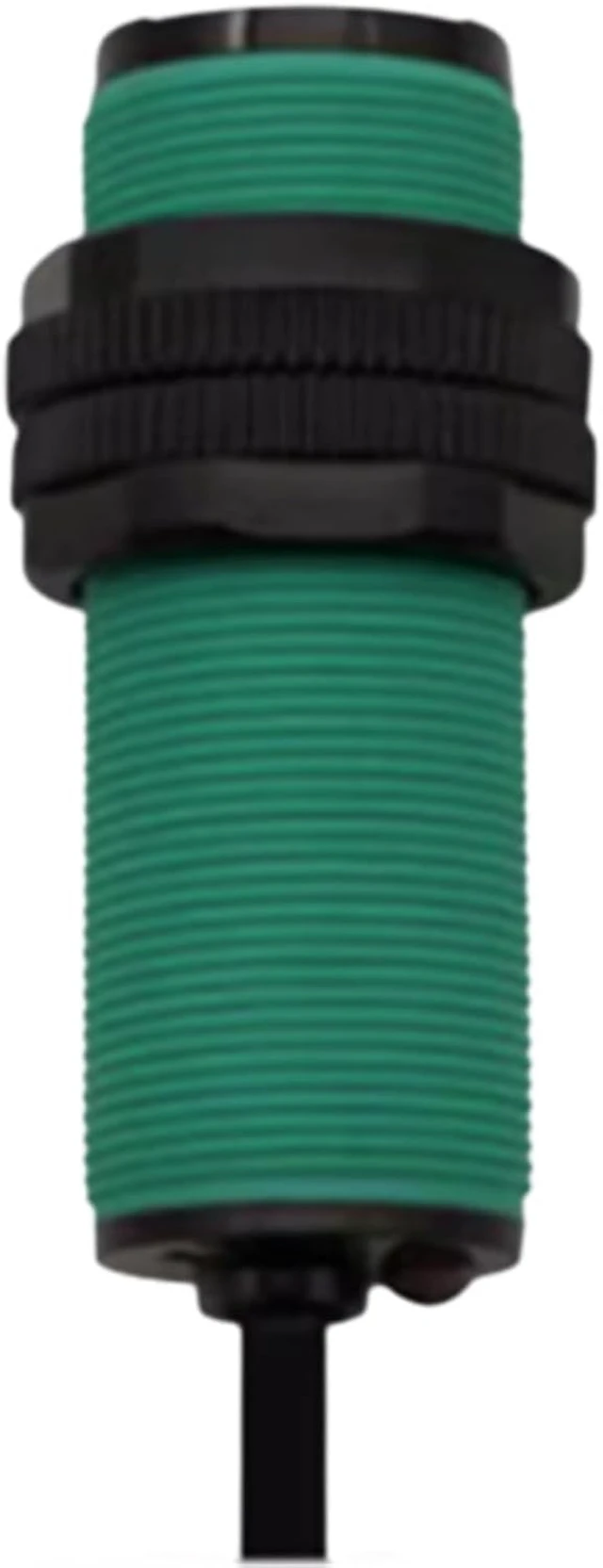

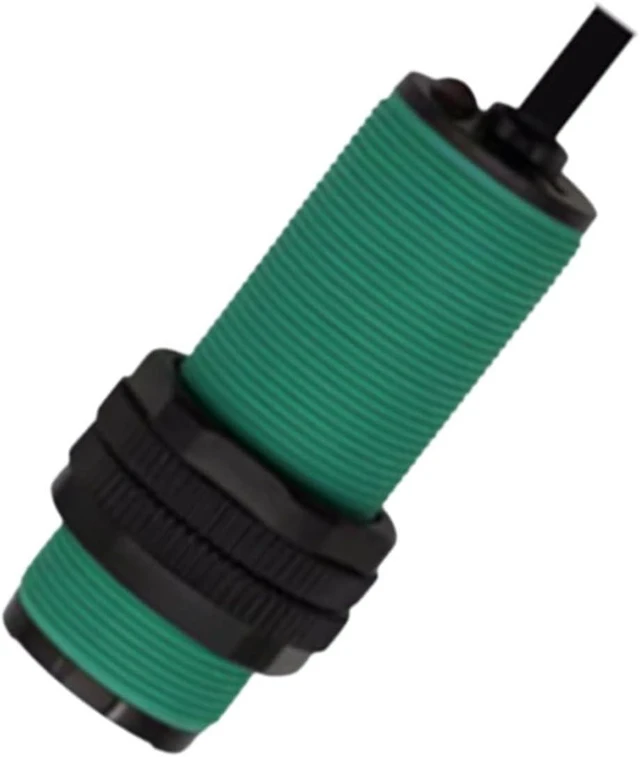

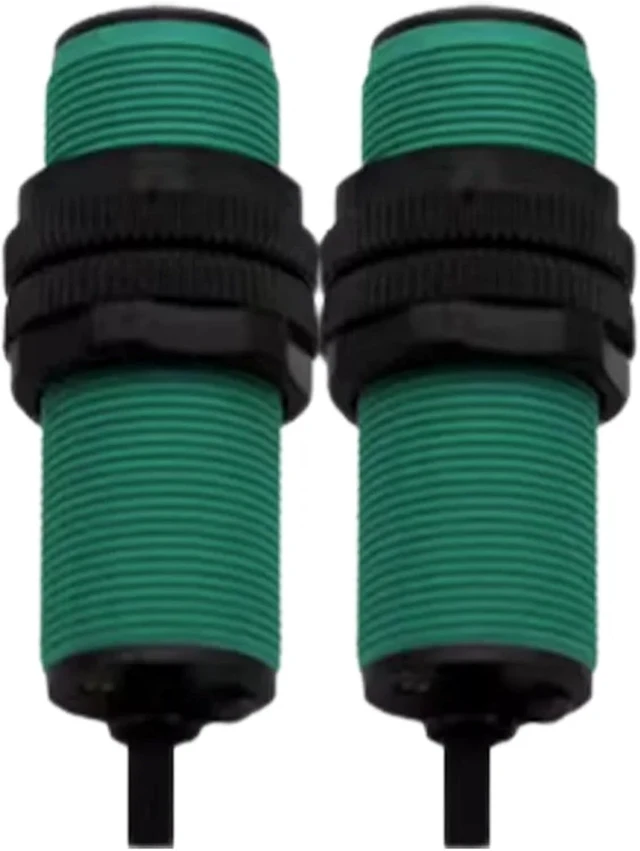

1pc E3F-DS10C4 Detection Distance 5M Response time:1ms Switch Sensor Diffuse-Reflective NPN PNP NO NC(NPN NO)

Switches
==========
Theory : Optical Sensor

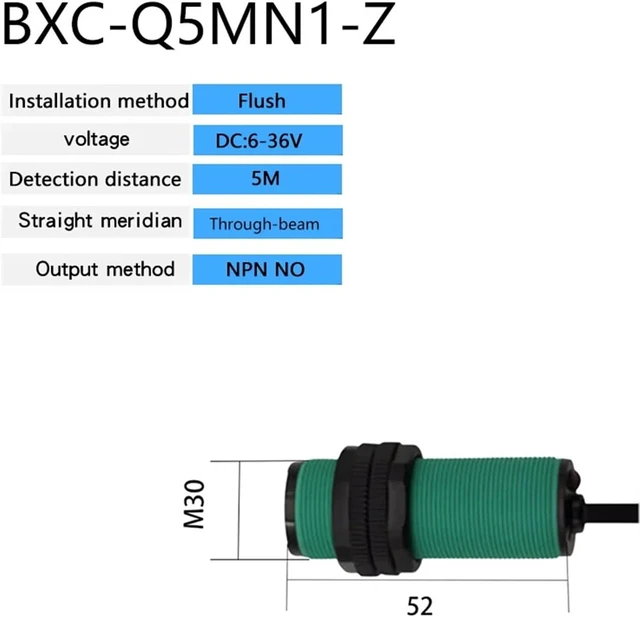

Model Number : BXC-Q5MNP-Z
Material : Polymer
Type : Optical-Electronics Sensor
Output : Switching Transducer
detection range : 5M
Standard detected object : Transparent/opaque objects
Detection range adjus` : regular
response time : 1ms
supply voltage : type DC12~24V (6~36V) pulsation (p-p) below 10%,AC type AC110~220V (90~250V) 50/60Hz
The influence of temperature : "Temperature range -30~+65C,+23C, within 15% detection distance of soil Temperature range -25~+60C,+23C, within ± 10% detection distance"
Protective structure : Protection structure IP66 (IEC specification)
material quality : (Brass nickel plated ABS shell) (detection surface (lens) PMMA)
Insulation impedance : Between the charging part and the shell of a DC500 megohmmeter with a distance of over 50m
The influence of voltage : Within 15% of the rated power supply voltage range, within 10% of the detection distance at the ratedpowersupply voltage value
Environmental temperature and humidity : "-30-65C during operation and -30-65C during storage (without freezing or condensation) 35~95% RH during action and 35~95% RH during save "
Consumption current : N. P-type below 20mA,Type A below 1.7mA
circuit protection : N. P.D type reverse connection protection, surge absorption, load short circuit protection,Type A Surge absorption
