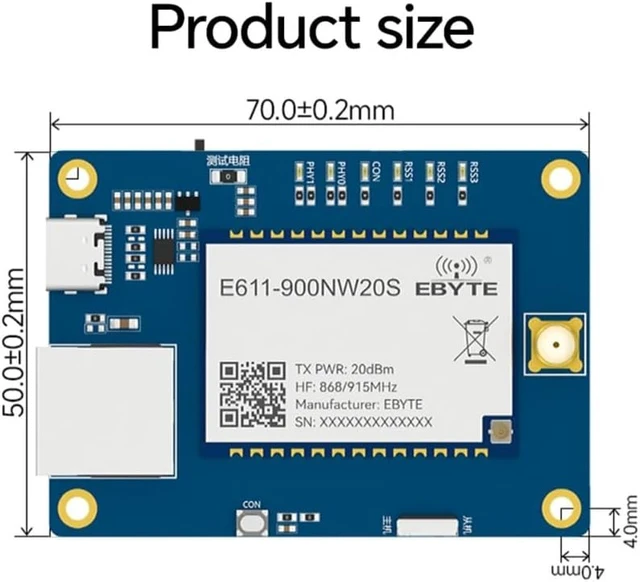

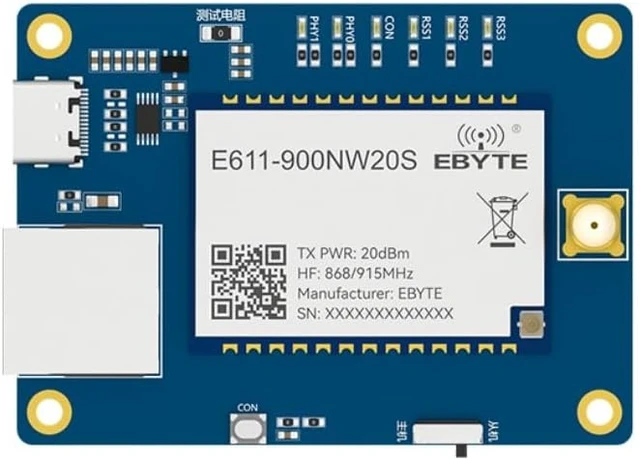

Test Board for 830-930M Wireless Data Image Transmission Module EWT611-900NW20S Rate16M RS485 Full Duplex Long Distance 1KM Star Networking
- E611-900NW20SThe module is a long-distance image transmission developed by Ebyte +A long-distance wireless module integrating data transmission.16MbpsThe transmission rate can achieve4road1080pVideo transmission, but also network port+The serial port performs transparent transmission at the same time, working at850MHz~930MHzFrequency band, maximum RF transmit power is 20dBm.

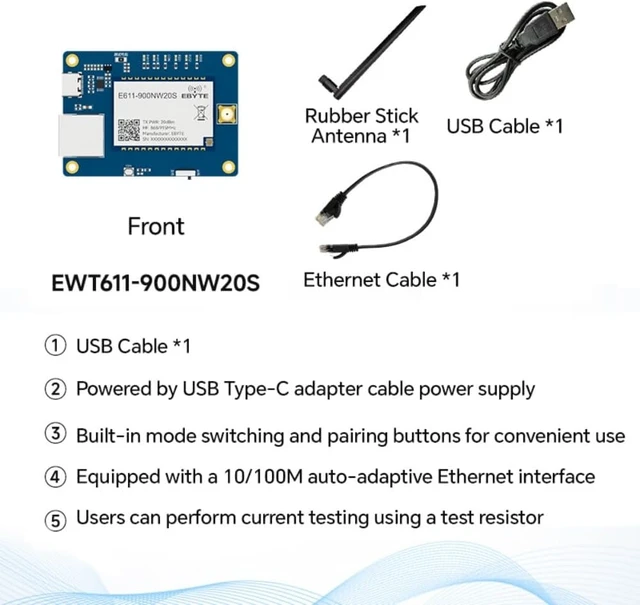

- Type-C USB Interface, which can be used as the power supply interface of the development board, can burn firmware to the chip, and can also be used as a communication interface through the on board USB change UART The bridge communicates with the chip.
- Network port 10/100MEthernet interface(RJ45).Mode switch button Master-slave mode switching button.
- Test resistance Users can use this resistor to test the current.0resistance.Antenna interface SMA-K.
- Pairing button Master-slave pairing button, the user needs to press the host button at the same timeRSS1~3andCONThe light is on, indicating that pairing is succ
+
+
Overview
Reviews
Any questions? Ask CelesteSM will help you find out quickly.
Try me now

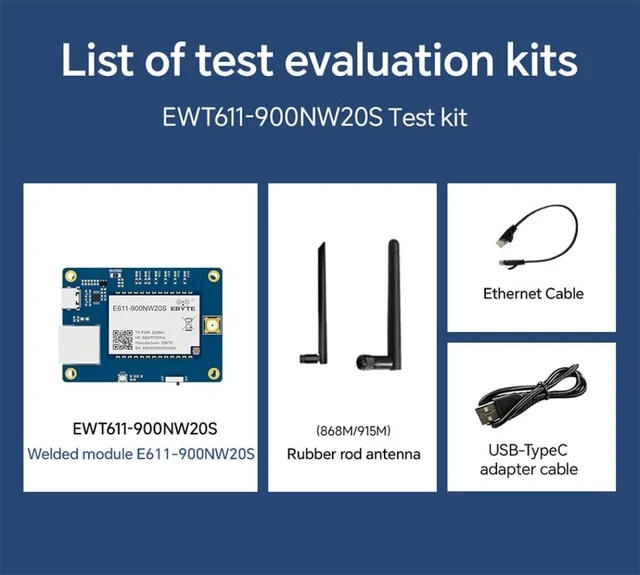

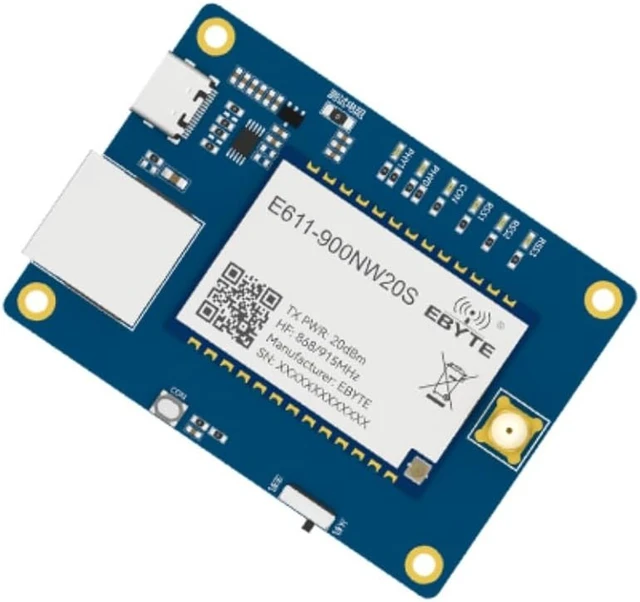

EWT611-900NW20S is an entry-level development board that needs to be used with Ebyte's self-developed long-distance image transmission + data transmission integrated long-distance wireless module E611-900NW20S. This development board has complete functions, a transmission rate of 16Mbps, can realize 4-channel 1080p video transmission, and can also achieve simultaneous transparent transmission of network port + serial port, working in the 850MHz~930MHz frequency band, and the maximum RF transmission power is 20dBm.
