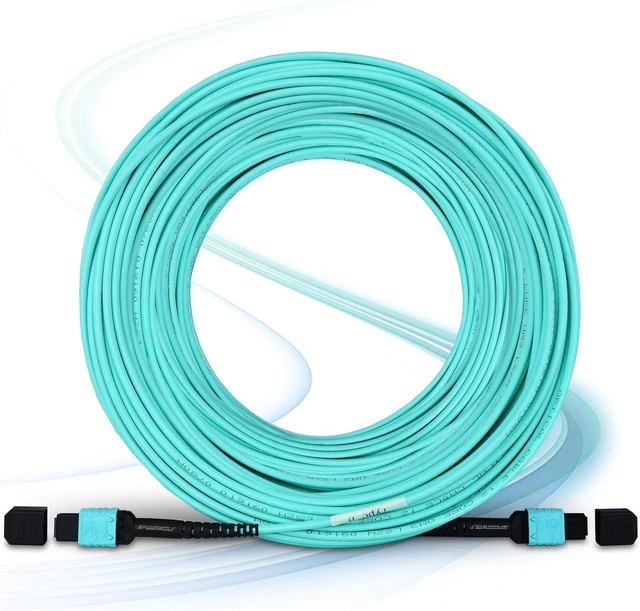

SPEEDWOLF 15M / 50FT 12 Fibers Type B OM3 MPO - MPO Patch Cord Cable Female/Female LSZH FTTH MPO to MPO Optical Fiber PatchCord Jumper for 10G QSFP+ and 100G QSFP28 Transceivers Compatible MTP Aqua

SPEEDWOLF manufactures data center grade fiber optic MPO patch cords. The high density 12 fiber cable is OM3 50/125um with a 3.0mm diameter. The jacket material is LSZH and is colored aqua. The MPO-MPO fiber optical cord is assembled with MPO female connectors. The MPO connector uses a spring loaded sliding mechanism allowing the fiber patch cord to latch onto adapters providing a secure and reliable connection for network cabling in a data center environment. Each assembly is 100% factory tested to meet Bellcore IEC 61754-7, TIA / EIA 604 -5, Telcordia GR 326-CORE ,IEEE802BM and TIA/EIA standard with maximum insertion loss.SPEEDWOLF is a reliable fiber optic product manufacturer and supplier, We manufacture fiber optic and fiber optic equipment for enterprise data centers, MPO trunk backbone, colocation facilities, server farms, cloud storage networks, telecommunication rooms.

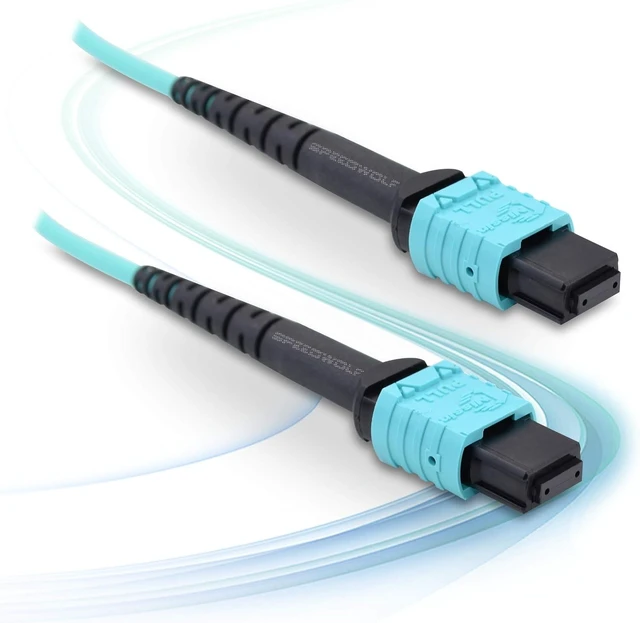

SPEEDWOLF MPO fiber patch connectors utilize precision molded MT ferrules, with metal guide pins and precise housing dimensions to ensure fiber alignment when mating. The MTP fiber cable can be mass terminated in combinations of 4, 8, 12, 24 and 48 fiber ribbon cables. The MPO fiber cable connector offers up to 12 times the density of standard connectors, providing significant space and cost savings.

Interface Type:MPO/UPC (female) to MPO/UPC (female).
Fiber Type:MMF(50/125um), OM3.
Cable Length: 15M/50FT;Fiber Core:12 cores.
Shell Material: LSZH;Polarity:Type B.
Insertion loss : <0.5dB;Return loss : 25dB.
Insert- pull test : 500times <0.5 dB.
Operation temperature : -40+80.
Weight: 119g/0,26lb.
Package dimensions: 26x25x1cm/10x9,8x0,4in.
Package weight: 123g/0,27lb.

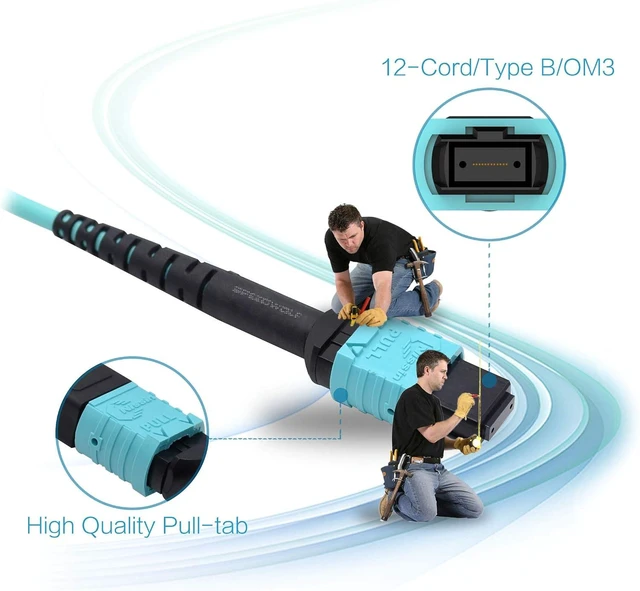

SPEEDWOLF MPO to MPO optical fiber patch cords allow high-density connections between network equipment in telecommunication rooms and data centers. They feature Push/Pull tab connectors that offer maximum accessibility in high density installations; The MTP/MPO connector is approximately the same size of a SC connector but since it can accommodate 12 fibers, it provides up to 12 times the density, thereby offering savings in circuit card and rack space. MPO series cables are manufactured using laser-optimized, 50/125, OM3 multimode cable, and support speeds up to 40GbE(QSFP+) and 100GbE(QSFP28).
Characteristic:

High performance with good Insertion Loss (IL) and Return (RL) parameters
Designed for low loss MM and SM applications.
High precision connectors and flexible boot.
Economical solution for massive fiber termination.
Suitable for MPO / MTP applications
Meets the requirements of the IEC 61754-7 standard; JIS C5982; TIA-604-5 (FOCIS5); Telcordia GR-1435-CORE, meets the EIA / TIA 568-C.3 structured cabling requirements.
Parallel fibers: OIF (Optical Internetworking Forum); Infiniband 10G, 40G and 100G of IEEE 802.3.
QSFP compliance.
LSZH type cables, RoHS compliance.
100% factory tested
The fiber system has a higher and higher demand on fiber optic connectors with the changes from single mode fiber to multimode fiber, from 10G to 40G, 100G. Ethernet transmission of 40G and 100G also becomes the developing trend in data center cabling system. Traditional connectors are more and More difficult to achieve Multi-Fiber and High-performance. According to the International standard, high density MPO/MTP connector has been a standard port in the Ethernet transmission of 40G and 100G.
The SPEEDWOLF MPO-MPO optical fiber patch cord is 12 times denser than standard connectors, saving space and wiring costs. MPO modularity in MPO cabling dramatically reduces the cost of installing, modifying and maintaining structured communication cabling for today's and tomorrow's data centers.

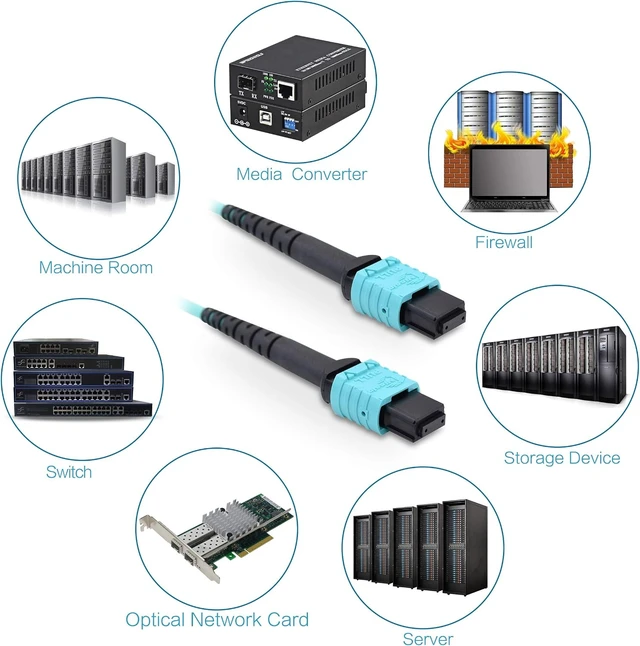

Application:

CATV DATA center
Optical access network
Wired in data centers
Arrangement of the trunk cables
Telecommunication networks
Interconnections of optical switches
High fiber density s
