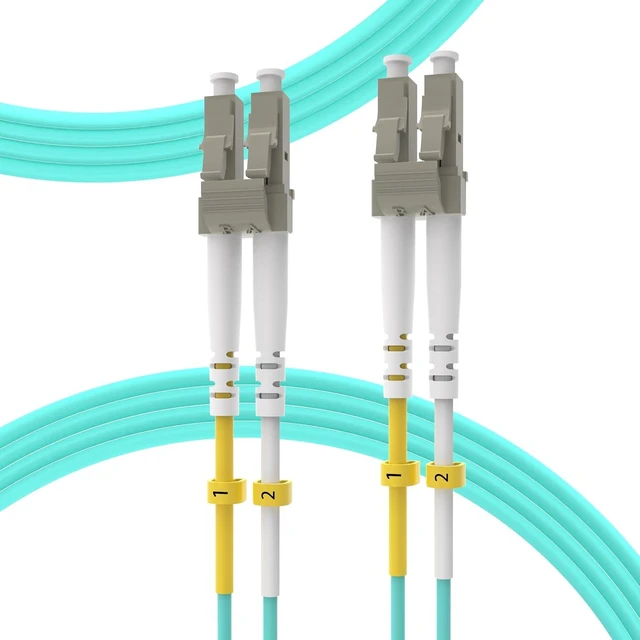

Main image of OM4 LC to LC Fiber Patch Cable 200m/656ft

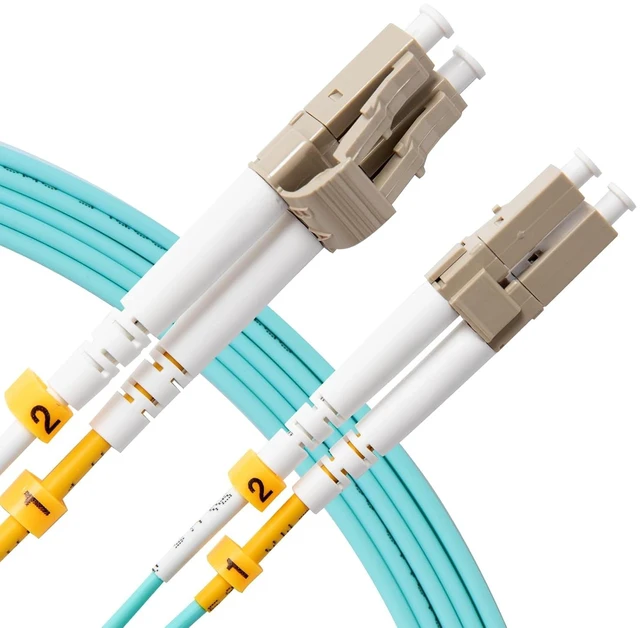

Alt view image 2 of 7 - OM4 LC to LC Fiber Patch Cable 200m/656ft

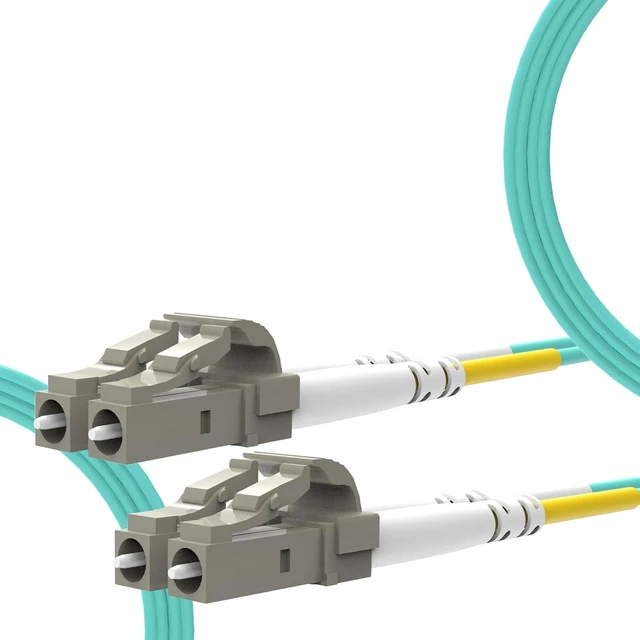

Alt view image 3 of 7 - OM4 LC to LC Fiber Patch Cable 200m/656ft

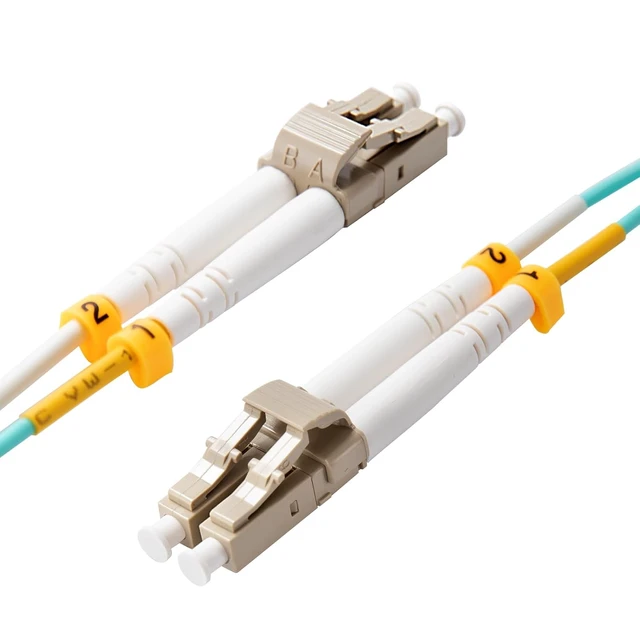

Alt view image 4 of 7 - OM4 LC to LC Fiber Patch Cable 200m/656ft

Alt view image 5 of 7 - OM4 LC to LC Fiber Patch Cable 200m/656ft

Alt view image 6 of 7 - OM4 LC to LC Fiber Patch Cable 200m/656ft

Alt view image 7 of 7 - OM4 LC to LC Fiber Patch Cable 200m/656ft

Shop All NShi Products | Visit XinjintongLimited Store

OM4 LC to LC Fiber Patch Cable 200m/656ft

Be the first to review this product...

Secure and flexible installation:This Fiber Jumper Cable provides secure installation while allowing individual fiber access.The embossed A/B position names on the duplex clip and jacket tag rings facilitate easy identification during installation and troubleshooting.It is designed with a bendable feature and a 7.5mm minimum bend radius.Ideal for SAN network cabinets that require multiple elbows in the cabinet,or high-density installations with cables stuffed into very small footprint areas
Compliant and backward compatible:Constructed with LSZH material in an aqua color,this fiber jumper ensures fire safety and low smoke emission.It is compliant with various networking standards,including Gigabit Ethernet 1000Base-LX,1000Base-SX,10GBase-S/LR4/LRM,Fiber Channel 100/200/400/1200-MX,and is also backward compatible with Fast Ethernet 10/100BASE SX or FX.It supports 40G BIDI SR,10G SR,QSFP+,SFP+ transceivers and 100GB optical network terminal connections
High-performance fiber optic cab

Overview

Reviews

Any questions? Ask Celeste^SM will help you find out quickly.

Try me now

Fiber Type LC to LC Polish Type UPC to UPC Fiber Count Duplex Cable Diameter 2.0 mm Wavelength 850nm and 1300nm Bandwidth 4700 MHz·km @850nm Attenuation at 850nm 3.0 dB/km Attenuation at 1300nm 1.0 dB/km Min. Bend Radius (Fiber Core) 7.5 mm Min. Bend Radius (Fiber Cable) 20D/10D (Dynamic/Static) Connector Gender Male-to-Male Customer Reviews 4.9 out of 5 stars 124.6 out of 5 stars 34.8 out of 5 stars 135.0 out of 5 stars 14.8 out of 5 stars13
Cable Length: 1m/3ft 3m/10ft 5m/17ft 1m/3ft 1m/3ft
Data Rate: 10G/40G 10G/40G/100GB 1G/10G/40GB 1G/10GB 1G/10GB
Jacket: LSZH LSZH LSZH LSZH LSZH Insertion Loss: 0.3 (dB) 0.3 (dB) 0.3 dB 0.3 dB < 0.3 dB
Return Loss: 30 (dB) 30 (dB) 50dB 50dB 50dB Min.
Bend Radius (Fiber Core): 7.5 mm 7.5 mm 16mm 16mm 16mm Min.
Bend Radius (Fiber Cable): 20D/10D (Dynamic/Static) 20D/10D (Dynamic/Static) 20D/10D (Dynamic/Static) 20D/10D (Dynamic/Static) 20D/10D (Dynamic/Static)
Fiber Grade: Bend Insensitive Bend Insensitive G652D G652D G652D
Cable Diameter: 2.0 mm 2.0 mm 2.0 mm 2.0 mm 2.0 mm
Application: Indoor Indoor Indoor Indoor Indoor OM4 Multimode Duplex Fiber Optic Cable
