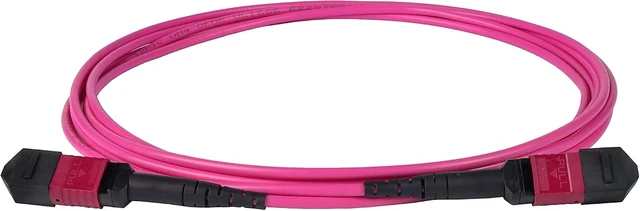

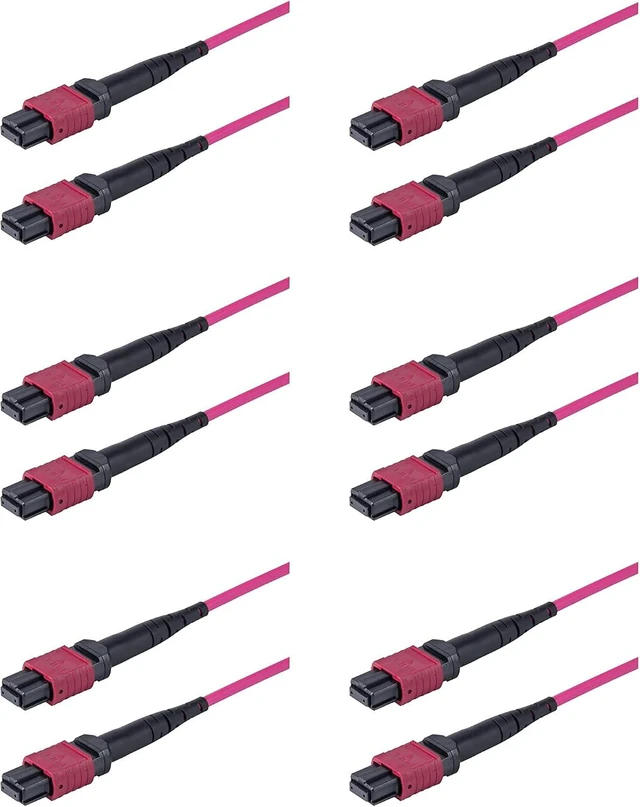

SpeedyFiberTX - 6-Pack 2 Feet 12 Fiber OM4 40Gb 100Gb Low Loss MPO Fiber Trunk Cable, Type-B, Corning ClearCurve Fiber, Fire Retardant Plenum OFNP Cable Jacket

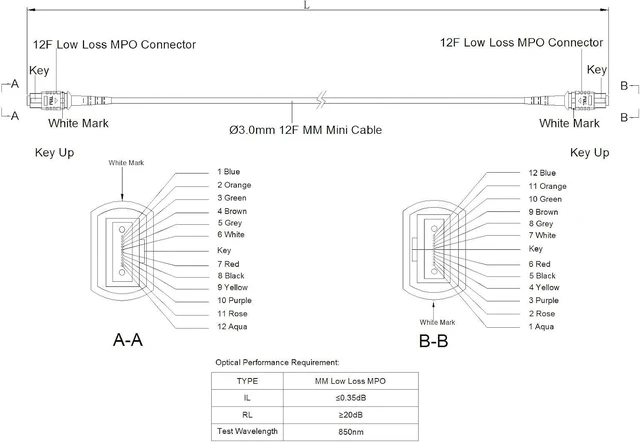

- Durable Plug and Play Low Loss non-pinned MPO/female Connectors | Type-B Polarity (Key Up to Key Up)
- Cable made with industry-leading Corning ClearCurve Laser-optimized Multimode OM4 50/125 Fiber and UL Certified Fire Retardant Plenum OFNP Magenta Cable Jacket | UL Certified Fire Retardant Plenum Cable Compound Materials
- High Quality 12-core Fibers | 0.20dB Typical Insertion Loss | 0.35dB Max Insertion Loss | 7.5mm Minimum Bend Radius
- Optimized for 40G QSFP+ SR4/CSR4, 100G QSFP28 SR4 Transceiver Direct Connection| MTP Compatible Cabling System | Patch Panel Cabinet, FTTH, EPON Application | High-density Data Centers
- High Quality Guarantee: 100% Inspection and Test on Insertion Loss and Return Loss
+
+
Overview
Reviews
Any questions? Ask CelesteSM will help you find out quickly.
Try me now
SpeedyFiberTX 12 Fiber Low Loss Non-Pinned MPO/Female Fiber Patch Cable, Type-B Polarity, Multimode OM4 Corning ClearCurve Fiber
Specifications
Insertion Loss 0.35 (dB)
Return Loss 20 (dB)
Operating Temperature -10°C to +70°C
Operating Wavelength 850nm and 1300nm
10G Ethernet Distance 400m at 850nm
40/100G Ethernet Distance 150m at 850nm
Compliance UL, CE, IEC, TIA, RoHS
Features and Benefits
Lightweight 3.0mm UL Certified Fire Retardant Plenum OFNP Cable Jacket
Pre-terminated with durable Low Loss MPO connectors and ready for deployment
Snap-in strain-relief clips provide easier cable management
Every termination is tested to ensure the quality in network performance
Our proprietary manufacturing processes and advanced technology result in quality guarantee
