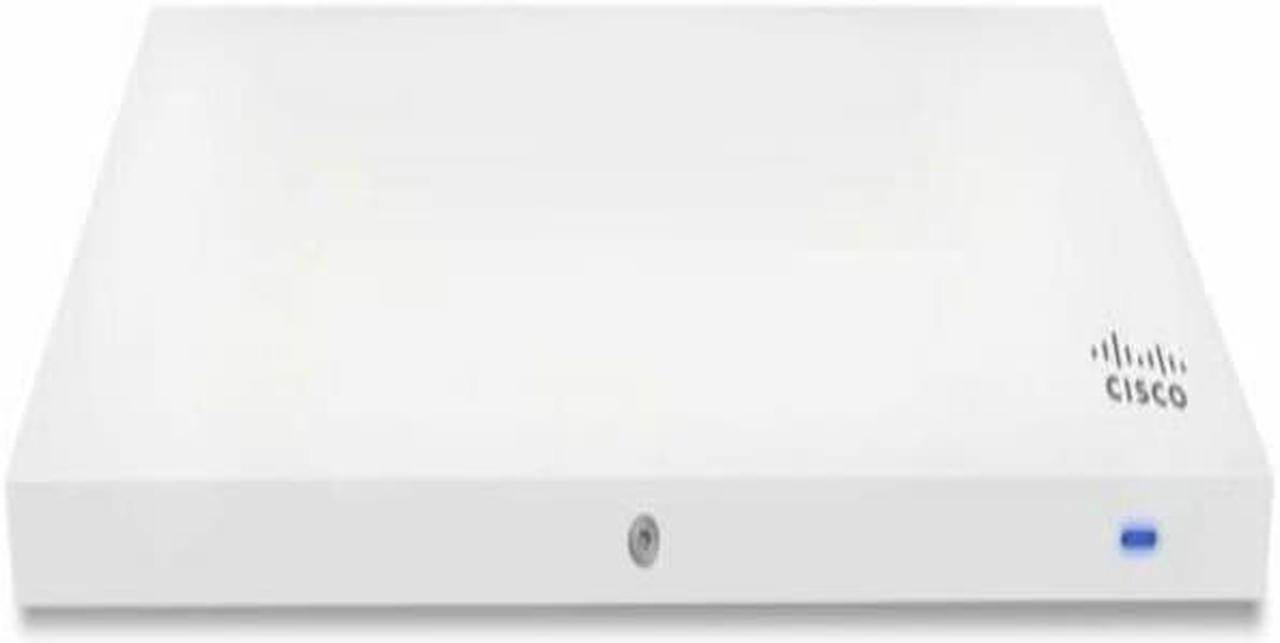

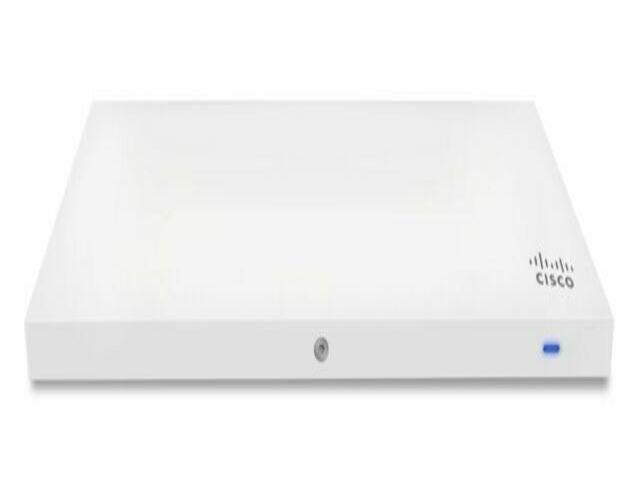

MR33-HW

Radios
2.4 GHz 802.11 b/g/n client access radio
5 GHz 802.11 a/n/ac client access radio
2.4 GHz & 5 GHz WIDS/WIPS, spectrum analysis, and location analytics radio
2.4 GHz Bluetooth Low Energy (BLE) radio with beacon and BLE scanning support
Concurrent operations of all four radios
Supported frequency bands (country-specific restrictions apply):
2.412 - 2.484 GHz
5.150 - 5.250 GHz (UNII-1)
5.250 - 5.350 GHZ (UNII-2)
5.470 - 5.600, 5.660 - 5.725 GHz (UNII-2e)
5.725 - 5.825 GHz (UNII-3)
802.11 ac and 802.11 n Capabilities
2 x 2 multiple input, multiple output (MIMO) with two spatial streams
SU-MIMO and MU-MIMO support
Maximal ratio combining (MRC) & Beamforming
20 and 40 MHz channels ( 802.11 n), 20, 40, and 80 MHz channels ( 802.11 ac)
Up to 256 QAM on both 2.4 GHz and 5 GHz bands
Packet aggregation
Power
Power over Ethernet: 37 - 57 V ( 802.3 af compatible)
Alternative 12 V DC input
Power consumption: 15W max ( 802.3 af)
Power over Ethernet injector and DC adapter sold separately
Mounting
All standard mounting hardware included
Desktop, ceiling, and wall mount capable
Ceiling tile rail (9/16, 15/16 or 1 ½ flush or recessed rails), assorted cable junction boxes
Bubble level on mounting cradle for accurate horizontal wall mounting
Physical Security
Two security screw options (included)
Kensington lock hard point
Concealed mount plate with anti-tamper cable bay
Environment
Operating temperature: 32 °F to 104 °F (0 °C to 40 °C)
Humidity: 5 to 95% non-condensing
Physical Dimensions
8.5 x 4.3 x 1.3 (215 mm x 110 mm x 32 mm), not including deskmount feet or mount
plate
Weight: 13.2 oz ( 376.5 g)
Antenna
Integrated omni-directional antennas ( 3.8 dBi gain at 2.4 GHz, 3.9 dBi gain at 5 GHz)
Interfaces
1x 10/100/1000 BASE-T Ethernet (RJ45)
1x DC power connector ( 5.5 mm x 2.5 mm, center positive)
Security
Integrated layer 7 firewall with mobile device policy management
Real-time WIDS/WIPS with alerting and automatic rogue AP containment with Air Marshal
Flexible guest access with device isolation
VLAN tagging ( 802.1Q ) and tunneling with IPSec VPN
PCI compliance reporting
WEP, WPA, WPA2-PSK, WPA2-Enterprise with 802.1X
EAP-TLS, EAP-TTLS, EAP-MSCHA
Pv2, EAP-SIM
TKIP and AES encryption
Enterprise Mobility Management (EMM) & Mobile Device Management (MDM) integration
Quality of Service
Advanced Power Save (U-APSD)
WMM Access Categories with DSCP and 802.1 p support
Layer 7 application traffic identification and shaping
Mobility
PMK, OKC, and 802.11 r for fast Layer 2 roaming
Distributed or centralized layer 3 roaming
LED Indicators
2 Ethernet status
1 power/booting/firmware upgrade status
Warranty
Lifetime hardware warranty with advanced replacement included
Compliance
RoHS
EN 60601-1-2 EMC requirements for the Medical Directive 93/42/EEC
Ordering Information
MR33-HW: MR33 Cloud Managed 802.11 ac AP
MA-PWR-30W-XX: AC Adapter for MR Series (XX = US, EU, UK or AU)
MA-INJ-4-XX: 802.3 at Power over Ethernet Injector (XX = US, EU, UK or AU)
