$90.99
Sold by Zhengtuo Technology Co., Limited
Shipped by Zhengtuo Technology Co., Limited
Meet Your Seller

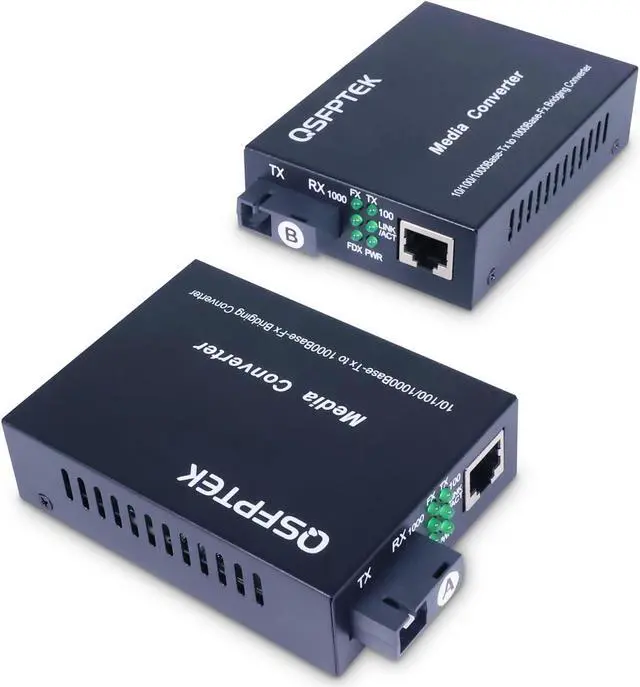

QSFPTEK A Pair 1.25G/s Bidi Fiber Media Converter, Gigabit Media Converter, 10/100/1000Base-Tx to 1000Base-FX Fiber Ethernet Coverter, Singlemode SC Bidi Transceiver TX1310nm/TX1550nm, 10Km
- Automatically : 10/100/1000Base-Tx to 1000Base-FX, adapts to 10 Mbit/s, 100 Mbit/s (Fast Ethernet) or 1000 Mbit/s (Gigabit) Speed And Extends Ethernet over Single Mode Single Fiber to up to 10 km. full Duplex or half Duplex, Supports MDI/MDIX auto-crossover, Complies with IEEE 802.3/802.3u/802.3z/802.3ab.
- Plug & Play: Simply plug in fiber optical port and UTP RJ-45 port, and it will work immediately. Status LED's for TX, FX LINK/ACT, POWER, FDX to easily monitor network status.Supports working temperature range from 0°C to 60°C.

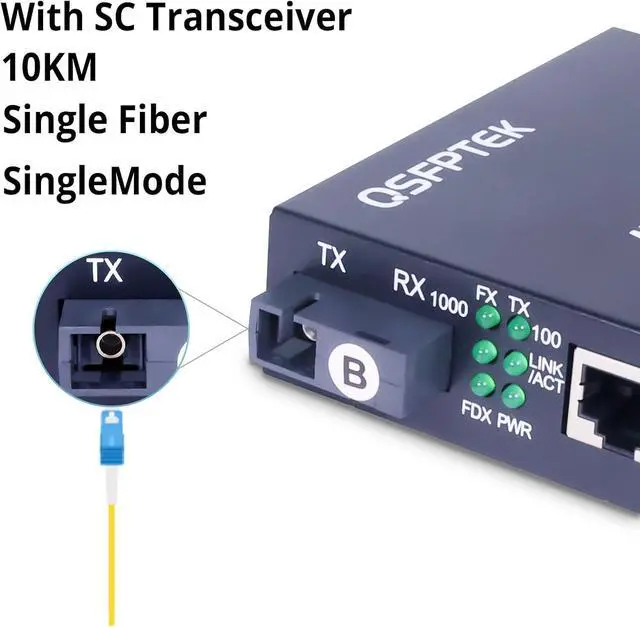

- Fiber Optical Port: 1.25Gbps 1310nm/1550nm wavelength SFP port, connecting the BiDi transceivers up to 10km
- Fiber Type: SMF, Cable Type: UTP/STP Cat.5e for 100 meters.
- Packing List: 2pcs Gigabit Single-mode ethernet media converters; 2pcs AC/DC Power Supply; 1 x Users Manual. Support wide power supply voltage (100V-240V).
+
+
Overview
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now

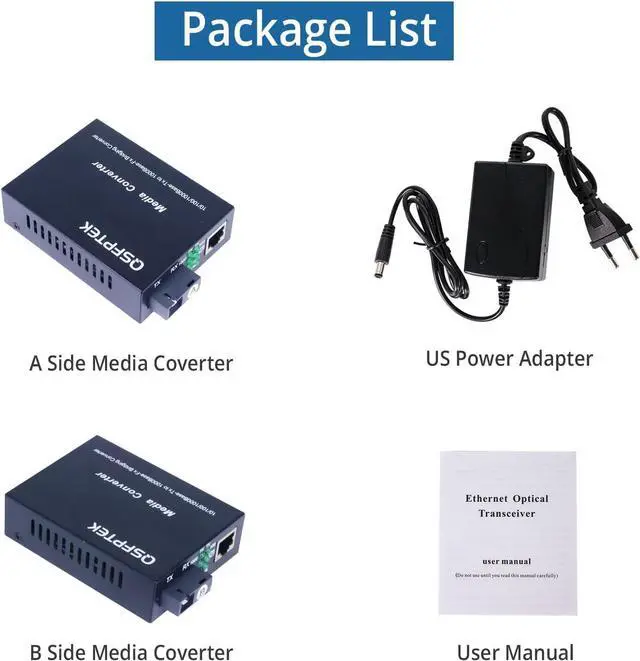

Product Include
2xSingle-mode SC Gigabit Ethernet Fiber Media Converter
2xDC Power Adapter Output voltage:5V DC/1A
1xProduct Manual,Multi-Language Quick Installation Guide

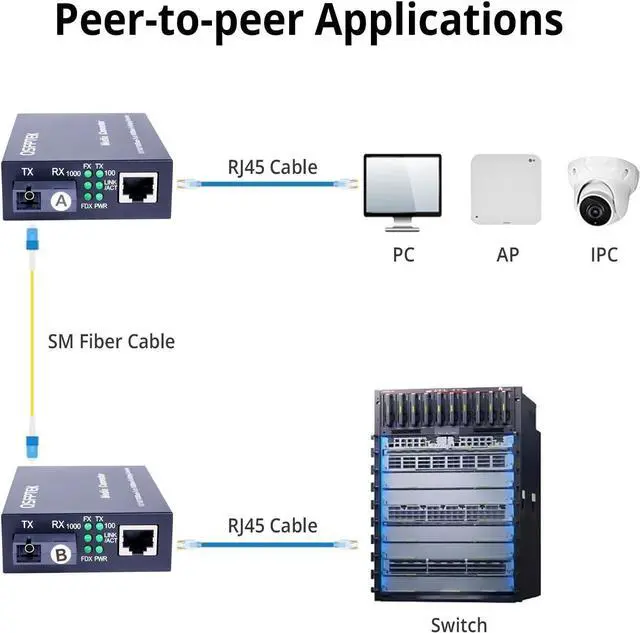

Wide Applications
1.Extend or bridge networks using fiber cable
2.Provide connectivity to users in an isolated area of a large complex or in a separate building
3.Ideal for secure connections required by government or corporations where EMI is not acceptable

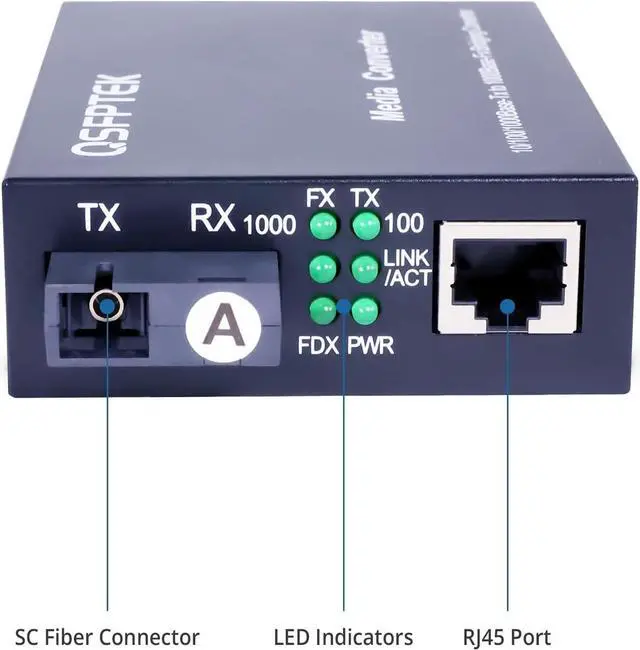

LED Indicators
1.FP:Light on when fiber speed is 1000Mbps,else light off
2.TP:Light on when TP speed is 1000Mbps, else light off
3.Link/ACT: Left side is indicate for fiber port link/act and right side for TP, light flashing when data transmitting and receiving
4.FDX: Light on when TP full-duplex mode is active, light off when TP half-duplex mode is active
5. PWR: Light on when DC power on,else light off.
Feature Introduction
1.Optical Port Data Rate:1.25Gbps,10/100/1000Base-Tx to 1000Base-LX SFP Fiber Gigabit Media Converter
2.Interface: SC Port+RJ45 Port, RJ45 Port Data Rate: 10/100/1000M auto-negotiation
3.Fiber Type:Single-mode, Fiber Connector: Single SC Fiber, Wavelength:1310nm, Reach:10km, included power supply. Weight:0.30kg
