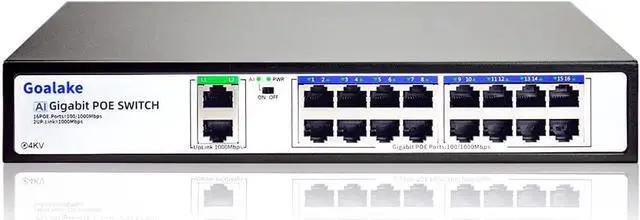

Goalake 16 Port PoE+ Switch Network Unmanaged, 16 * 1000Mbps POE+ Port with 2 Gigabit Uplinks, 200W Built-in [email protected]/at, VLAN Mode, 4kV Lightning Protection, AI Detection, Metal/Desktop

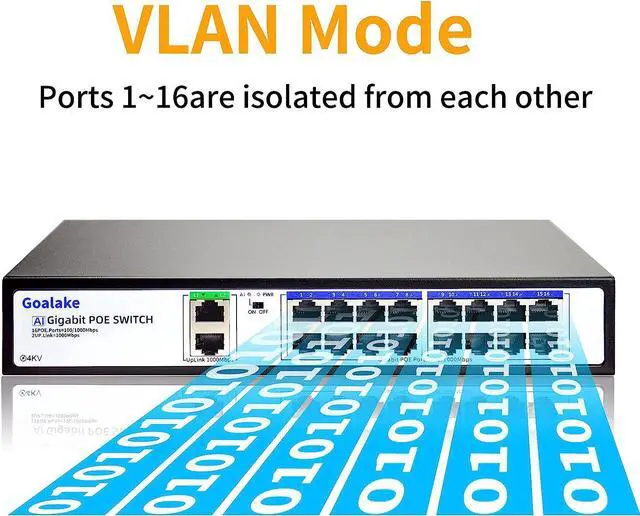

VLAN mode VLAN mode (Turn on the AI switch) support isolate 16 PoE+ port from each other. It is easy for this 16 port PoE switch to manage and maintain, Prevent broadcast storms, Prevent data confusion, Wireless networking application data is more stable.

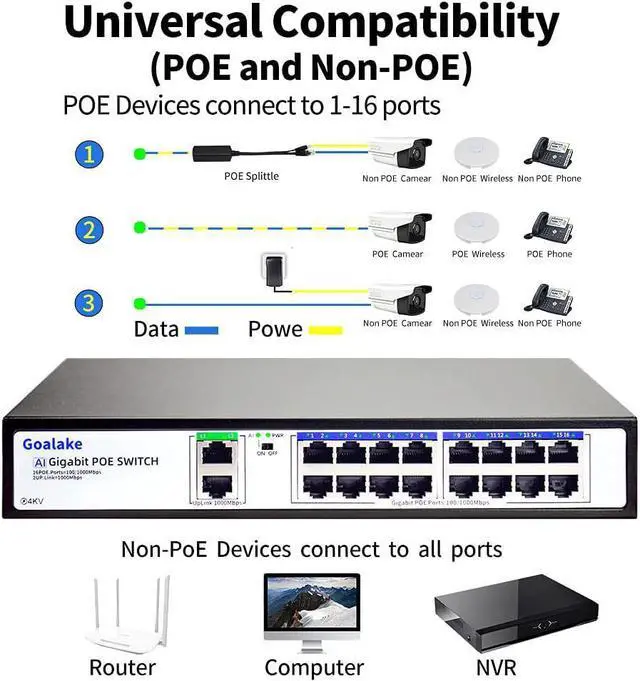

Active poe switch with 802.3 af/at compliantGoalake poe switches support poe devices and non-poe devices, But when connecting passive poe device or non-poe device, the switch can only transmit data and cannot power your device, so the connected device needs to be separately powered. Or you can use it with active poe splitter.

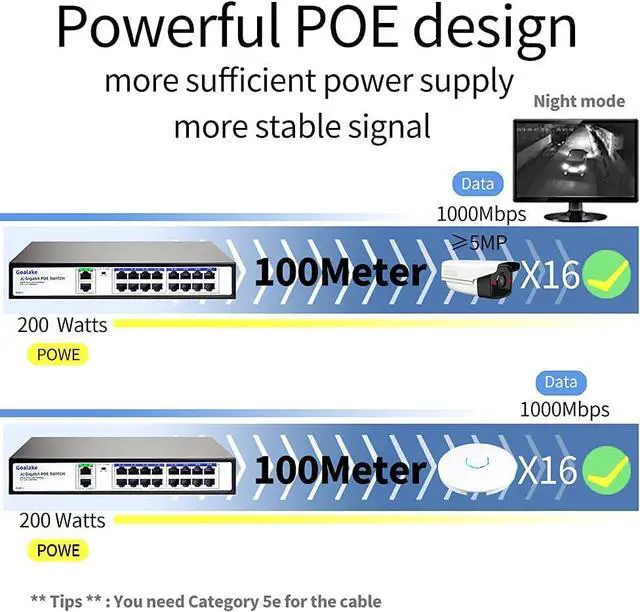

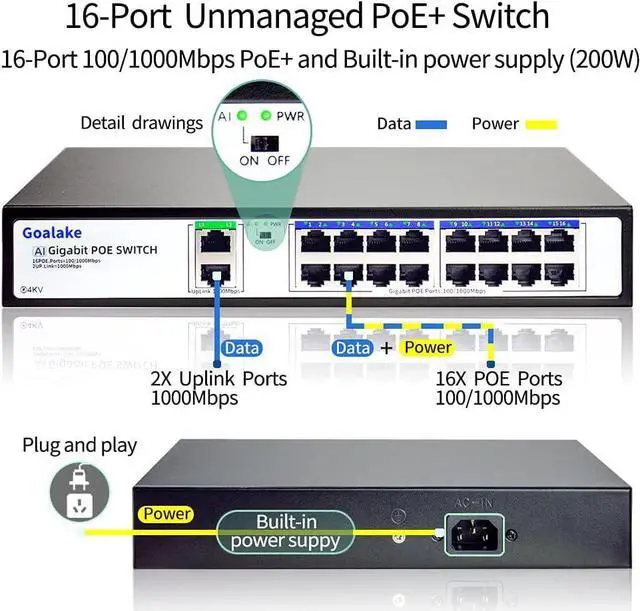

16 gigabit poe switch@200W PoE switch with 16 × 1000M PoE ports + 2 × 1000M Uplink ports, 16 × PoE ports providing up to 30W per port, total PoE budget 200W. 2 gigabit ethernet Uplink Port for connecting NVR and Internet, etc..

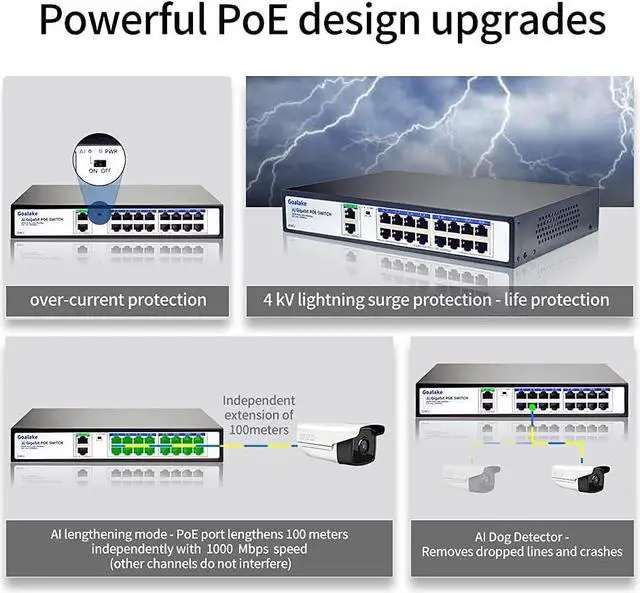

4KV Lightning ProtectionGoalake PoE switch have professional lightning protection design-up 4KV port and power supply thunder prevents, with two levels of protection design respectively, effectively restrain the power of lightning from cable, which equivalent to give the entire network monitoring system with a security fence.
AI Watchdog function of poe portTurn on the AI switch, When the data or electrical transmission between the poe port and the terminal device is abnormal, the corresponding poe port of the device will automatically detect the problem and restart the connection.
AI PD DetectionThe poe port will intelligently judge whether the device connected to the port needs power supply. If it is a non-poe device that does not need power supply, the switch will not supply power to these devices and will not damage the device.
Built-in power supplyThe power supply is located in the poe switch body and integrated with the switch. It is simple and light. After connecting to our AC Power Cable, the switch can transmit power to the equipment connected to the switch.
