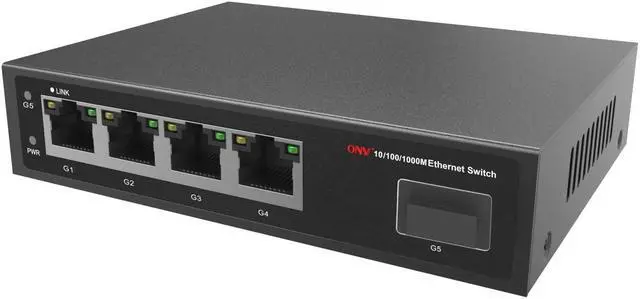

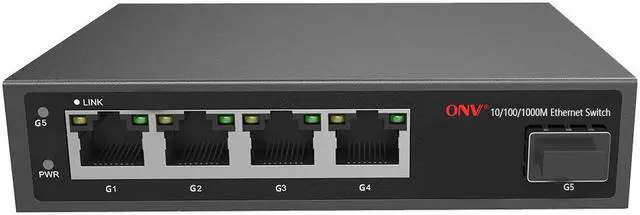

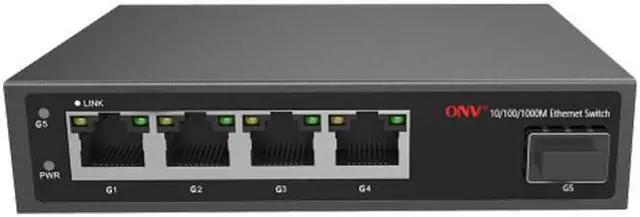

VisiPower Gigabit multi-mode dual fiber 4*1000M RJ45 PORT+ 1*1.25G SFP fiber port media converter LC interface Transmission Distance 0-500m Capacity 10Gbps

OVERVIEW

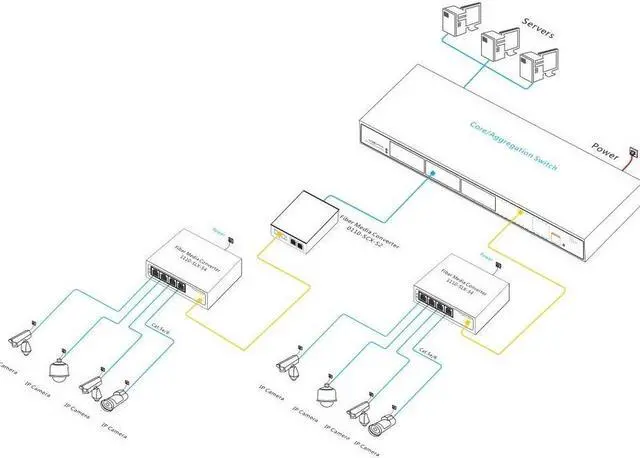

The ONV1110-MLX-S4 is a gigabit fiber media converter independently developed by ONV. It has 4*10/100/1000Base-T RJ45 ports and 1*1000M uplink SC/LC fiber port. User can select different optical modules, such as multi-mode dual fiber, single-mode dual fiber, and single-mode single fiber. The media converter adopts the enterprise-class Taiwan Realtek company's carrier-grade chip solution, which has stable performance, good quality and high cost performance. It is suitable for optical fiber access application scenarios such as security monitoring, wireless coverage, intelligent transportation, and safe cities to form a cost-effective and stable communication network.

Unmanaged model, plug and play, no configuration, easy to use.



FEATURE



Gigabit photoelectric Ethernet conversion transmission

Support non-blocking wire-speed forwarding.

Support full-duplex based on IEEE 802.3 x and half-duplex based on Backpressure.

Support gigabit RJ45 port and gigabit fiber port combination, which enables users to flexibly build networking to meet the needs of various scenarios.



Easy to use and simple to maintain

Support full-duplex/half-duplex working mode with auto-negotiation function.

Automatic identification of twisted pair MDI/MDI-X cross lines and parallel lines.

LED working status indication for network diagnosis and fault checking, reducing maintenance workload.

Compatible with IEEE 802.3 ab 1000Base-T, IEEE 802.3 z 1000Base-X network protocol, gigabit R45 port rate auto-negotiation.

Plug and play, no configuration required, centralized power supply and centralized connection management through 2U-14 slot rack.
