Outdoor IP67 Waterproof Gigabit PoE Passthrough Switch, 1 PoE in 2 PoE Out Extender, IEEE802.3af/at/bt PoE Powered 90W, 10/100/1000Mbps Ethernet, Wall Mount Plug and Play

Gigabit PoE PassthroughInclude 1 PoE In 2 PoE Out Gigabit Ports, 10/100/1000Mbps rate. Powered by PoE network, no AC power supply required, Max PoE Input IEEE 802.3 af/at/bt 90W.

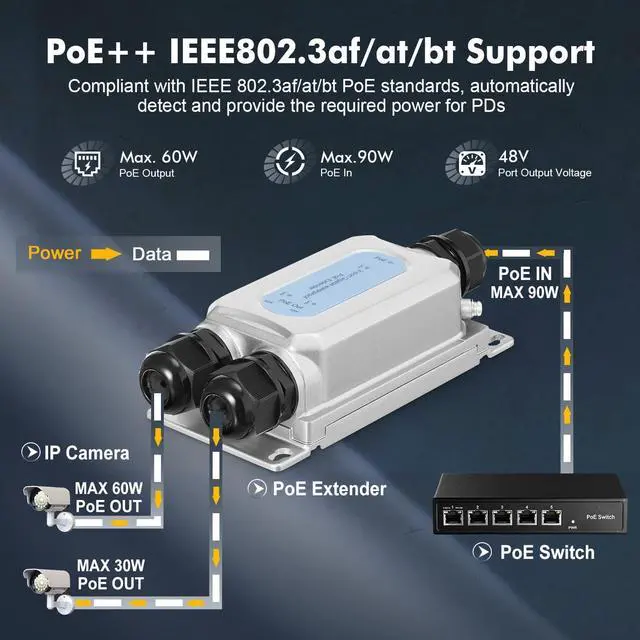

IEEE 802.3 af/at/bt Support standard PoE, Input Max 90W(IEEE 802.3 bt), Port 1 Output Max 60W(IEEE 802.3 bt), Port 2 Output 30W(IEEE 802.3 at). PoE Voltage 44-57 Vdc.

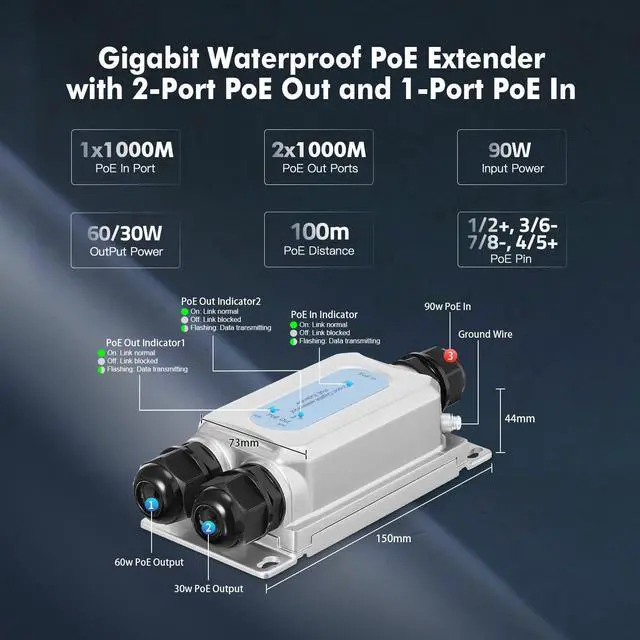

PoE pin:
Input: 1/2 (+), 3/6 (-), 4/5(+), 7/8(-); Output Port 1: 1 /2 (+), 3/6 (-), 4/5(+), 7/8(-); Output Port 2: 1 /2 (+), 3/6 (-)

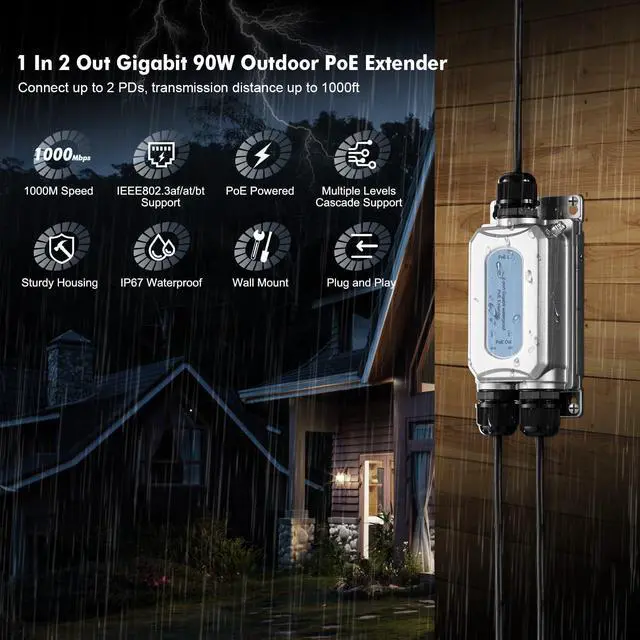

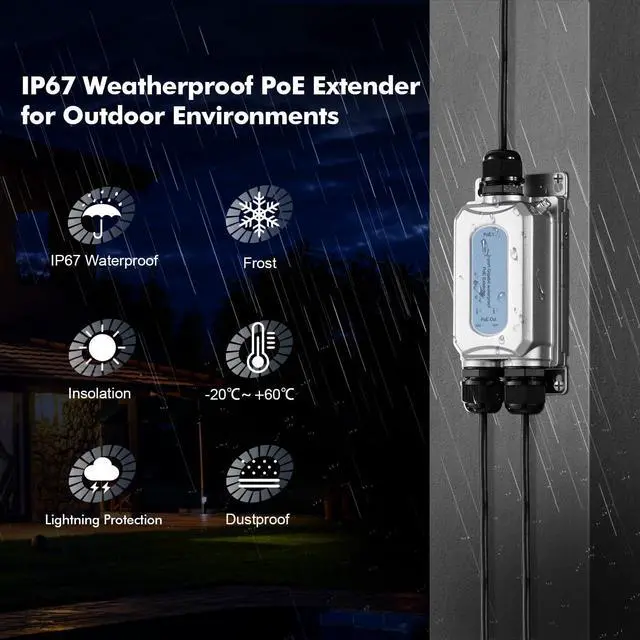

IP67 Outdoor weatherproof Industrial grade ruggedized metal shell, cable interface all protected in the shell, with waterproof cap, with better waterproof, dustproof, snowproof effect, more suitable for outdoor use; also suitable for complex indoor environment, such as warehouses, computer rooms, garages, attics, etc. **Network cable through the waterproof cap and then make RJ45 connector**
Plug & Play Support power detection automatically detect devices, just plug in the ethernet cable, connect directly to the device, led display the port status, without configuration. *Please note not support 24V passive PoE*.

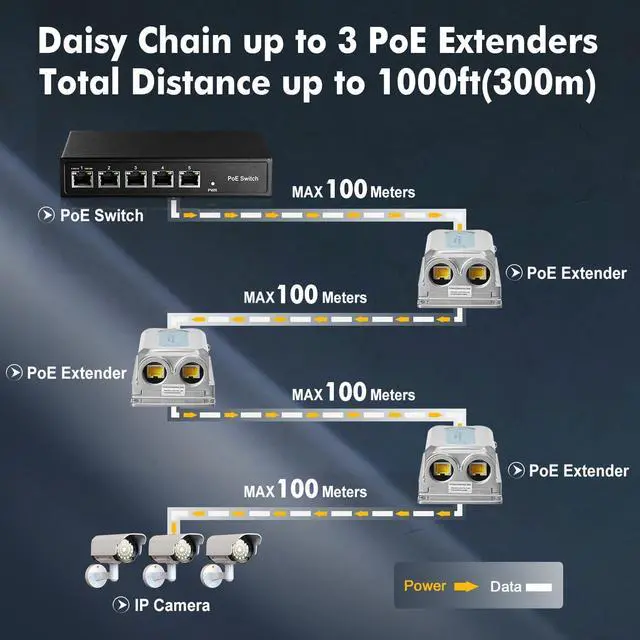

Easy Install Support wall mount, supports high power POE inputs and outputs, suitable for many positions. Support 3-level cascading, can connect poe AP, camera, phone and other POE devices.
