Tliffpaco Outdoor Gigabit PoE Extender, 5 Port PoE Repeater, 90W in 60W Out PoE Switch, Waterproof, Vlan, IEEE802.3af/at/bt Extend Additional 100m(328ft), 10/100/1000Mbps, Wall Mount Plug and Play

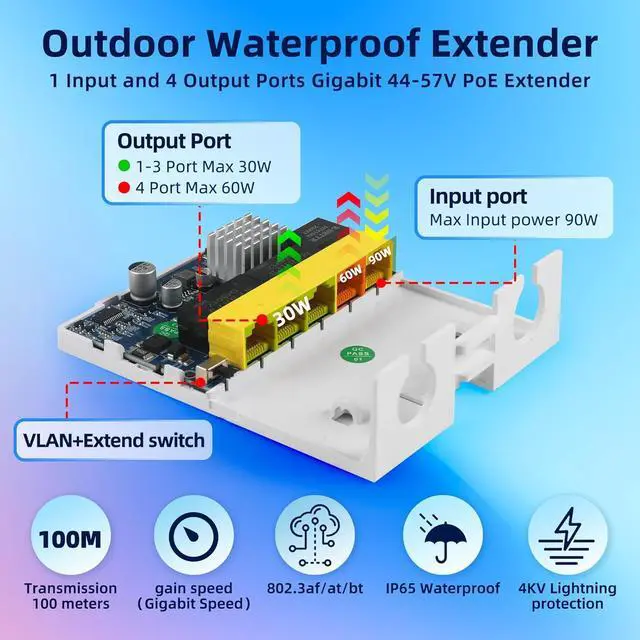

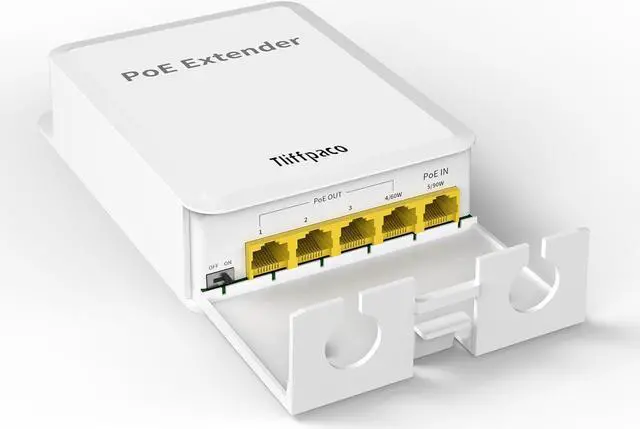

Outdoor PoE Extender 1 in 4 outThe Tliffpaco 5-port waterproof gigabit PoE extender, providing 1 gigabit (PoE/90w) power input port, 1 gigabit (PoE/60w) and 3 gigabit (PoE/30w) power output ports; The total maximum power of the extender is 90W.
Power Supply ApplicationThe PoE Extender does not have its own power supply and needs to be powered by an upstream PoE switch. It supports active PoE devices with input voltage of 44-57V and does not support passive PoE devices.

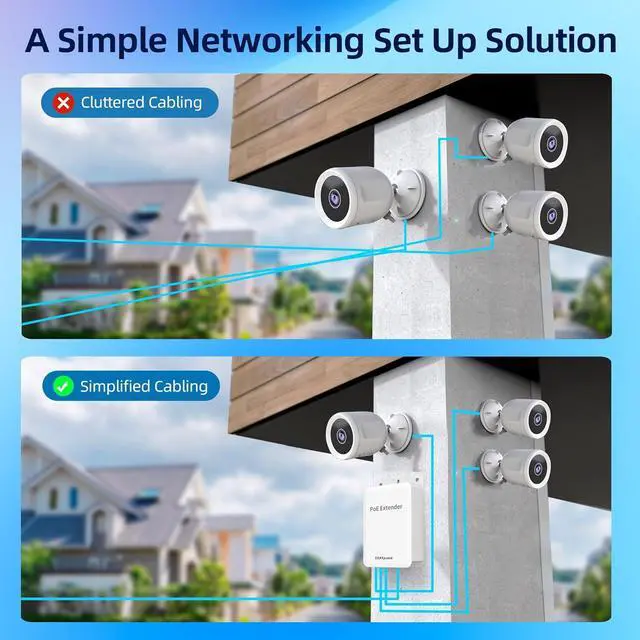

Plug and PlaySupports power auto-detection devices, providing the correct power for your PoE devices by automatically identifying. Simply plug in the Ethernet cable, connect it directly to the device, no need for configuration. Expand the range of cameras, AP, and other network-connected devices by powering over ethernet. One cable solves both transmission and power supply issues, making networking convenient.

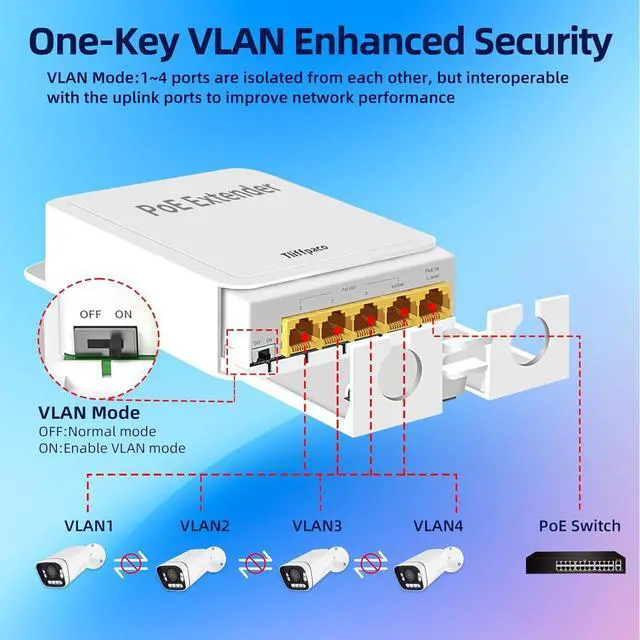

IEEE 802.3 af/at/btAll ports support this standard PoE, Input Max 90W IEEE 802.3 bt, Port 1-3 Output Max 30W IEEE 802.3 af/at, Port 4 Output Max 60W IEEE 802.3 bt. PoE Voltage 44-57 Vdc.
PoE pin: Input, 1/2 (+), 3/6 (-), 4/5(+), 7/8(-); Port 1-3
Output: 1/2 (+), 3/6 (-). Port 4
Output: 1/2 (+), 3/6 (-), 4/5(+), 7/8(-).

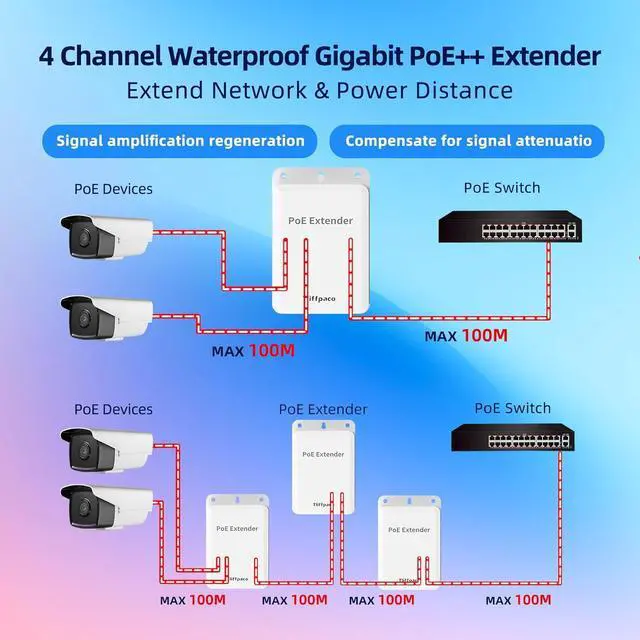

Application FeaturesThe PoE Extender has both PoE power input and PoE power supply functions. It can be used to extend the transmission distance when the distance exceeds 330ft (100 meters). It supports up to 3-level cascading and extends its power output to 60W to meet more high-power devices, ideal for lofts, warehouses, hotels, smart communities, and more.

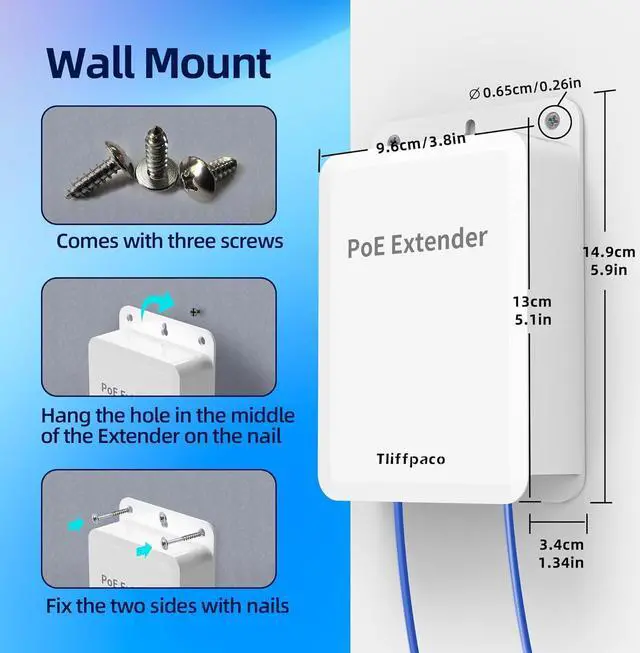

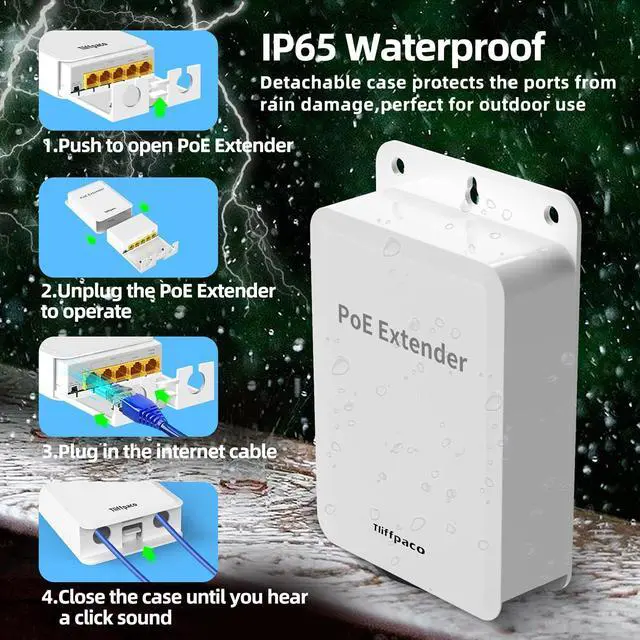

After-sales Service and InstallationWe provide one year of after-sales service. We will replace the product without repair within one year from the date of purchase. Wall-mounted design for flexible installation; industrial-grade ABS polymer material housing with waterproof, dust-proof, and snow-proof exterior design for outdoor and indoor use.
