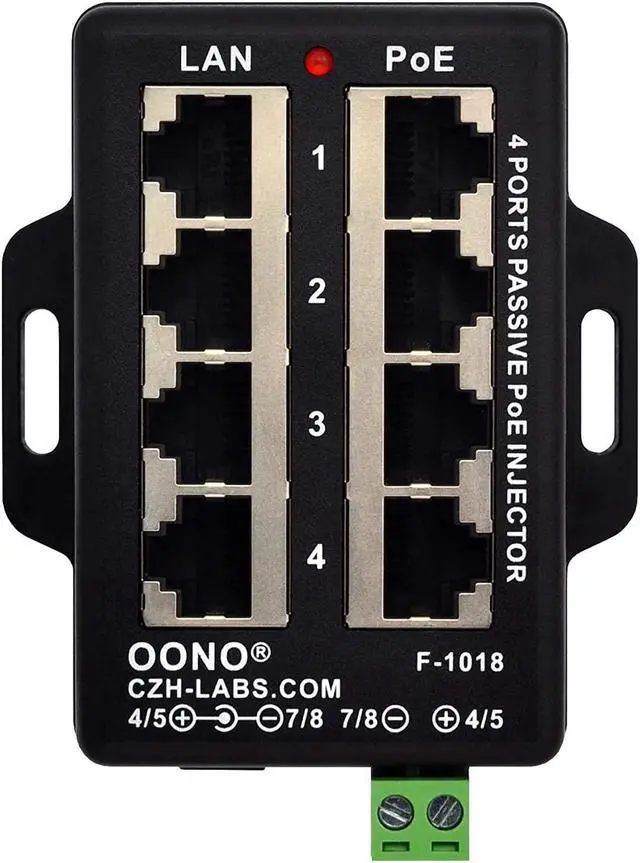

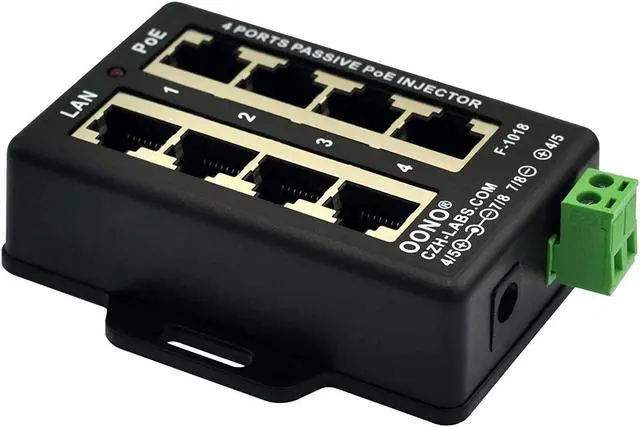

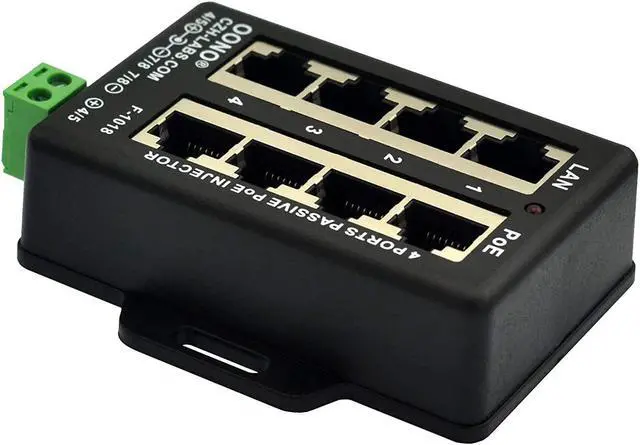

Simple power up 4 passive 10/100Mbps PoE devices by one power source application use for Access Points, IP cameras, IP phones, etc.

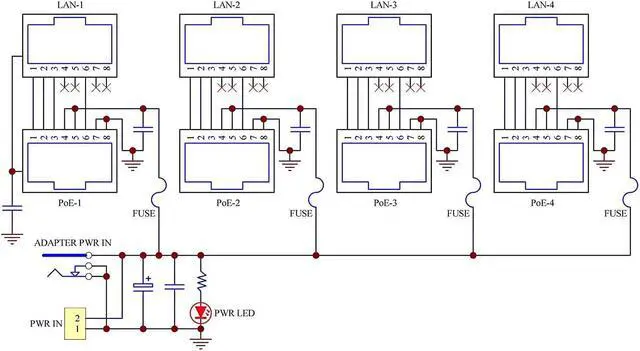

Power input for all PoE power supply, each port serial a recoverable fuse(fuse value 1.1A mp / 72V).
Power input from 5.5 mm x 2.1 mm socket jack or pluggable terminal block, LED indication for power supply on/off status.
Specifications
: power
supply input: 12VDC - 60VDC, maximum current 5Amp;
LAN Input: RJ45 1 / 2 / 3 / 6 pins (data), 4 / 5 / 7 / 8 pins not connected;
PoE Output: RJ45 1 / 2 / 3 / 6 pins (data). 4 / 5 pins power +, 7 / 8 pins power -;
Data Rate: 10 / 100Mbps; PoE Power Output Maximum Current (per channel): 720mA;
Power socket jack polarity: middle pin is positive, diameter 2.1 mm.
