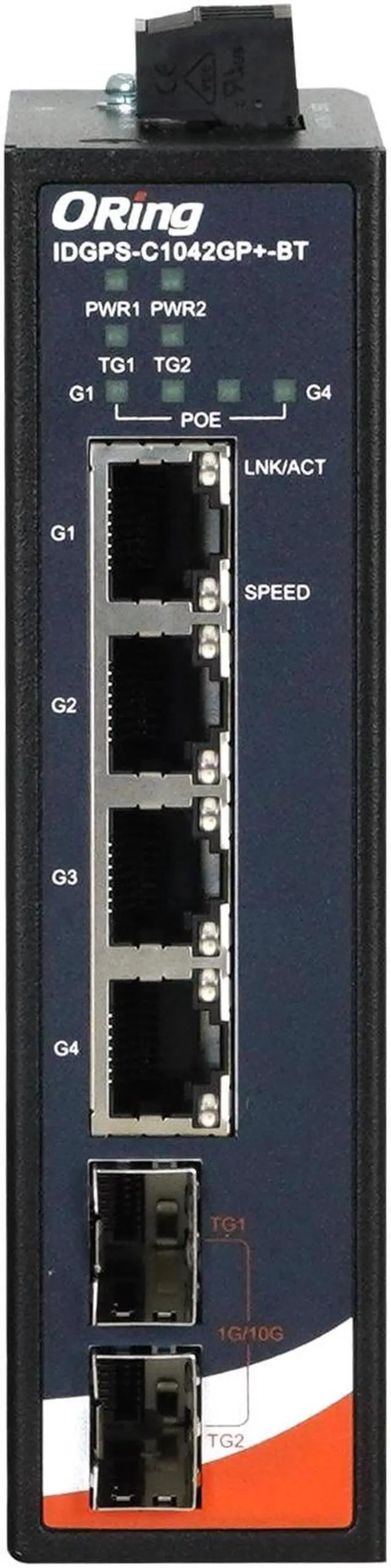

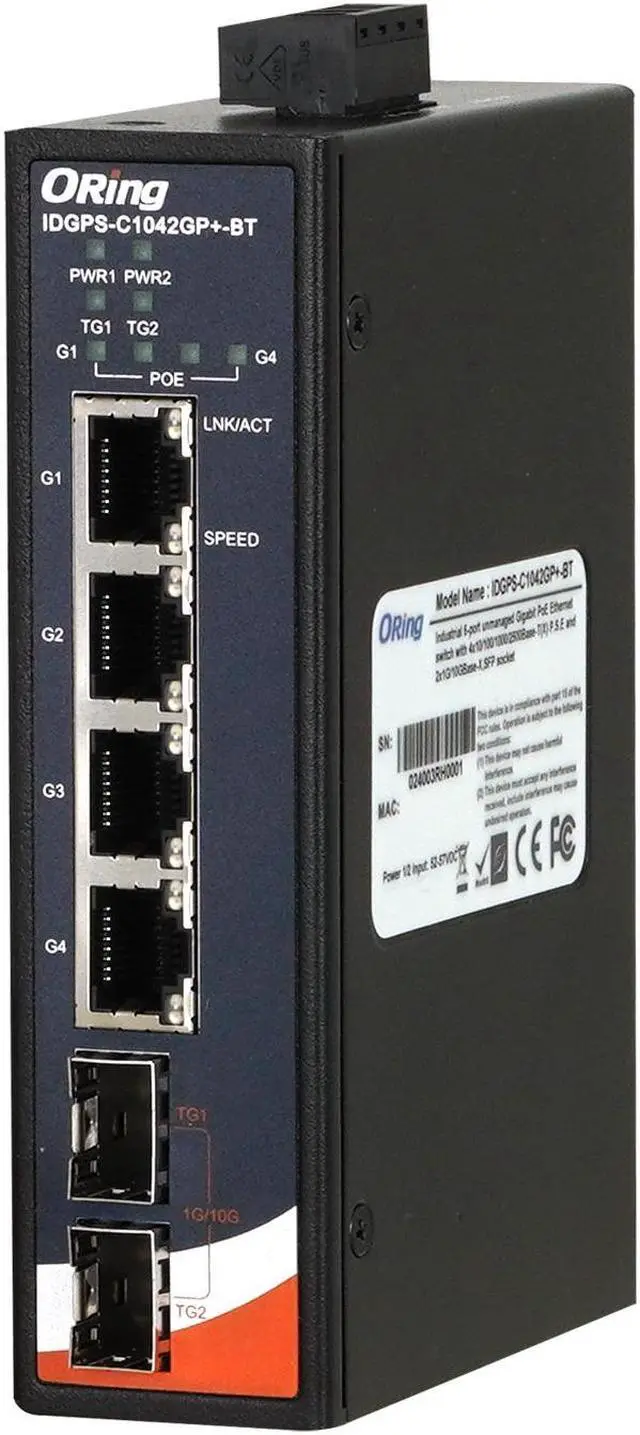

The IDGPS-C1042GP+-BT is equipped with 4 high-speed 2.5Gb/s PoE ports that support the IEEE 802.3bt standard, providing enhanced power delivery for demanding PD devices such as PTZ cameras, wireless APs, and industrial sensors. In addition, the switch offers 2 10G fiber uplink ports, enabling ultra-fast and reliable data transmission to the backbone network, making it ideal for bandwidth-intensive industrial applications.
Saves space, installs easily in compact areas, simplifies maintenance, and is cost-effective, ideal where advanced features aren't needed.
Equipped with a spring-loaded clamp type DIN-rail design, the switch can be installed more easily and efficiently, saving both time and effort.
2.5G Ethernet and 10G fiber uplinks offers high-speed connectivity with plug-and-play simplicity. ideal for performance-driven industrial or commercial environments.

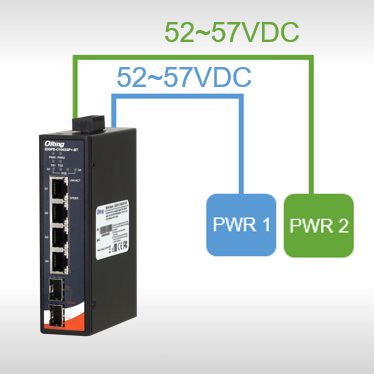

Ensuring continuous operation. If one power source fails, the other takes over seamlessly, enhancing system reliability and minimizing downtime.
Delivering higher bandwidth for high-resolution IP cameras and smooth video streaming, while ensuring stable backhaul to the NVR or control center via 10G uplink.
Providing fast local communication between high-speed devices like vision systems or industrial PCs, with 10G uplinks supporting centralized data processing and monitoring.
Powering edge devices like smart cameras or sensors with 2.5G PoE, while aggregating large data volumes through 10G fiber for real-time analysis and responsive services.

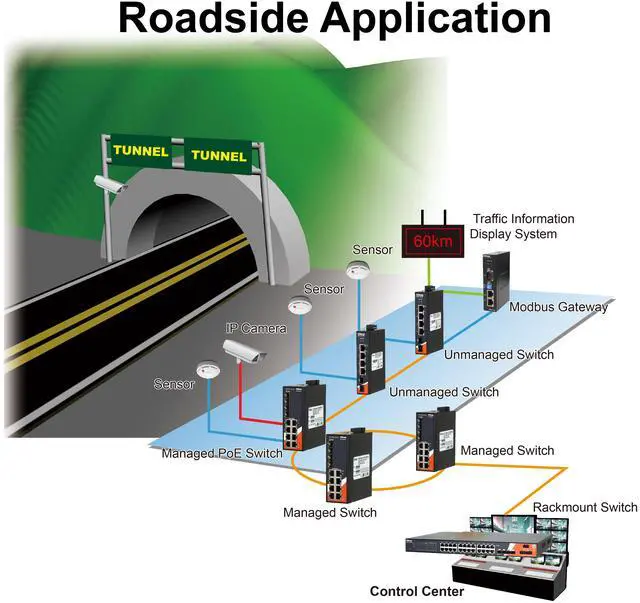

Ensuring fast data delivery from traffic sensors and cameras to central systems, while simplifying roadside deployments with high-power PoE and fiber connectivity.
| 10/100/1000/2500Base-T(X) PoE | 4 |
|---|---|
| 1G/10G Base-X with SFP port | 2 |
| MAC Table | 8K |
| Processing | Store-and-Forward |
| Jumbo Frame | 16K Bytes |
| Switch Properties | Switching latency: 10us. Switching bandwidth: 60Gbps |
| Redundant Input Power | Dual 52~57VDC on 4-pin terminal block |
| Power Consumption (Typ.) | <10Watts |
| PoE Power Budget | 240W (Max.) |
| Overload Current Protection | Present |
| Enclosure | IP-40 Metal |
| Dimension (W x D x H) | 35(W) x 88 (D) x 130(H) mm |
| Storage Temperature | -40 to 85°C (-40 to 185°F) |
| Operating Temperature | -40 to 75°C (-40 to 167°F) |
| Operating Humidity | 5% to 95% Non-condensing |
| EMC | CE EMC (EN 55035, EN 55032), FCC Part 15 B |
| Shock | IEC 60068-2-27 |
| Free Fall | IEC 60068-2-31 |
| Vibration | IEC 60068-2-6 |
| Safety | EN 62368-1 (LVD) |
