Compact Design
Saves space, installs easily in compact areas, simplifies maintenance, and is cost-effective, ideal where advanced features aren't needed.
Built-in QoS
Ensuring prioritized data flow and prevent network disruptions, enhancing reliability in demanding environments.
Broadcast Storm Protection
Prevent the impact of broadcast storms, which can severely degrade network performance and stability.
Ideal for Industrial Applications
ORing's C1000 series unmanaged Ethernet switches are ideal for factory and other industrial applications due to their robust design and reliable performance. These switches offer plug-and-play simplicity, ensuring easy deployment without requiring complex configurations. This series of models supports 5 to 16 network ports, meeting various application requirements for different transmission quantities.
The C1000 series switches provide cost-effective networking solutions by reducing upfront costs and minimizing maintenance efforts. They facilitate efficient data transmission, ensuring reliable connectivity essential for critical industrial processes.
Target Applications

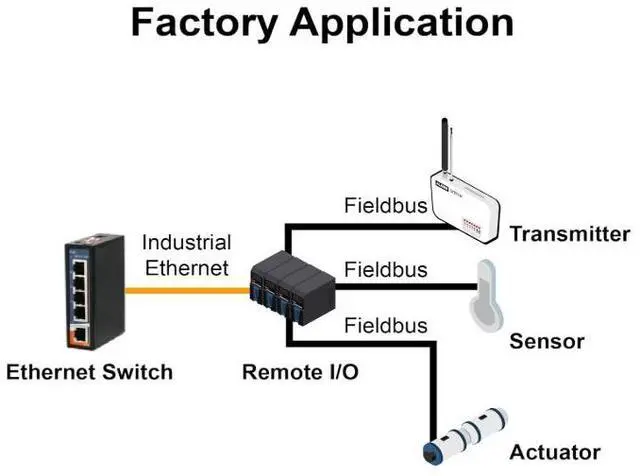

Factory Automation
Withstanding harsh industrial conditions while enabling fast, stable communication between machines and control systems through plug-and-play deployment.
Surveillance
Delivering reliable data and power to IP cameras in outdoor or factory environments, ensuring uninterrupted video streams with industrial-grade durability.
Building Automation
Simplifying network setup for HVAC, lighting, and access control systems in utility rooms or control panels, with rugged design suited for non-climate-controlled areas.
Retail
Ensuring stable connectivity for POS, signage, and surveillance devices in challenging environments like warehouses or large-format retail stores, while minimizing maintenance.
| Products | ||||||
|---|---|---|---|---|---|---|
| RJ45 Port | 5x 100M | 4x 100M | 8x 100M | 16x 100M | 5x 1G | 8x 1G |
| Fiber Port | 1x 100FX SFP | |||||
| MAC Table | 1K | 1K | 1K | 8K | 2K | 4K |
| Power Input | 9.6~60VDC/ 24VAC (18~30 VAC) | 9.6~60VDC/ 24VAC (18~30 VAC) | 9.6~60VDC/ 24VAC (18~30 VAC) | Dual 9.6~60VDC/ 24VAC (18~30 VAC) | 9.6~60VDC/ 24VAC (18~30 VAC) | 9.6~60VDC/ 24VAC (18~30 VAC) |
| Enclosure | IP-40 | IP-40 | IP-40 | IP-40 | IP-40 | IP-40 |
| Dimension (W x H x D) | 26 × 103 × 64 mm | 26 × 103 × 64 mm | 43.5 × 103 × 64 mm | 50 x 143 x 110 mm | 26 × 103 × 64 mm | 43.5 × 103 × 64 mm |
| Operating Temperature | -10 to 60°C | -10 to 60°C | -10 to 60°C | -10 to 60°C | -10 to 60°C | -10 to 60°C |
| EMC | CE EMC (EN 55035, EN 55032), FCC Part 15 B | CE EMC (EN 55035, EN 55032), FCC Part 15 B | CE EMC (EN 55035, EN 55032), FCC Part 15 B | CE EMC (EN 55035, EN 55032), FCC Part 15 B | CE EMC (EN 55035, EN 55032), FCC Part 15 B | CE EMC (EN 55035, EN 55032), FCC Part 15 B |
| Safety | EN/ IEC 62368-1, UL 61010-1, UL 61010-2-201 | EN/ IEC 62368-1, UL 61010-1, UL 61010-2-201 | EN/ IEC 62368-1, UL 61010-1, UL 61010-2-201 | EN/ IEC 62368-1, UL 61010-1, UL 61010-2-201 | EN/ IEC 62368-1, UL 61010-1, UL 61010-2-201 | EN/ IEC 62368-1, UL 61010-1, UL 61010-2-201 |
