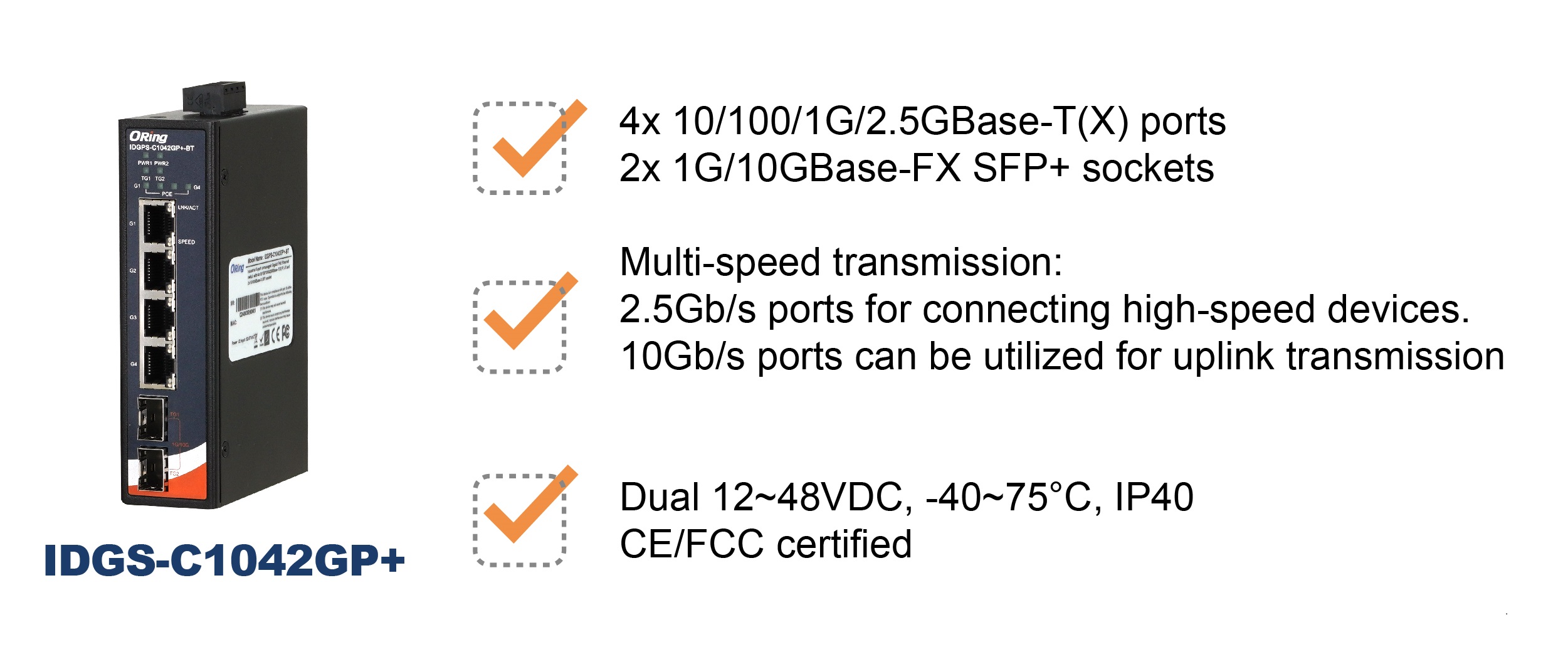

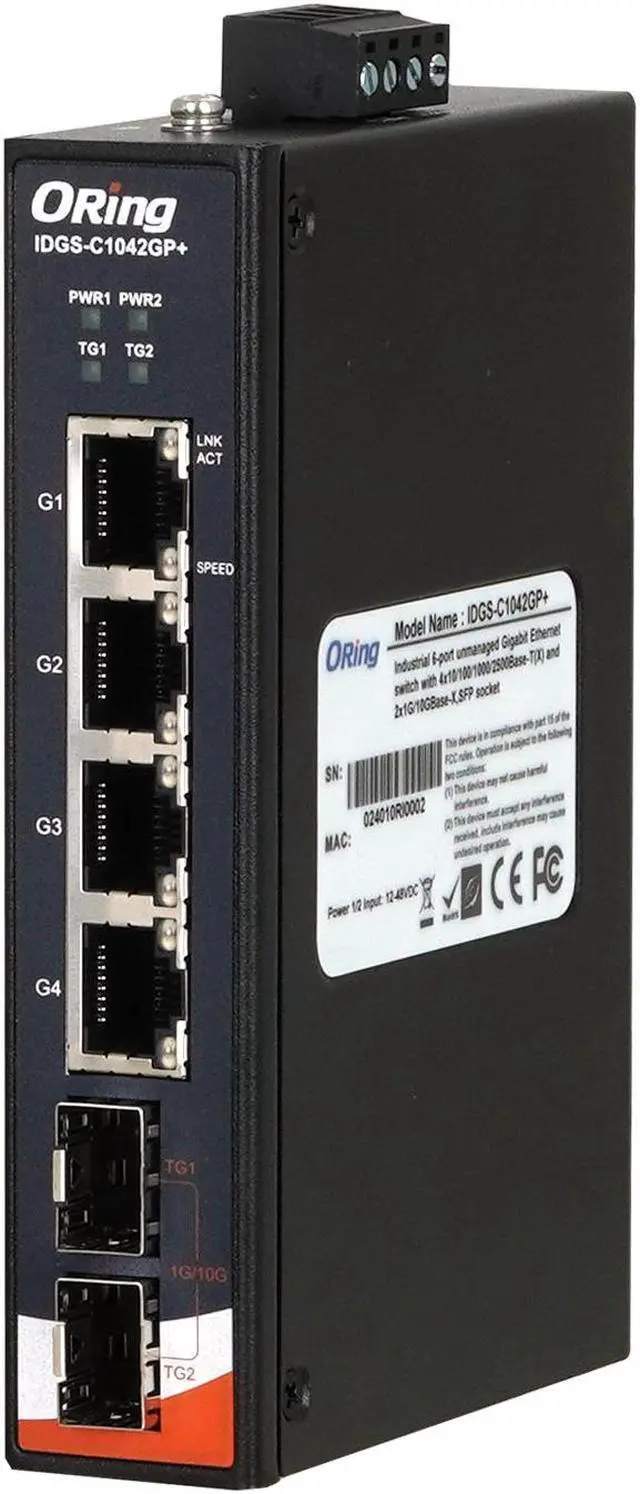

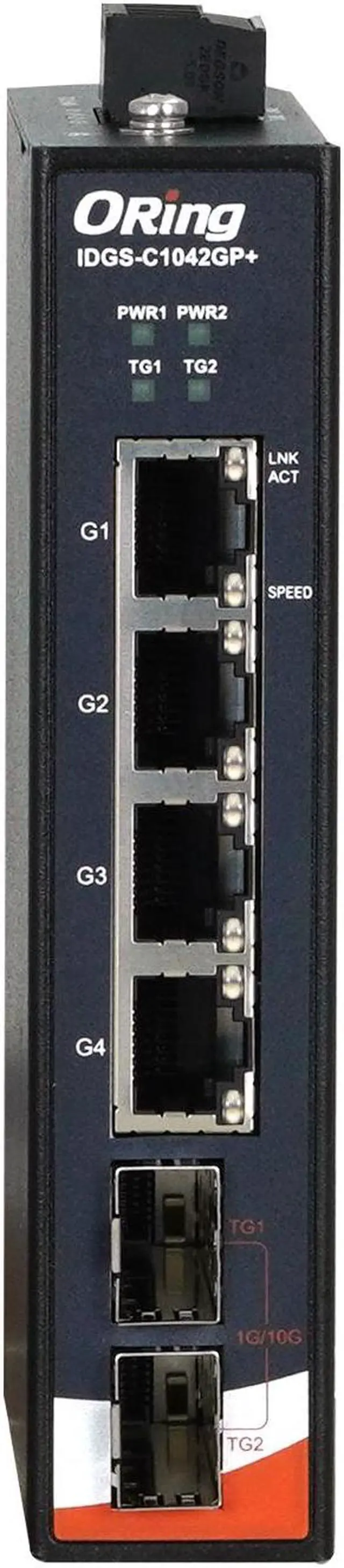

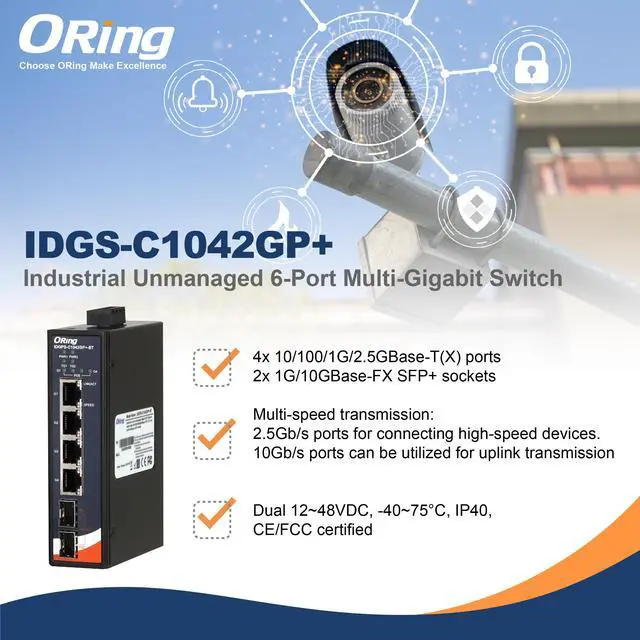

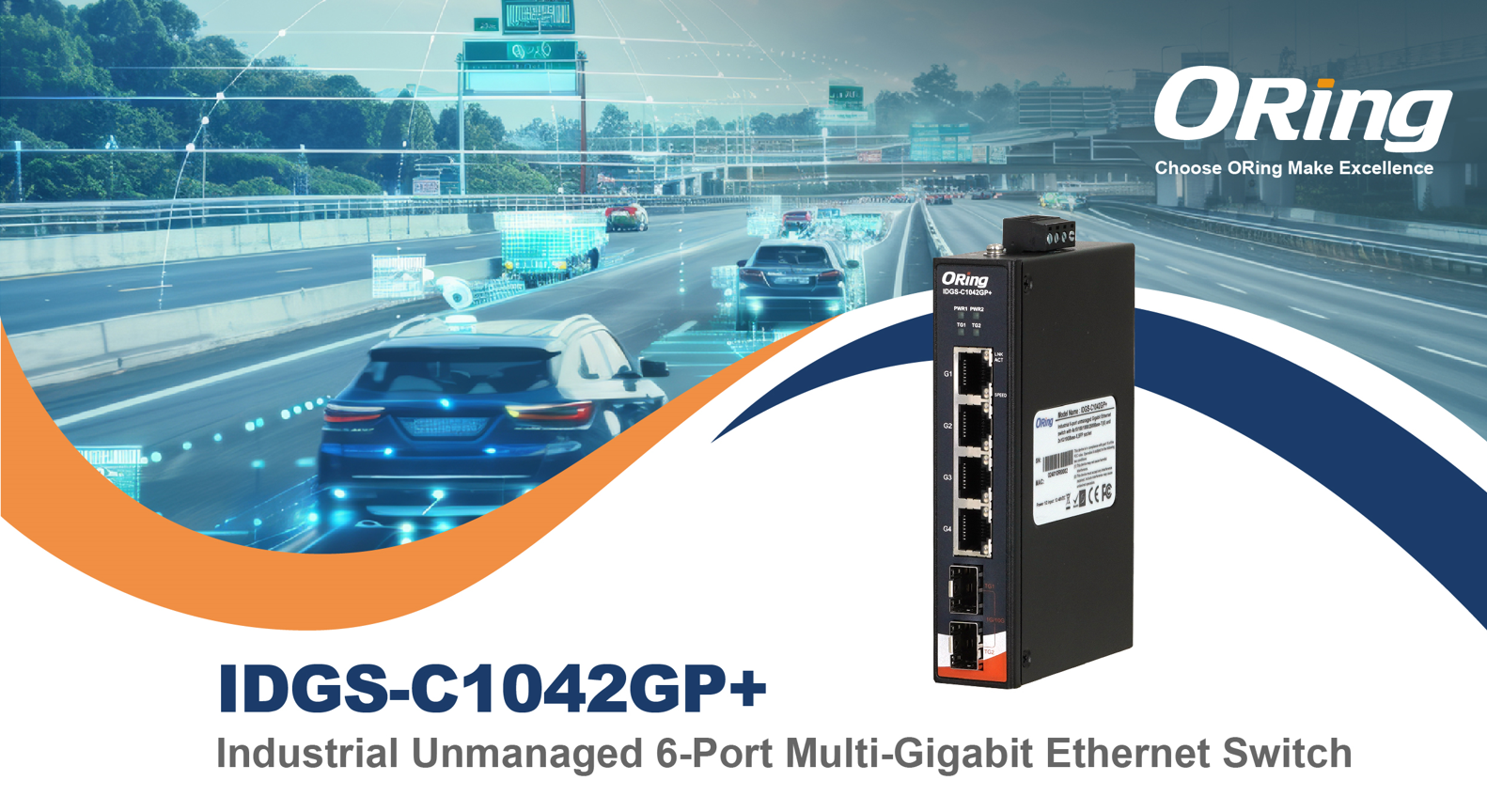

The IDGS-C1042GP+ is equipped with 4 high-speed 2.5Gb/s ports, providing faster data transfer compared to standard Gigabit ports. This enables smoother communication between local devices such as IP cameras, Wi-Fi 6 access points, and industrial PCs. In addition, the switch offers 2 10G fiber uplink ports, enabling ultra-fast and reliable data transmission to the backbone network, making it ideal for bandwidth-intensive industrial applications.
Saves space, installs easily in compact areas, simplifies maintenance, and is cost-effective, ideal where advanced features aren't needed.

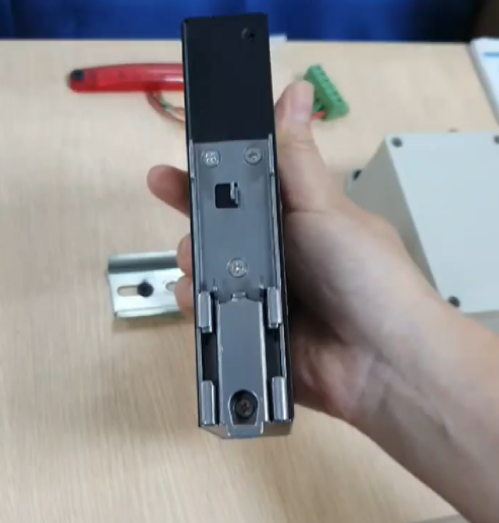

Equipped with a spring-loaded clamp type DIN-rail design, the switch can be installed more easily and efficiently, saving both time and effort.
2.5G Ethernet and 10G fiber uplinks offers high-speed connectivity with plug-and-play simplicity. ideal for performance-driven industrial or commercial environments.

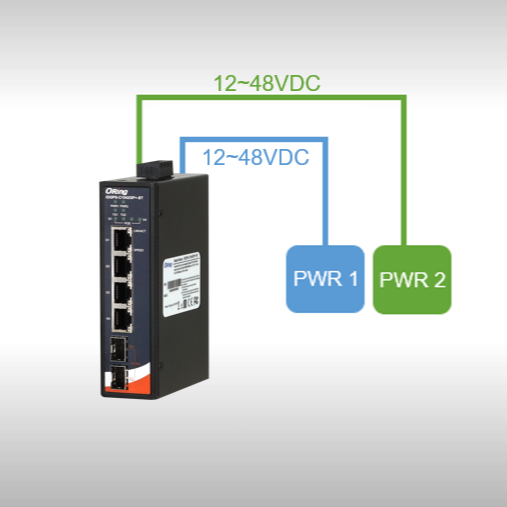

Ensuring continuous operation. If one power source fails, the other takes over seamlessly, enhancing system reliability and minimizing downtime.
Supporting faster data exchange between industrial PCs, sensors, and machines, while 10G uplinks ensure high-speed data transmission to upstream systems for real-time monitoring.
Enabling smooth transmission of high-resolution video from 2.5G IP cameras, with 10G uplinks ensuring stable, high-bandwidth backhaul to NVRs or control centers.
Improving communication speed between roadside equipment and central systems, with 2.5G ports reducing local bottlenecks and 10G uplinks supporting traffic data integration.
Accelerating connectivity for smart devices such as kiosks or traffic sensors, with 10G fiber uplinks aggregating large volumes of urban data for instant processing.
| 10/100/1G/2.5G Base-T(X) Port | 4 |
|---|---|
| 1G/10G Base-X SFP Port | 2 |
| MAC Table | 8K |
| Processing | Store-and-Forward |
| Jumbo Frame | 16K Bytes |
| Switch Properties | Switching latency: 10us. Switching bandwidth: 60Gbps |
| Power Input | Dual 12~48VDC |
| Enclosure | IP40, Metal |
| Dimension | 28 (W) x 88 (D) x 130 (H) mm |
| Operating Temperature | -40 to 75°C (-40 to 167°F) |
| EMC | CE EMC (EN 55035, EN 55032), FCC Part 15 B |
| Shock | IEC 60068-2-27 |
| Free Fall | IEC 60068-2-31 |
| Vibration | IEC 60068-2-6 |
| Safety | EN 62368-1 (LVD) |
