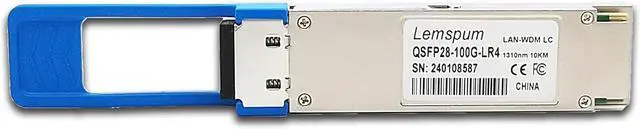

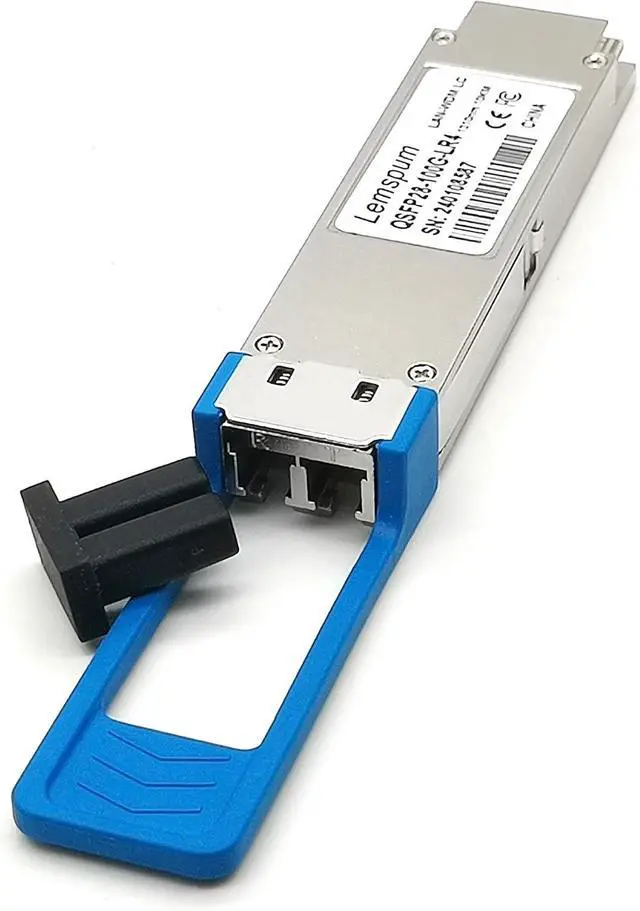

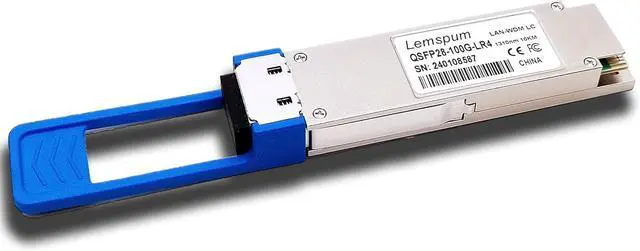

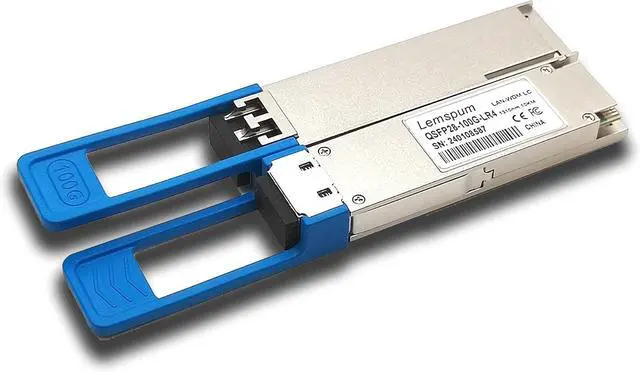

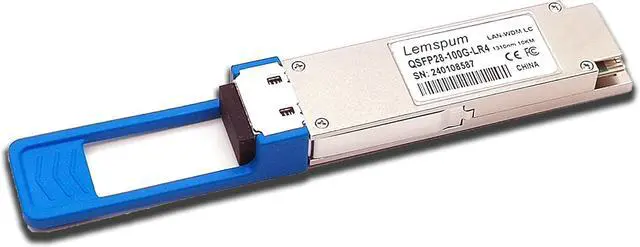

1pc 100Gb QSFP28 Singlemode Module 100GBASE-LR4 1310nm 10km DOM Duplex LC SMF Optical Transceiver Compatible with Arista/Brocade/Dell SFP-100G-LR4 ect.
- The 100gbe QSFP28 module provides 100GBase-LR4 throughput up to 10km over a standard pair of single mode fiber (SMF) with duplex LC connectors.
- Data Rare: 100Gbps. Connector: Duplex LC. Transmitter Type: 4 x LAN WDM EML. Support 100G to 4x25G Breakout Application.
- Hot Pluggable QSFP28 MSA Compliant. With DDM Function to monitor real-time parameter and state on fiber links.
- Compliant with IEEE 802.3 100GBASE-LR4, SFF-8665 and SFF-8636 standards. Digital diagnostics functions are also available via the I2C interface, as specified by the QSFP28 MSA, to allow access to real-time operating parameters.
- Compatible with Arista SFP-100G-LR4/Brocade SFP-100G-LR4/Dell SFP-100G-LR4/Intel E810/Mellanox MMA1B00-C100D/Palo Alto Networks PAN-100G-QSFP28-LR4 and other fiber switches, routers, NIC, server or other fiber optic equipment with 100G QSFP28 ports.
- 100% Tested. 36-Month Free-Maintenance. 30-Day for unconditional replacement or refund for any quality issue.Lifetime technology support.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
100GBASE-LR4 QSFP28 Fiber Optical Transceiver Module (SMF, 1310nm, 10km, LC, DOM)
Form Factor: QSFP28
Max Data Rate: 103.125Gbps (4x 25.78Gbps)
Wavelength: 1310nm
Max Distance Distance: 10KM
Connector: Duplex LC
Media: SMF
TX Power: -4.3~4.5dBm
Typical Power Consumption: 3.5W
DDM/DOM: Supported
Working Temperature: 0 to 70°C (32 to 158°F)
Compatible Device:
Arista SFP-100G-LR4/Brocade SFP-100G-LR4/Dell SFP-100G-LR4/Intel E810/Mellanox MMA1B00-C100D/Palo Alto Networks PAN-100G-QSFP28-LR4 and other fiber switches, routers, NIC, server or other fiber optic equipment with 100Gb QSFP28 ports.
Easy to install, hot swappable 100gbe qsfp28 transceiver is suitable to be used in various applications, such as 100G telecom connections, data centers, 100GBASE Ethernet, high-performance computing networks, enterprise core and distribution layer applications.
Form Factor: QSFP28
Max Data Rate: 103.125Gbps (4x 25.78Gbps)
Wavelength: 1310nm
Max Distance Distance: 10KM
Connector: Duplex LC
Media: SMF
TX Power: -4.3~4.5dBm
Typical Power Consumption: 3.5W
DDM/DOM: Supported
Working Temperature: 0 to 70°C (32 to 158°F)
Compatible Device:
Arista SFP-100G-LR4/Brocade SFP-100G-LR4/Dell SFP-100G-LR4/Intel E810/Mellanox MMA1B00-C100D/Palo Alto Networks PAN-100G-QSFP28-LR4 and other fiber switches, routers, NIC, server or other fiber optic equipment with 100Gb QSFP28 ports.
Easy to install, hot swappable 100gbe qsfp28 transceiver is suitable to be used in various applications, such as 100G telecom connections, data centers, 100GBASE Ethernet, high-performance computing networks, enterprise core and distribution layer applications.
