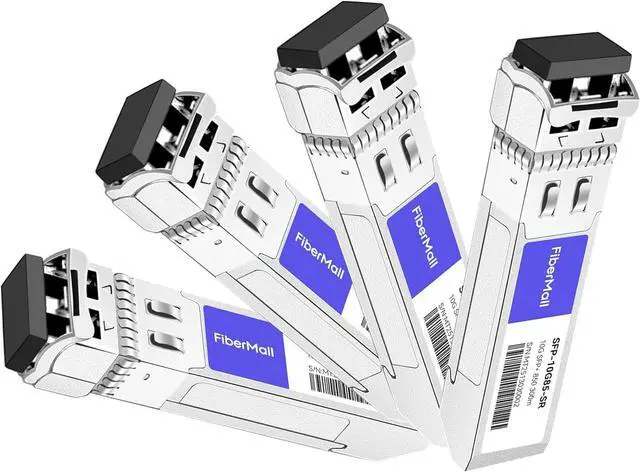

SFP+10G SR Optical Transceiver Module Compatible with Fortinet Network Fn-Tran-SFP+SR 10GBASE-SR SFP+ 850nm 300m DDM Duplex LC MMF 4 Pack
- 10GBASE-SR SFP+ Optical Transceiver Module supports up to 400m link lengths over OM4 MMF (300m over OM3 MMF) via an LC duplex connector.
- SFP+ 10G SR Transceiver Module Support 4x10G Fan out and Easy Migration to 40G Platforms. Hot Pluggable SFP+ MSA and RoHS Compliant to Maximize Uptime and Simplify Maintenance
- Max. Power Consumption 1W Allowing for Prolonged Service Life, Commercial Temperature Range 0 to 70°C (32 to 158°F)
- Real Time Digital Optical Monitoring Capability for Strong Diagnostic Capabilities
- Compliant to IEEE 802.3ae Gigabit Ethernet and SFF-8472, SFF-8431, SFF-8432 with duplex LC receptacle
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now

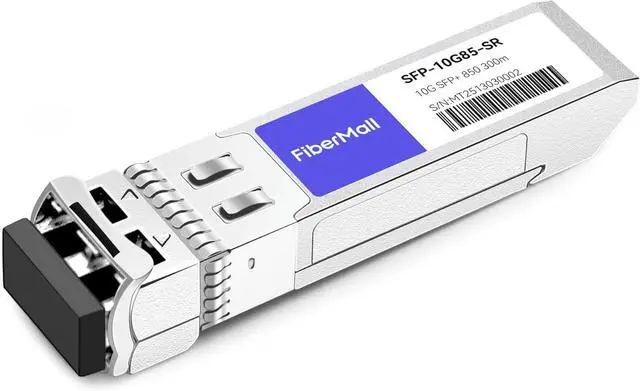

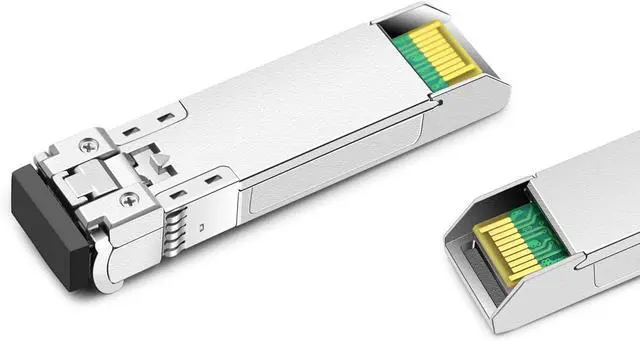

FiberMall SFP-10G85-SR-Fe 10G SFP+ transceivers are high performance, cost effective modules supporting data rate of 10.3Gbps.
The transceivers consists of three sections: a VCSEL laser transmitter, a PIN photodiode integrated with a trans-impedance preamplifier (TIA) and MCU control unit. All modules satisfy class I laser safety requirements.
The transceivers are compatible with SFP Multi-Source Agreement and SFF-8472 digital diagnostics functions.
Product Features
Fortinet Network Compatible :Fn-Tran-SFP+SR
rand Name: Fiber Mall
Form Type: SFP+
Supports up to 10.7Gbps bit rates
Hot-pluggable SFP+ footprint
850nm VCSEL laser and PIN photodiode, Up to 300m for OM3-MMF transmission
Compliant with SFP+ MSA and SFF-8472 with duplex LC receptacle
Compatible with RoHS
Single +3.3V power supply
Real Time Digital Diagnostic Monitoring
Operating case temperature:
Standard: 0 to +70°C
Industrial: -40 to +85°C
Applications
10GBASE-SR at 10.3125Gbps
10GBASE-SW at 9.953Gbps
Other Optical links
10GBASE-SR SFP+ Transceiver Module (MMF, 850nm, 300m, LC, DOM)
Package

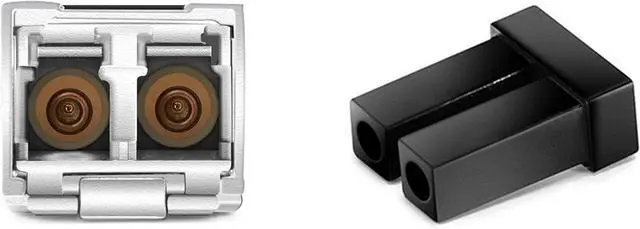

1*sfp dust cover
1 *pair 10GBase SR fiber transceiver module
1* package box
The transceivers consists of three sections: a VCSEL laser transmitter, a PIN photodiode integrated with a trans-impedance preamplifier (TIA) and MCU control unit. All modules satisfy class I laser safety requirements.
The transceivers are compatible with SFP Multi-Source Agreement and SFF-8472 digital diagnostics functions.
Product Features
Fortinet Network Compatible :Fn-Tran-SFP+SR
rand Name: Fiber Mall
Form Type: SFP+
Supports up to 10.7Gbps bit rates
Hot-pluggable SFP+ footprint
850nm VCSEL laser and PIN photodiode, Up to 300m for OM3-MMF transmission
Compliant with SFP+ MSA and SFF-8472 with duplex LC receptacle
Compatible with RoHS
Single +3.3V power supply
Real Time Digital Diagnostic Monitoring
Operating case temperature:
Standard: 0 to +70°C
Industrial: -40 to +85°C
Applications
10GBASE-SR at 10.3125Gbps
10GBASE-SW at 9.953Gbps
Other Optical links
10GBASE-SR SFP+ Transceiver Module (MMF, 850nm, 300m, LC, DOM)
Package
1*sfp dust cover
1 *pair 10GBase SR fiber transceiver module
1* package box
