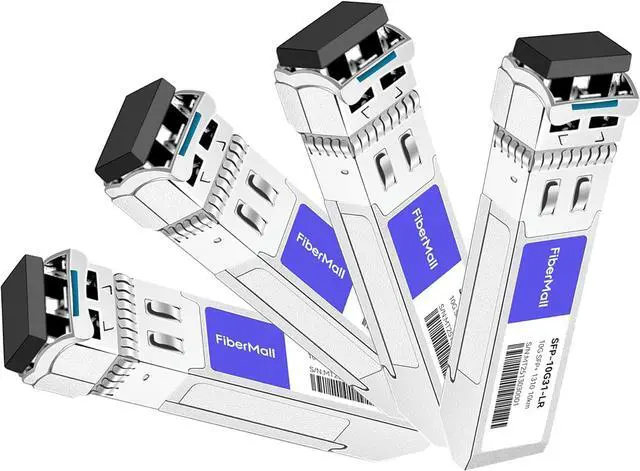

SFP+ 10G LR Optical Transceiver Module Compatible with Fortinet Network FN-Tran-SFP-LR 10GBASE-LR SFP+ 1310nm 10km DDM Duplex LC SMF 4 Pack
- 10GBASE-LR SFP+ Optical Transceiver Module supports up to 10km link lengths over LC duplex SMF fiber.
- Max. Power Consumption 1W Allowing for Prolonged Service Life, Commercial Temperature Range 0 to 70°C (32 to 158°F)
- Real Time Digital Optical Monitoring Capability for Strong Diagnostic Capabilities
- TO Package Features High Reliability and Robust Physical Protection. Hot Pluggable SFP+ MSA and RoHS Compliant to Maximize Uptime and Simplify Maintenance
- Compliant to IEEE 802.3ae Gigabit Ethernet and SFF-8472, SFF-8431, SFF-8432 with duplex LC receptacle
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now

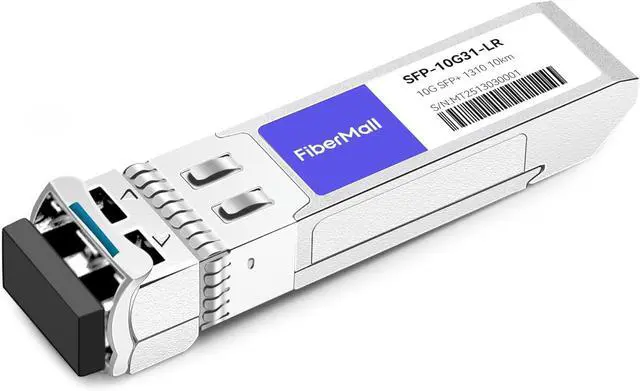

FiberMall SFP-10G31-LR-Fe 10G SFP+ transceivers are high performance, cost effective modules supporting data rate of 10Gbps and 10km transmission distance with SMF.
The transceiver consists of three sections: a DFB laser transmitter, a PIN photodiode integrated with a trans-impedance preamplifier (TIA) and MCU control unit. All modules satisfy class I laser safety requirements.
The transceivers are compatible with SFP Multi-Source Agreement and SFF-8472 digital diagnostics functions.

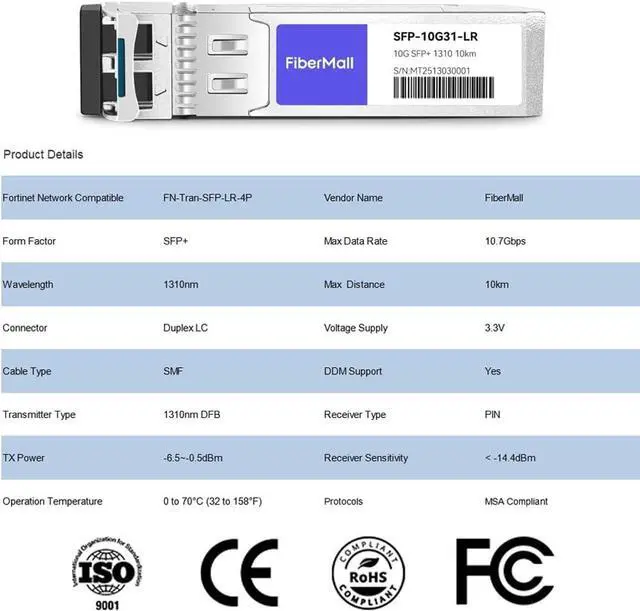

Product Features
Fortinet Network Compatible :FN-Tran-SFP-LR
Brand Name: Fiber Mall
Form Type: SFP+
Supports up to 10.7Gbps bit rates
Hot-pluggable SFP+ footprint
1310nm DFB laser and PIN photodiode, Up to 10km for SMF transmission
Compliant with SFP+ MSA and SFF-8472 with duplex LC receptacle
Compatible with RoHS
Single +3.3V power supply
Real Time Digital Diagnostic Monitoring
Operating case temperature:
Standard: 0 to +70°C
Industrial: -40 to +85°C
Applications
10Gbps Optical systems
10GBASE-LR at 10.3125Gbps
10GBASE-LW at 9.953Gbps
LTE systems
Other Optical links
10GBASE-LR SFP+ Transceiver Module (SMF, 1310nm, 10km, LC, DOM)
Package

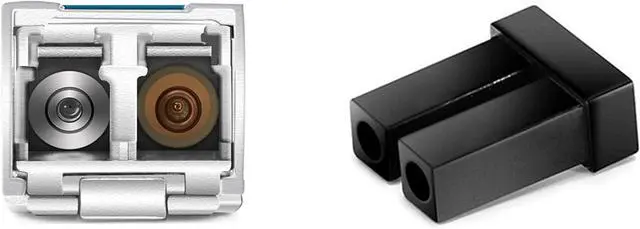

1*sfp dust cover
1 *pair 10GBase LR fiber transceiver module
1* package box
The transceiver consists of three sections: a DFB laser transmitter, a PIN photodiode integrated with a trans-impedance preamplifier (TIA) and MCU control unit. All modules satisfy class I laser safety requirements.
The transceivers are compatible with SFP Multi-Source Agreement and SFF-8472 digital diagnostics functions.
Product Features
Fortinet Network Compatible :FN-Tran-SFP-LR
Brand Name: Fiber Mall
Form Type: SFP+
Supports up to 10.7Gbps bit rates
Hot-pluggable SFP+ footprint
1310nm DFB laser and PIN photodiode, Up to 10km for SMF transmission
Compliant with SFP+ MSA and SFF-8472 with duplex LC receptacle
Compatible with RoHS
Single +3.3V power supply
Real Time Digital Diagnostic Monitoring
Operating case temperature:
Standard: 0 to +70°C
Industrial: -40 to +85°C
Applications
10Gbps Optical systems
10GBASE-LR at 10.3125Gbps
10GBASE-LW at 9.953Gbps
LTE systems
Other Optical links
10GBASE-LR SFP+ Transceiver Module (SMF, 1310nm, 10km, LC, DOM)
Package
1*sfp dust cover
1 *pair 10GBase LR fiber transceiver module
1* package box
