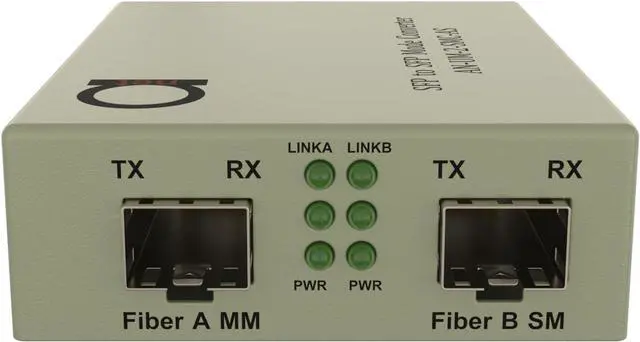

SFP to SFP Fiber Media Converter - 2 x Standard Open SFP Slots - Supports Gigabit, Fast Ethernet and 2.5G SFP miniGBIC modules - Fiber to Fiber Converter - Without Transceivers

Do you have 2 segments of optical fiber network, that do not match in wavelenght or fiber cable type? Or, simply need to extend the distance?
AN-UM-2-SMC-AS is Designed for All these purposes and even beyond them - Use Any Standard SFP Module You Have In Hand to Plug In A & B SFP slots and You Are Done - It Works!
Changing Distance or Fiber Type? Again, Change SFP module , While Keeping Same Media Converter!
Here are some possible applications for you to consider:
Single Mode to Multimode Conversion
Single Mode Dual Fiber to Single Mode Single Fiber Conversion
Various Wavelength Conversion - 850 nm to 1310 nm, 1310 nm to 1550 nm (FP to DFB) and so on

All These Important Features Are All Supported:
Provides 2 open slots for SFP miniGbic modules, all major SFP brands are supported
Supporting hot-swap of SFP modules
Standards: IEEE802.3z/ab 100/1000/1000Base-T 1000Base-LX/SX (depends on type of SFP module used)

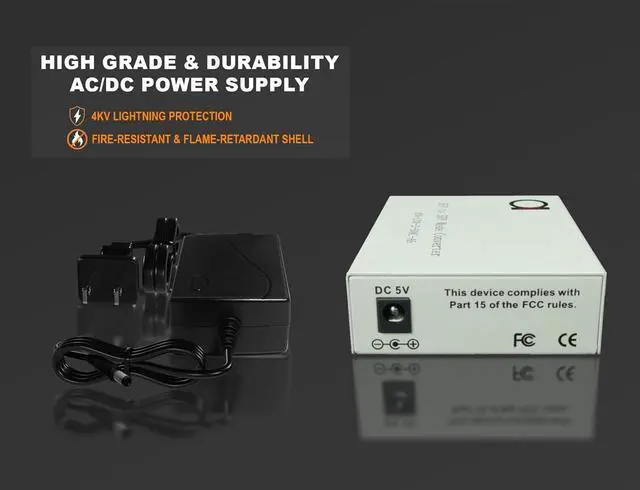

Power supply: 100 to 240VAC 50 to 60Hz
Dimensions: 70.5mm (L) x 94mm (W) x 26.5mm (H)
Environment: Relative humidity; 5% to 90%
Operating temperature: 0 to 70 degree Celsius
CE, FCC, ROHS, LVD certified
Supports Jumbo Ethernet frames up to 9000 bytes

Setup of these units are really easy if you follow 4 steps shown in gallery the above.
Questions during installation? Not sure it will work with your setup? We are always here to answer You and guide You through!
IMPORTANT!: While the unit supports all 3 of the most used tyoes of SFP modules (miniGBIC) - 155M, 1.25G, and 2.5G, use only the same (matching speed modules in Slots A and B at the same time. I.e configuration: Slot A - Gigabit SFP & Slot B Gigabit SFP is OK, but Slot A Fast Ethernet SFP - Slot B Gigabit SFP - will not work!
