XGSPON ONU Stick Optical Transceivers,Compatible Intel 10G NIC:x520-da2, 82599ES 10G SFP+ NIC, X710-BM2,with MAC SFP+ TX-9.95G/RX-9.95G TX-1270nm/RX-1577nm SMF,SC/APC 20km DDM
- This product is applicable to the following 10G Intel network card :Intel x520-da2Intel 82599ES 10G SFP+ NICIntel X710-BM2Should you intend to use it with any other equipment models, please contact customer service first to confirm its compatibility
- Built-in Maxlinear Chip
- -25°C to 85 °C I-Temp Range and TO Hermetic Package for Harsh 3.Outdoor Environments
- Data rate up to 10Gbps, 2.1W Low Power Consumption
- Compliant with ITU-TG.9807.1 and SFP+ MSA
- Integrating XGS PON MAC and Standard Compliant OMCI Stack,EMI Shielding FCC Class N1 Compliant
+
+
Overview
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now

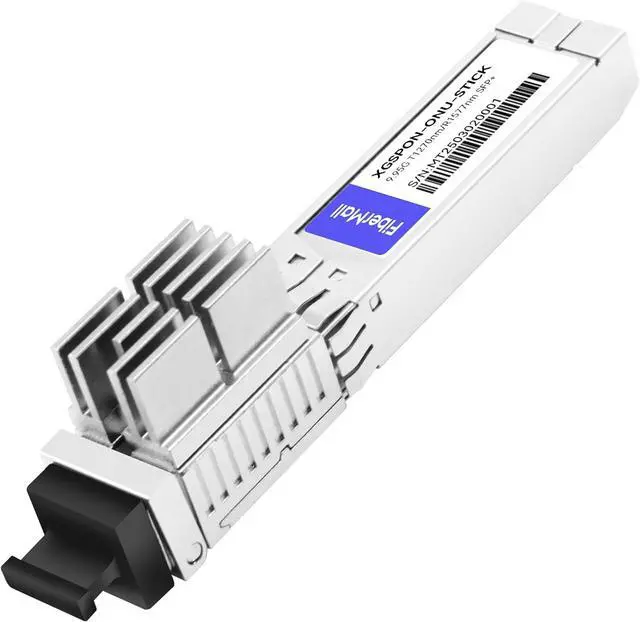

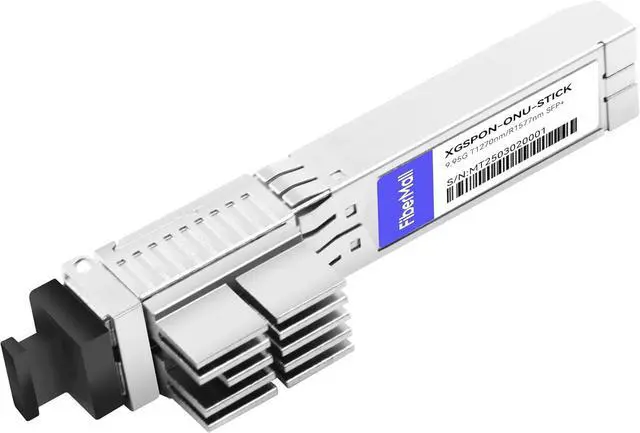

9.953G-TX/9.953G-RX XGSPON ONU Stick with MAC Class N1/N2 Transceiver Chipset: MaxLinear PRX126 (SMF, 1270nm-TX/1577nm-RX, 20km, SC/APC, DDM)
The XGSPON ONU stick with MAC module is designed for 10G passive optical network systems. The STICK optical module can fully meet the requirements of the carrier-grade FTTB\ FTTH\ FTTO device. It can be hot-swapped into the SFP+ slot of the Layer 2 Ethernet switch. The whole machine can be used as an ONT or even an MDU so that the entire device can be directly connected to the XGSPON optical network, the central office OLT only needs to register the XGSPON ONU STICK optical module as if it were a normal optical cat. The communication device can complete the access switch from the original P2P.
The 10G XGSPON ONU Stick SFP+ is inserted into the 10G SFP+ port of the switch or router to communicate with the 10G XGSPON OLT.

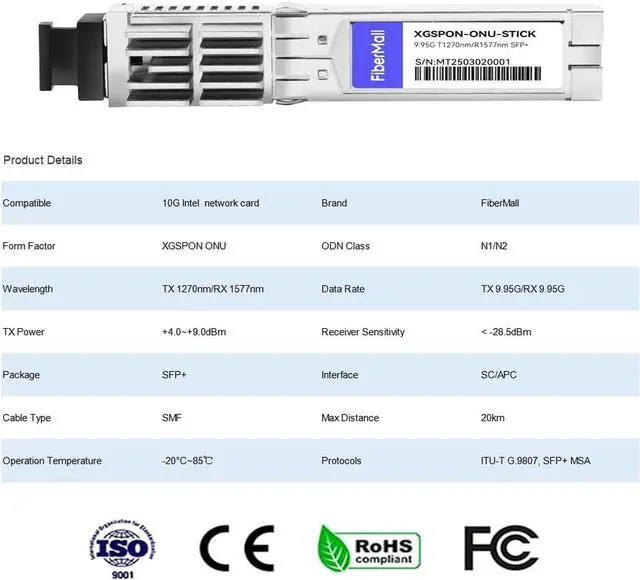

FiberMall P/NXGSPON-ONU-STICKVendor NameFiberMallApplicationXGSPON ONUODN ClassN1/N2WavelengthTX 1270nm/RX 1577nmData RateTX 9.95G/RX 9.95GTX Power+4.0~+9.0dBmReceiver Sensitivity< -28.5dBmPackageSFP+InterfaceSC/APCCable TypeSMFMax Distance20kmOperation Temperature-20°C~85 ProtocolsITU-T G.9807, SFP+ MSA Product Details
The XGSPON ONU stick with MAC module is designed for 10G passive optical network systems. The STICK optical module can fully meet the requirements of the carrier-grade FTTB\ FTTH\ FTTO device. It can be hot-swapped into the SFP+ slot of the Layer 2 Ethernet switch. The whole machine can be used as an ONT or even an MDU so that the entire device can be directly connected to the XGSPON optical network, the central office OLT only needs to register the XGSPON ONU STICK optical module as if it were a normal optical cat. The communication device can complete the access switch from the original P2P.
The 10G XGSPON ONU Stick SFP+ is inserted into the 10G SFP+ port of the switch or router to communicate with the 10G XGSPON OLT.
FiberMall P/NXGSPON-ONU-STICKVendor NameFiberMallApplicationXGSPON ONUODN ClassN1/N2WavelengthTX 1270nm/RX 1577nmData RateTX 9.95G/RX 9.95GTX Power+4.0~+9.0dBmReceiver Sensitivity< -28.5dBmPackageSFP+InterfaceSC/APCCable TypeSMFMax Distance20kmOperation Temperature-20°C~85 ProtocolsITU-T G.9807, SFP+ MSA Product Details
