200GBASE-SR4 PAM4 QSFP56 Optical Transceiver Module Compatible with Arista Networks QSFP-200G-SR4 850nm 100m DDM MPO-12/UPC MMF
- 200GBASE-SR4 PAM4 QSFP56 Optical Transceiver Module, Built-in high performance Chip, Max. Power Consumption 5W enable Prolonged Service Life, Commercial Temperature Range 0 to 70°C (32 to 158°F)
- Tested in Targeted Switches devices for Superior Performance, Quality, and Reliability. We owns compatibility LAB facilities to meet the EEPROM coding and writing requirements with various brands of the latest and advanced networking equipments to ensure the reliability.
- Built-in Real Time Digital Optical Monitoring Capability for Strong Diagnostic Capabilities
- 4x50G PAM4 Retimed 200GAUI-4 Electrical Interface, Hot Pluggable QSFP56 Form Factor
- Compliant with QSFP56 MSA CMIS V4.0, High-speed Electrical Compliant with IEEE802.3bs IEEE 802.3cd and 200GBASE-SR4
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now

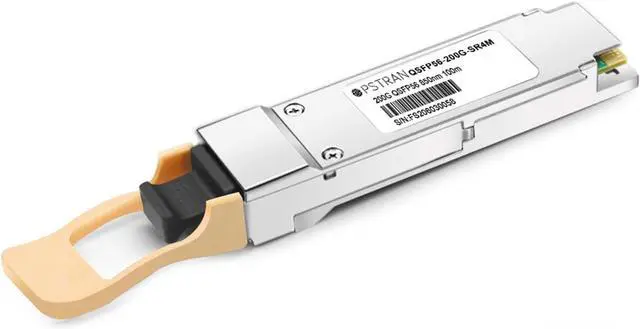

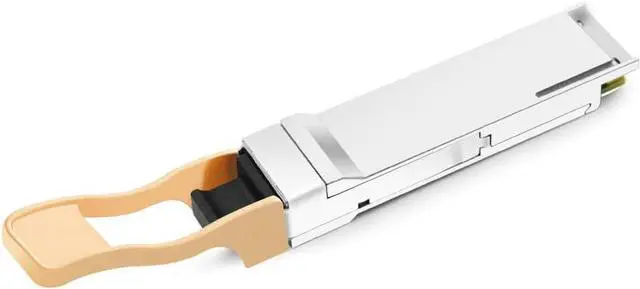

The OPSTRAN QSFP56 Optical Transceiver Module is designed for 200GBASE Ethernet throughput over MTP/MPO-12 connectors using OM4 multimode fiber (MMF) with a wavelength of 850nm up to 100 meters. The transceiver is compliant with IEEE 802.3bs, 200GBASE-SR4, CMIS Rev 4.0 & SFF-8665 standards.
Digital diagnostics functions are available via the I2C interface. It is suitable for data centers, high performance computing networks, enterprise core and distribution layer applications.
Built-in high performance Chip enables 200G stable transmission and low power consumption, saving energy and reducing heat dissipation.
Compatible Part NumberQSFP56-200G-SR4Form FactorQSFP56Max Data Rate200GbpsWavelength850nmMax Cable Distance70m@OM3/100m@OM4ConnectorMTP/MPO-12 UPCMediaMMFTransmitter TypeVCSEL 850nmReceiver TypePINTX Power-3~3dBmReceiver Sensitivity-6.5dBmTypical Power Consumption5WDDMSupportedCommercial Temperature Range0 to 70°C (32 to 158°F)ProtocolsIEEE 802.3bs, QSFP56 MSA, SFF-8665, CMIS Rev 4.0Technology Support5 Years QSFP56-200G-SR4
Digital diagnostics functions are available via the I2C interface. It is suitable for data centers, high performance computing networks, enterprise core and distribution layer applications.
Built-in high performance Chip enables 200G stable transmission and low power consumption, saving energy and reducing heat dissipation.
Compatible Part NumberQSFP56-200G-SR4Form FactorQSFP56Max Data Rate200GbpsWavelength850nmMax Cable Distance70m@OM3/100m@OM4ConnectorMTP/MPO-12 UPCMediaMMFTransmitter TypeVCSEL 850nmReceiver TypePINTX Power-3~3dBmReceiver Sensitivity-6.5dBmTypical Power Consumption5WDDMSupportedCommercial Temperature Range0 to 70°C (32 to 158°F)ProtocolsIEEE 802.3bs, QSFP56 MSA, SFF-8665, CMIS Rev 4.0Technology Support5 Years QSFP56-200G-SR4
