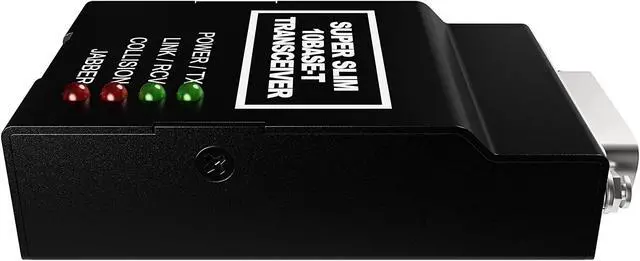

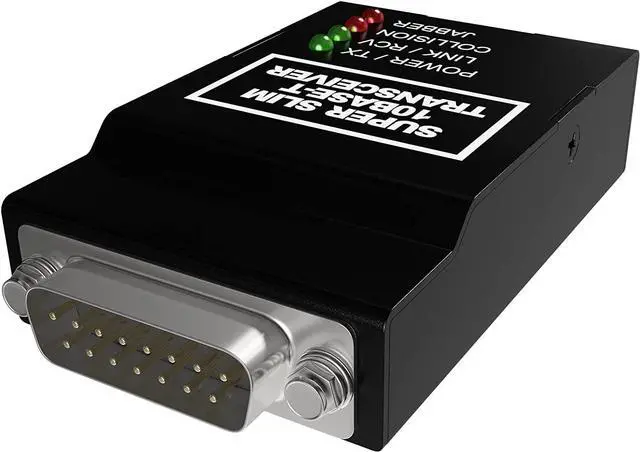

10Base-T RJ45 to 10Base-5 DB15M AUI Type Media Converter | Thick Ethernet Adapter to 10BT UTP RJ-45 Transceiver
- Easily Convert Between 10Base-T RJ45 to 10Base-5 Thick Ethernet DB15M AUI Type
- Extra Small Form Factor Design: Saves Space in Network Hubs & Rooms
- SQE function switch to enable/disable Signal Quality Error function.
- Does not require external power source
- The host can be a Thick Ethernet card, or a 10Base-5 repeater.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
AN-10BT-10B5 media converter / transceiver converts 10Base-5 signals via a DB15M/ AUI connector to standard RJ45 plug for 10Base-T Ethernet for transmission over Unshielded Twisted-Pair cable.

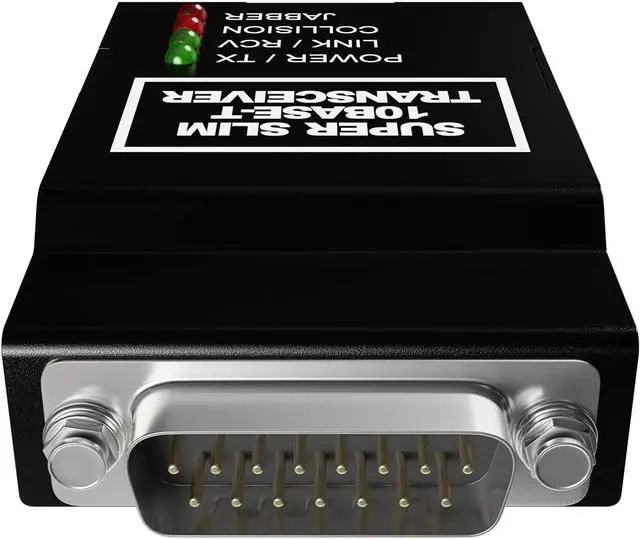

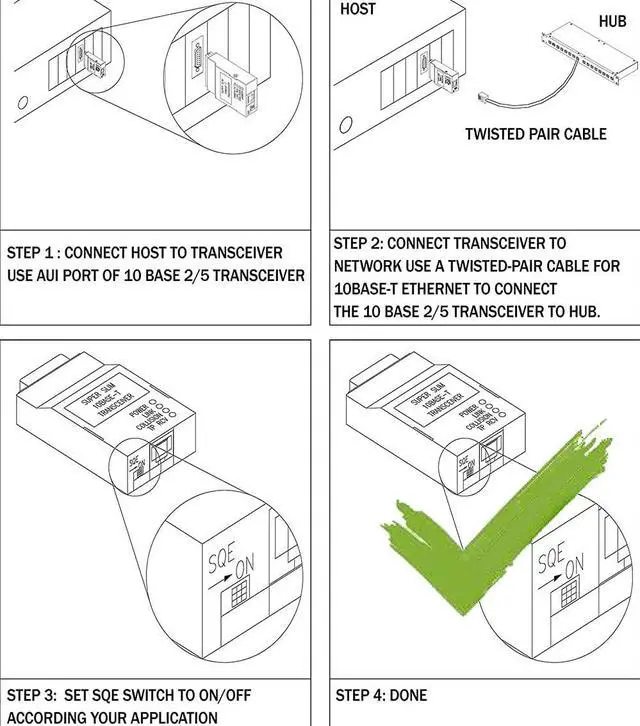

AN-10BT-10B5 converter provides both an AUI connector and RJ-45 jack to facilitate direct connection from Thick Ethernet Host to 10BASE-T Ethernet network. The host can be a Thick Ethernet card, or a 10Base-5 repeater.

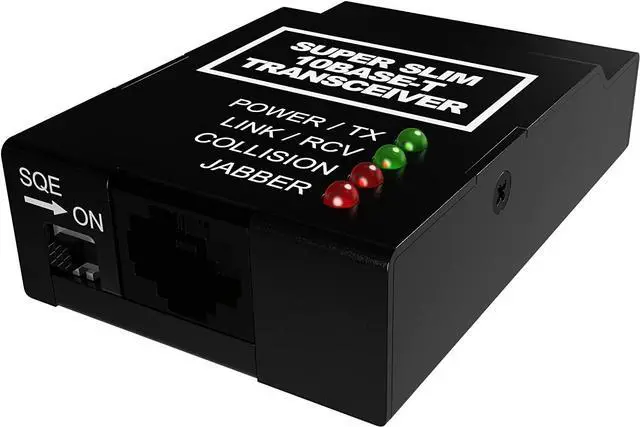

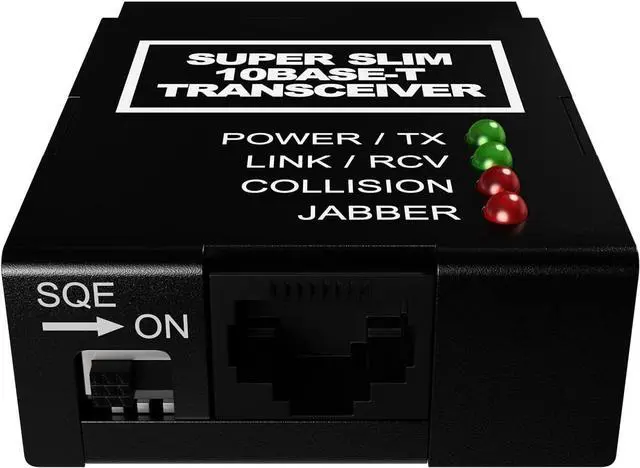

SQE function switch is used to enable Signal Quality Error function. This signal verifies that the collision detect circuit in the transceiver is operational. If the Host to which the transceiver is connected is a computer, set the SQE switch to ON. If the Host is a repeater (coaxial cable use), set the SQE switch to OFF.
InterfaceDB-15 male to 10 Base-5 |RJ-45 Jack to 10 Base-TCable length100m (328 feet) max. per UTP cable LEDsPower/Tx, Col, Link/Rcv, Jabber External Powernot neededOperating Temperature0 to 55C (0 - 131 F)Humidity10 to 90% (non-condensing)StandardIEEE 802.3 10Base-T/10Base-2 EMIMeets FCC Class A Subpart B of Part 15 Requirement TechniqueBasebandDimensions3/4" (H) x 1 3/8" (W) x 2 3/5"(D) 10Base-T RJ45 to 10Base-5 DB15M AUI Type Media Converter | Thick Ethernet Adapter to 10BT UTP RJ-45 Transceiver Technical Specifications
AN-10BT-10B5 converter provides both an AUI connector and RJ-45 jack to facilitate direct connection from Thick Ethernet Host to 10BASE-T Ethernet network. The host can be a Thick Ethernet card, or a 10Base-5 repeater.
SQE function switch is used to enable Signal Quality Error function. This signal verifies that the collision detect circuit in the transceiver is operational. If the Host to which the transceiver is connected is a computer, set the SQE switch to ON. If the Host is a repeater (coaxial cable use), set the SQE switch to OFF.
InterfaceDB-15 male to 10 Base-5 |RJ-45 Jack to 10 Base-TCable length100m (328 feet) max. per UTP cable LEDsPower/Tx, Col, Link/Rcv, Jabber External Powernot neededOperating Temperature0 to 55C (0 - 131 F)Humidity10 to 90% (non-condensing)StandardIEEE 802.3 10Base-T/10Base-2 EMIMeets FCC Class A Subpart B of Part 15 Requirement TechniqueBasebandDimensions3/4" (H) x 1 3/8" (W) x 2 3/5"(D) 10Base-T RJ45 to 10Base-5 DB15M AUI Type Media Converter | Thick Ethernet Adapter to 10BT UTP RJ-45 Transceiver Technical Specifications
