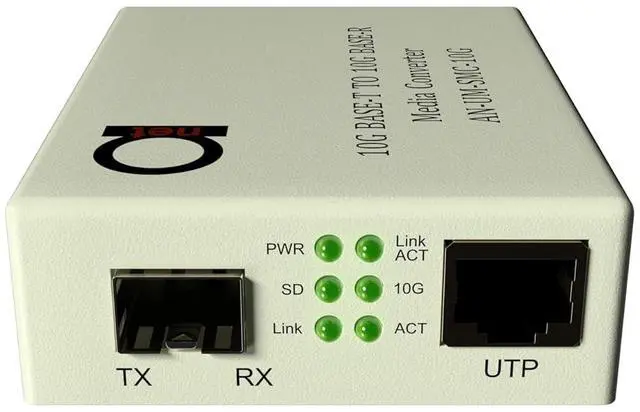

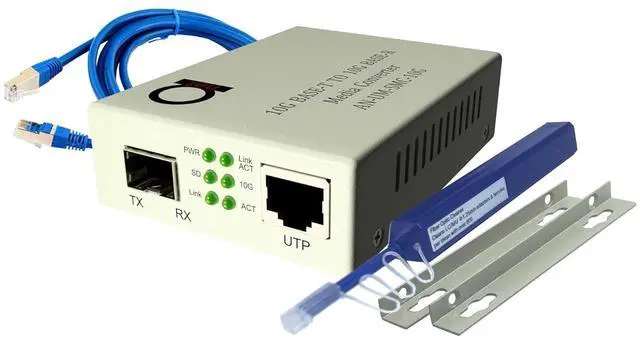

ADnet 10G Fiber to 10G Copper Ethernet Converter Open SFP+ Slot 10GBase-T to Base-R Includes Cat7 UTP Cable 10Gbps Optical Media Adapter
- 10G Base-R (Open SFP+ 10G slot) to 10G Base-T UTP Copper RJ-45 port Fiber Media Converter;
- Convert & Extend Copper Distance of Your High Speed 10gbps network connect far beyond your SFP+ fiber transceiver distance is the only limit now;
- Supports any SFP+ 10G transceiver of your choice, be it Single or Multimode, or even WDM single optical fiber type its pure Open SFP+ slot;
- Important!: 10G base-T RJ-45 UTP port will autoadapt (autosense) to 1000Base-T, 2.5G Base-T, 5G Base-T and 10G Base-T connection at user side, but fiber port slot accepts only 10G SFP+ (10 Gigabit) SFP+ transceivers only.

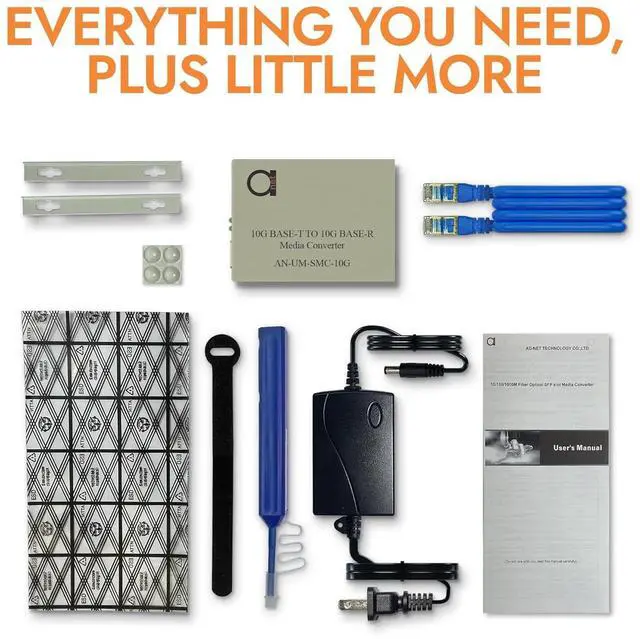

- You Get Free 1m (3.28 ft.) UTP Cat7 (10G Network Ready) UTP RJ-45 patchcord in set with every 10G Media Converter!
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
10G SFP+ to SFP+ fiber to fiber converter is a fiber-to-fiber type 10Gbps device that acts not only as fiber optic media converter or as a fiber optic repeater for long-haul transmission, but is an all in one solution to get 10GE fiber network to be Re-Amplificated, Re-Shaped and Re-Timed.
3R Repeater / Extender / Media converter for all your 10G fiber network mode & wavelength conversion needs.
Unit supports only 10G SFP+ type modules standard MSA compliant SFP transceivers!

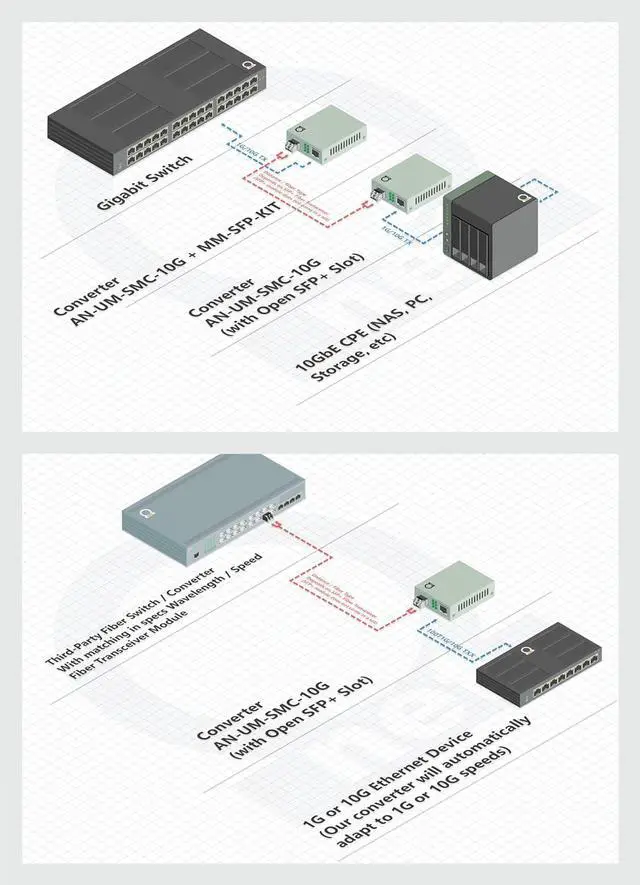

It is commonly used in network backbones (SAN, LAN, MAN, WAN). Supports various protocols such as SDH / SONET STM-64 / OC-192, 10G Fiber Channel, 10G Ethernet, etc. can be used in a telecommunications room, R&D lab, data center, etc. Supports any standard SFP+ 10G with 850nm, 1310nm / 1550nm / CWDM / DWDM optical wavelength conversion, 10GBase T copper modules also supported.
Product features
Jumbo frames support
Transparent signal transmission and low latency
The rate supports 8.5Gbps~11.7Gbps
Supports OEO 3R functions: signal amplification and regeneration, waveform shaping, clock retiming

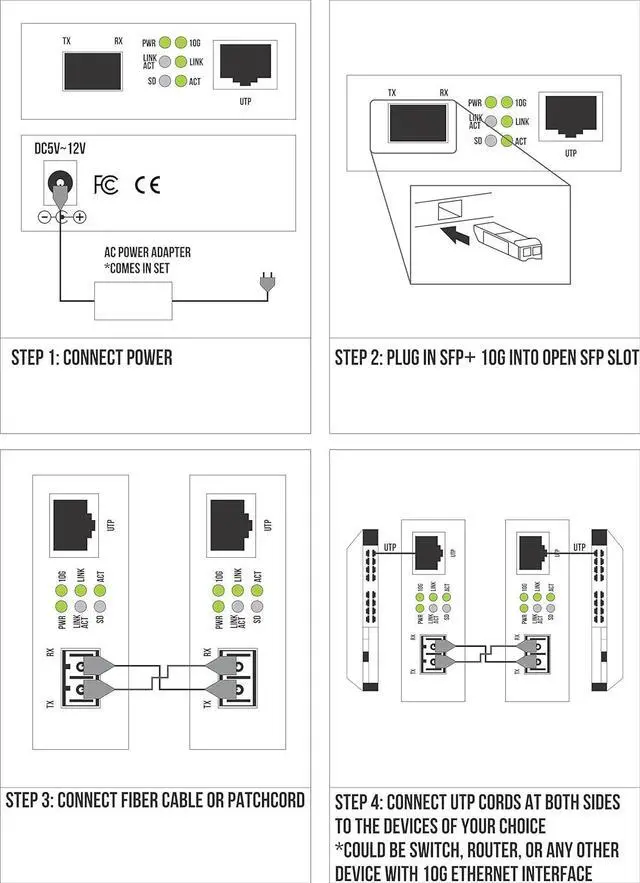

Easy installation - Plug & Play
Wide Range Protocol Support
8.5G Fiber Channel SONET OC-192, SDH STM-64 (9.95Gbps) 10G WAN (10Gbps) 10G LAN (10.31Gbps) OTN OTU-2 (G.709) (10.70Gbps) 10G LAN with 255/237 FEC coding (11.09Gbps) 10G Fiber Channel (11.32Gbps) 10G POS
Technical Parameters
Transmission rate:8.5Gb/s-11.7Gb/s
Interface Type: SFP+ standard slot

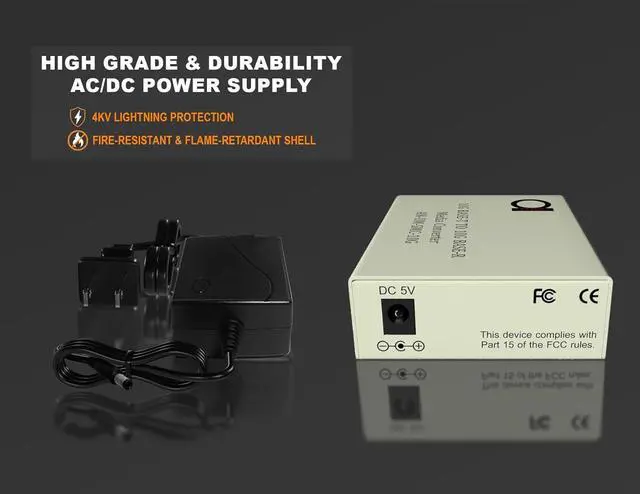

Power supply input voltage:DC 12V (AC adapter comes in set)
Power consumption:4W
Operating temperature:0-~60
Size (L*W*H):110mm(L)*100mm(W)*30mm
3R Repeater / Extender / Media converter for all your 10G fiber network mode & wavelength conversion needs.
Unit supports only 10G SFP+ type modules standard MSA compliant SFP transceivers!
It is commonly used in network backbones (SAN, LAN, MAN, WAN). Supports various protocols such as SDH / SONET STM-64 / OC-192, 10G Fiber Channel, 10G Ethernet, etc. can be used in a telecommunications room, R&D lab, data center, etc. Supports any standard SFP+ 10G with 850nm, 1310nm / 1550nm / CWDM / DWDM optical wavelength conversion, 10GBase T copper modules also supported.
Product features
Jumbo frames support
Transparent signal transmission and low latency
The rate supports 8.5Gbps~11.7Gbps
Supports OEO 3R functions: signal amplification and regeneration, waveform shaping, clock retiming
Easy installation - Plug & Play
Wide Range Protocol Support
8.5G Fiber Channel SONET OC-192, SDH STM-64 (9.95Gbps) 10G WAN (10Gbps) 10G LAN (10.31Gbps) OTN OTU-2 (G.709) (10.70Gbps) 10G LAN with 255/237 FEC coding (11.09Gbps) 10G Fiber Channel (11.32Gbps) 10G POS
Technical Parameters
Transmission rate:8.5Gb/s-11.7Gb/s
Interface Type: SFP+ standard slot
Power supply input voltage:DC 12V (AC adapter comes in set)
Power consumption:4W
Operating temperature:0-~60
Size (L*W*H):110mm(L)*100mm(W)*30mm
