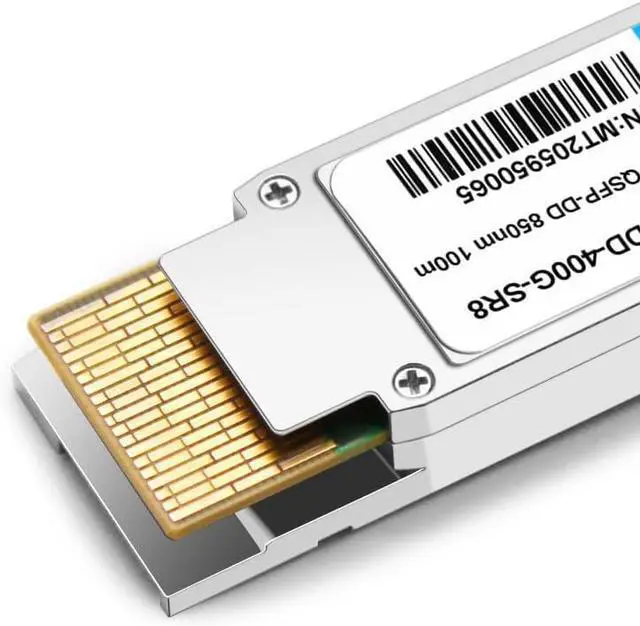

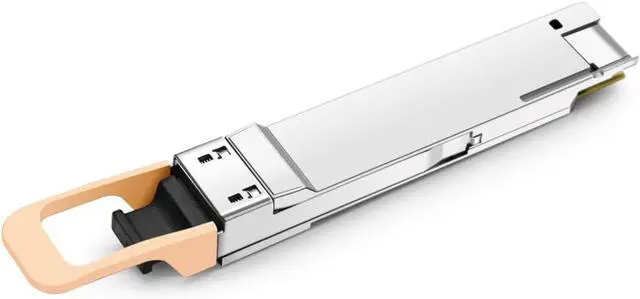

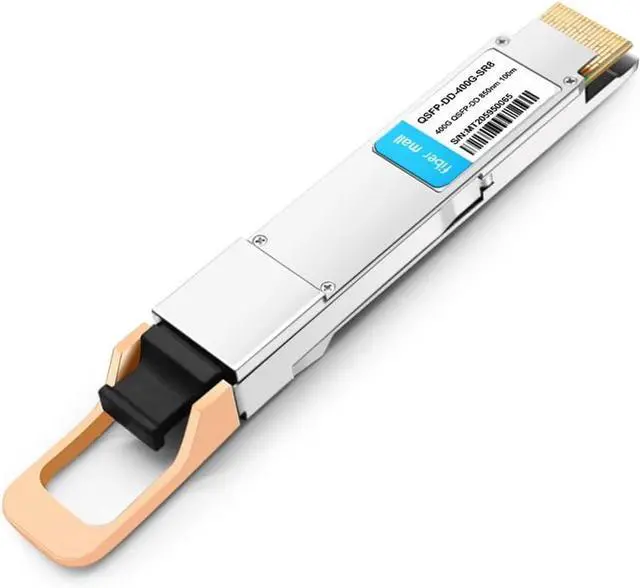

400G QSFP-DD PAM4 400GBASE-QSFP-DD SR8 Optical Transceiver Module Compatible with Arista Networks QDD-400G-SR8 QSFP-DD 850nm 100m OM4 MPO-16 DDM MMF
- 400G QSFP-DD SR8 Optical Transceiver Module Compatible With Arista Networks QDD-400G-SR8 400G QSFP-DD PAM4 850nm 100m OM4 MPO-16 DDM MMF
- 400GBASE-SR8 Transceiver Module Support 8x50G PAM4 retimed 400GAUI-8 electrical interface 400Gbps QSFP-DD SR8, 850nm wavelengths, MTP/MPO-16 Connectors, 70m on OM3 or 100m on OM4 with FEC, 0°C~+70°C, with DDM
- It is compliant to IEEE 802.3bs protocol and 400GAUI-8/CEI-56G-VSR-PAM4 standard.It can be used in data centers, high-performance computing networks, enterprise core and distribution layers, and service provider applications.
- Compliant with QSFP-DD MSA and IEEE 802.3cm 400GBASE-SR8 Ethernet transmission protocol built-in DSP chip Support 2× 200G-SR4 and 8× 50G-SR
- Compliant with QSFP-DD MSA CMIS Rev4.0, OIF 56G PAM4,Built-in Inphi DSP Chip, Max. Power Consumption 10W
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
The 400 Gigabit Ethernet signal is carried over eight wavelengths. Multiplexing and demultiplexing of the eight wavelengths are managed within the device. And it can Support 2× 200G-SR4 and 8× 50G-SR.
It is compliant to IEEE 802.3bs protocol and 400GAUI-8/CEI-56G-VSR-PAM4 standard.
400G QSFP-DD SR8 module interface with hot swappable, Plug and Play,supports multimode fiber (MMF) link lengths of up to 100m via MTP/MPO-16 connectors. It supports eight electrical interface channels that operate in 50G PAM4 coding mode to produce 400G (8x50G) data rates.
The multiplexing and demultiplexing of eight wavelengths are managed within the device and connect 400G signals from the server side (NIC) to the data center aggregation switch.
Optical communication products belong to industrial products,which require high stability and reliability.FIBERMALL adopts leading product design, first-class raw materials and production technology to ensure the first-class quality of our products, so that your project can be used, installed stably and reliably

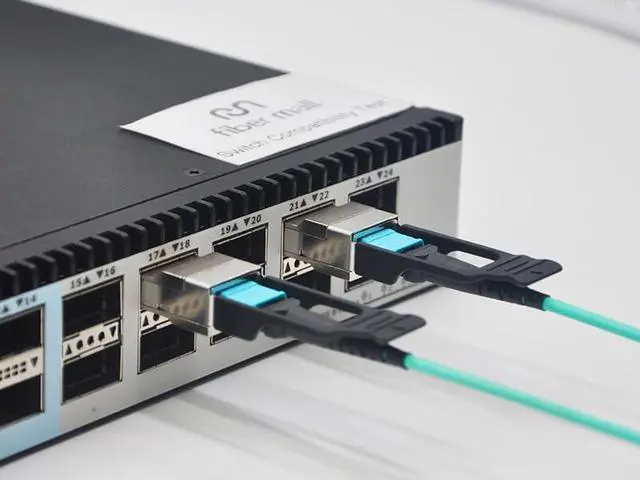

FiberMall Compatibility Testing Center has most of the mainstream brand switches and devices.Before shipment,We will code the optical modules or DAC/AOC cables,then test them on the corresponding switches to ensure that our products are 100% compatible with your system
400GBASE-QSFP-DD SR8 Module Transceiver PAM4 850nm 100m OM4 MPO-16 DDM MMF 400GBASE-QSFP-DD SR8 Module Transceiver 400G Connectivity for Data Center Rigorous Industrial ProductTesting 100% 3rd Party Compatible
It is compliant to IEEE 802.3bs protocol and 400GAUI-8/CEI-56G-VSR-PAM4 standard.
400G QSFP-DD SR8 module interface with hot swappable, Plug and Play,supports multimode fiber (MMF) link lengths of up to 100m via MTP/MPO-16 connectors. It supports eight electrical interface channels that operate in 50G PAM4 coding mode to produce 400G (8x50G) data rates.
The multiplexing and demultiplexing of eight wavelengths are managed within the device and connect 400G signals from the server side (NIC) to the data center aggregation switch.
Optical communication products belong to industrial products,which require high stability and reliability.FIBERMALL adopts leading product design, first-class raw materials and production technology to ensure the first-class quality of our products, so that your project can be used, installed stably and reliably
FiberMall Compatibility Testing Center has most of the mainstream brand switches and devices.Before shipment,We will code the optical modules or DAC/AOC cables,then test them on the corresponding switches to ensure that our products are 100% compatible with your system
400GBASE-QSFP-DD SR8 Module Transceiver PAM4 850nm 100m OM4 MPO-16 DDM MMF 400GBASE-QSFP-DD SR8 Module Transceiver 400G Connectivity for Data Center Rigorous Industrial ProductTesting 100% 3rd Party Compatible
